LM833DT Operational Amplifier: Pinout, Specification, and Datasheet
IC OPAMP AUDIO 15MHZ 8SO The LM833DT is a standard low?cost monolithic dual general?purpose operational amplifier employing Bipolar technology with innovative high?performance concepts for audio systems applications.
163
Jun 13, 2021
Esther
LM833DT
38In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.30899 | $0.31 |
| 10+ | $0.2915 | $2.92 |
| 100+ | $0.275 | $27.5 |
| 500+ | $0.25943 | $129.72 |
| 1000+ | $0.24475 | $244.75 |
Unit Price:$0.30899
Subtotal: $0.31
Quick Links

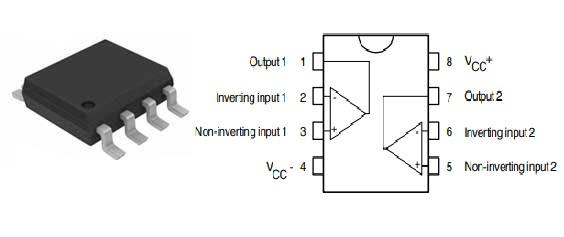

LM833DT Pinout
LM833DT CAD Model

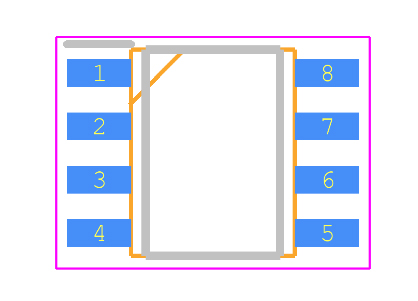

Footprint
3D Model
LM833DT Description
The LM833DT is a monolithic dual operational amplifier particularly well-suited to audio applications. It offers low voltage noise (4.5 nV/√Hz) and high-frequency performances (15 MHz gain-bandwidth product, 7 V/µs slew rate). In addition, the LM833 has very low distortion (0.002%) and excellent phase/gain margins.
LM833DT Features
• Low voltage noise: 4.5 nV/√Hz
• High gain bandwidth product: 15 MHz
• High slew rate: 7 V/µs
• Low distortion: 0.002%
• Excellent frequency stability
• ESD protection 2 kV
LM833DT Applications
• Audio systems
• Preamplification, filtering
Specifications
STMicroelectronics LM833DT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM833DT.
LM833DT Tech Specifications
LM833DT Tech Specifications
STMicroelectronics LM833DT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM833DT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 10 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Power Dissipation | 500mW | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | LM833 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 28V | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 4mA | |
| Nominal Supply Current | 8mA | |
| Power Dissipation | 500mW | |
| Max Supply Current | 8mA | |
| Slew Rate | 7V/μs | |
| Amplifier Type | Audio |
| Product Attribute | Attribute Value | |
|---|---|---|
| Common Mode Rejection Ratio | 80 dB | |
| Current - Input Bias | 300nA | |
| Voltage - Supply, Single/Dual (±) | 5V~30V ±2.5V~15V | |
| Supply Type | Dual | |
| Input Offset Voltage (Vos) | 5mV | |
| Voltage Gain | 100dB | |
| Voltage - Input Offset | 300μV | |
| Dual Supply Voltage | 12V | |
| Height | 1.65mm | |
| Length | 5mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LM833DT Schematic Diagram
LM833DT Package
LM833DT Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics LM833DT.
LM833DT Documents
LM833DT Documents
Download datasheets and manufacturer documentation for LM833DT
Datasheets
LM833
LM833DT-STMicroelectronics-datasheet-12528618.pdf
LM833DT-STMicroelectronics-datasheet-8399319.pdf
LM833DT-STMicroelectronics-datasheet-14138373.pdf
LM833DT-STMicroelectronics-datasheet-7624038.pdf
LM833DT-STMicroelectronics-datasheet-26455.pdf
LM833DT-STMicroelectronics-datasheet-114196.pdf
LM833DT Documents
Frequently Asked Questions
1.What are the features of the lm833 amplifier?
The LM833 is a monolithic dual operational amplifier particularly well suited for audio applications. It offers low voltage noise (4.5nV/√Hz) and high-frequency performances (15MHz Gain Bandwidth product, 7V/µs slew rate). In addition, the LM833 has also a very low distortion (0.002%) and excellent phase/gain margins.
2.Where are the pins on the lm833 IC?
Moreover, it can be used in pre-amplification, set-top boxes, microphone amplifiers, etc. LM-833 is shown in the figure below. 1. LM833 Pins LM 833 has a total of 8 pins, four on the left side of the IC and the remaining four on the right side. LM 833 all pins are given in the table shown below.
3.Which is better the lm833 or the TI?
Then there's the TI version that's most common nowadays, which to my ears wasn't much different from the LM833. The LM833 isn't rubbish, is a decent straight no-nonsense op-amp, and doesn't have any real noticeable omissions. It's clean, neutral and has reasonably good imaging, and stable in most circuits.
4.Which is better on semi lm833 or OPA2134?
My own LM833's are made by ON SEMI and they're excellent. Indeed just this afternoon I replaced an OPA2134 in the second 'gain' stage of one of my DIY ESP P06's with an ON SEMI LM833 and not only is it much quieter than the OPA2134, but the stereo imaging also seems more 'defined' as well.
