LM833N vs. JRC4580D in Angry Charlie guitar pedal
Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-DIP (0.300, 7.62mm) Audio -40°C~105°C LM833 IC OPAMP AUDIO 15MHZ 8DIP
The LM833N is a monolithic dual operational amplifier. This article will unlock more details about LM833. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
LM833N

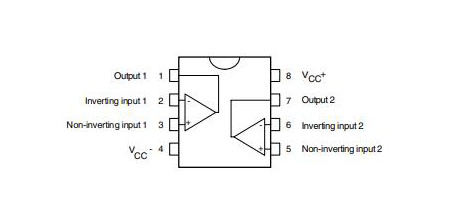

LM833N Symbol
LM833N Footprint
LM833N 3D Model
The LM833N is a monolithic dual operational amplifier particularly well-suited to audio applications. It offers low voltage noise (4.5 nV/√Hz) and high-frequency performances (15 MHz gain-bandwidth product, 7 V/µs slew rate). In addition, the LM833N has very low distortion (0.002%) and excellent phase/gain margins.
Also, The LM833N is a dual general-purpose operational amplifier with a strong focus on audio system performance. This dual amplifier IC employs novel circuit and processing techniques to provide low noise, high speed, and wide bandwidth without requiring additional external components or compromising stability. The LM833N is ideal for all preamp and high-level stages in PCM and HiFi systems since it is internally adjusted for all closed-loop gains. Industry-standard dual operating amplifiers are pin-for-pin compatible with the LM833N.
■ Low voltage noise: 4.5 nV/√Hz
■ High gain bandwidth product: 15 MHz
■ High slew rate: 7 V/µs
■ Low distortion: 0.002%
■ Excellent frequency stability
■ ESD protection 2 kV
■ Audio systems
■ Preamplification, filtering

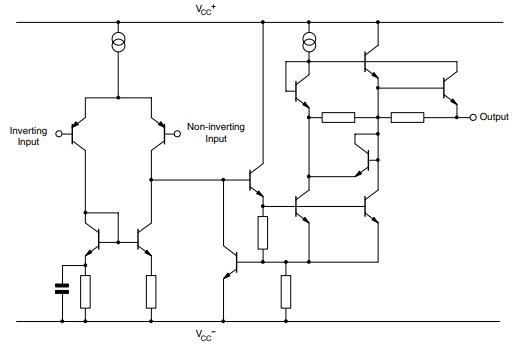

LM833N Typical Application Circuit
STMicroelectronics LM833N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM833N.
STMicroelectronics LM833N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LM833N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | LM833 | |
| Pin Count | 8 | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 4mA | |
| Nominal Supply Current | 8mA | |
| Power Dissipation | 500mW | |
| Slew Rate | 7V/μs | |
| Amplifier Type | Audio | |
| Common Mode Rejection Ratio | 80 dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Input Bias | 300nA | |
| Voltage - Supply, Single/Dual (±) | 5V~30V ±2.5V~15V | |
| Input Offset Voltage (Vos) | 5mV | |
| Voltage Gain | 100dB | |
| Voltage - Input Offset | 300μV | |
| Dual Supply Voltage | 9V | |
| Height | 3.3mm | |
| Length | 9.8mm | |
| Width | 7.1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
LM833N Package
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for LM833N
