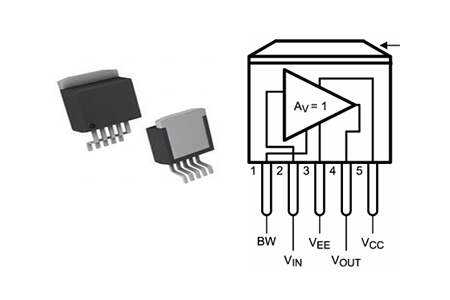

IC AMP CLASS AB MONO 500MW TO263 LME49600 is an audio buffer with high performance, high fidelity, and high current.
1740
Aug 27, 2021
Harold Betsy
DIY headphone amplifier LME49610, LME49600 | How to design circuit | Kicad tutorial
IC AMP CLASS AB MONO 500MW TO263
LME49600 is an audio buffer with high performance, high fidelity, and high current. This article mainly covers datasheet, pinout, applications, schematic, and other details about LME49600.
LME49600TS/NOPB
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.02667 | $9.03 |
| 10+ | $8.51572 | $85.16 |
| 100+ | $8.0337 | $803.37 |
| 500+ | $7.57896 | $3789.48 |
| 1000+ | $7.14996 | $7149.96 |

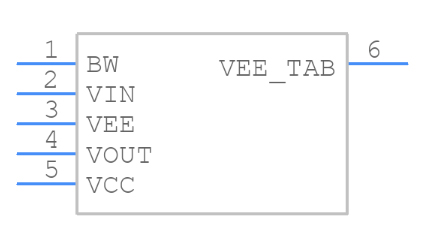

Symbol
Footprint
3D Model
The LME49600 is a high-performance, low-distortion high fidelity 250mA audio buffer. The LME49600 is designed for a wide range of applications. It can be used inside the feedback loop of op-amps. The LME49600 offers a pin-selectable bandwidth: a low current, 110MHz bandwidth mode that consumes 7.3mA and a wide 180MHz bandwidth mode that consumes 13.2mA.
Texas Instruments LME49600TS/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LME49600TS/NOPB.
Texas Instruments LME49600TS/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LME49600TS/NOPB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-263-6, D2Pak (5 Leads + Tab), TO-263BA | |
| Number of Pins | 5Pins | |
| Weight | 113.398093g | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 5Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Class AB | |
| Voltage - Supply | ±2.25V~18V | |
| Terminal Position | SINGLE | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 245 | |
| Number of Functions | 1Function | |
| Base Part Number | LME49600 | |
| Output Type | 1-Channel (Mono) | |
| Number of Channels | 1Channel | |
| Nominal Supply Current | 13.2mA | |
| Output Current | 250mA | |
| Slew Rate | 2000 V/μs | |
| Supply Type | Dual | |
| Input Offset Voltage (Vos) | 15V | |
| Bandwidth | 180000 kHz | |
| Gain Bandwidth Product | 180MHz | |
| Voltage Gain | 0.09dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Dual Supply Voltage | 18V | |
| Max Output Power | 500mW | |
| Min Dual Supply Voltage | 2.25V | |
| Dual Supply Voltage | 15V | |
| Input Bias Current | 5μA | |
| Max Output Power x Channels @ Load | 500mW x 1 @ 32 Ω | |
| Load Impedance | 32Ohm | |
| Features | Short-Circuit and Thermal Protection | |
| Height | 4.83mm | |
| Length | 10.16mm | |
| Width | 8.42mm | |
| Thickness | 4.58mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
Pin-selectable bandwidth and quiescent current
Pure fidelity and performance
Short circuit protection
Thermal shutdown
TO-263 surface-mount package
Headphone amplifier output drive stage
Line drivers
Low power audio amplifiers
High-current operational amplifier output stage
ATE Pin Drive Buffer
Power supply regulator
The LME49600 is designed for a wide range of applications. It can be used inside the feedback loop of op amps. The LME49600 offers a pin-selectable bandwidth: a low current, 110MHz bandwidth mode that consumes 7.3mA and a wide 180MHz bandwidth mode that consumes 13.2mA
Texas Instruments (TI) is a global semiconductor firm originating in 1958 and nowadays it has over 30,000 employees who design, conduct, and sell analog and product-differentiating embedded processing components in 35 countries. Aimed at changing the world of tech, TI has put great effort into becoming the solution provider coupled with a vision.
Download datasheets and manufacturer documentation for Texas Instruments LME49600TS/NOPB.
Download datasheets and manufacturer documentation for LME49600TS/NOPB
