LME49720 is an audio operational amplifier.This article mainly introduce its circuit, price, alternatives and other detailed informations about Texas instruments LME49720.
LME49720 Audio Operational Amplifier: Circuit, Price and Alternatives
IC AUDIO 2 CIRCUIT 8DIP LME49720 is an audio operational amplifier.This article mainly introduce its circuit, price, alternatives and other detailed informations about Texas instruments LME49720.
370
Jun 20, 2021
Joyce
LME49720NA/NOPB
4516In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.18216 | $9.18 |
| 10+ | $8.66241 | $86.62 |
| 100+ | $8.17209 | $817.21 |
| 500+ | $7.70952 | $3854.76 |
| 1000+ | $7.27313 | $7273.13 |
Unit Price:$9.18216
Subtotal: $9.18
Quick Links
LME49720 Description
The LME49720 is part of a series of ultra-low distortion, low network noise, and high conversion rate operational amplifiers. It is optimized and fully specified for high performance. It combines advanced cutting-edge process technology with the most advanced circuit design. LME49720 audio operational amplifiers can provide Excellent audio signal amplification to achieve excellent audio performance. The LME49720 combines extremely low voltage noise density (2.7nV/√Hz) with extremely low THD+N (0.00003%) to easily meet the most demanding audio applications.

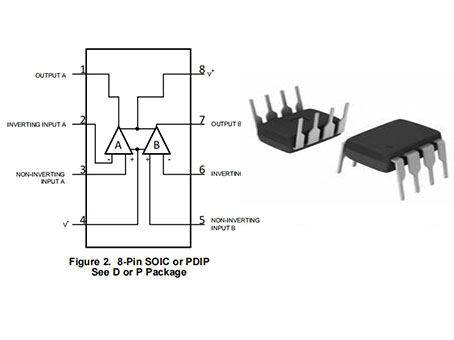

LME49720 Pinout
LME49720 CAD Model

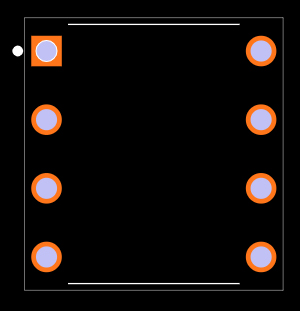

Footprint

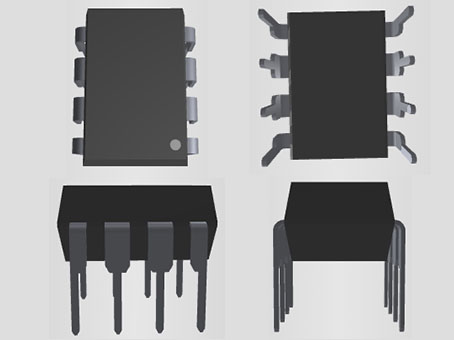

3D Model
LME49720 Features
● Easily Drives 600ΩLoads
● Optimized for Excellent Audio Signal Fidelity
● Output Short Circuit Protection
● PSRR and CMRR Exceed 120dB (typ)
● Metal Can Packages(SOIC, PDIP, TO-99)
Specifications
Texas Instruments LME49720NA/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LME49720NA/NOPB.
LME49720NA/NOPB Tech Specifications
LME49720NA/NOPB Tech Specifications
Texas Instruments LME49720NA/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LME49720NA/NOPB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Number of Elements | 2 Elements | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Base Part Number | LME49720 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 17V | |
| Operating Supply Current | 10mA | |
| Nominal Supply Current | 10mA | |
| Output Current | 26mA | |
| Slew Rate | 20V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | Audio | |
| Common Mode Rejection Ratio | 110 dB | |
| Current - Input Bias | 10nA | |
| Voltage - Supply, Single/Dual (±) | ±2.5V~17V | |
| Output Current per Channel | 26mA | |
| Supply Type | Dual | |
| Input Offset Voltage (Vos) | 100μV | |
| Gain Bandwidth Product | 55MHz | |
| Neg Supply Voltage-Nom (Vsup) | -5V | |
| Unity Gain BW-Nom | 55000 kHz | |
| Voltage Gain | 140dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supply Rejection Ratio (PSRR) | 110dB | |
| Low-Offset | YES | |
| Frequency Compensation | YES | |
| Low-Bias | NO | |
| Micropower | NO | |
| Programmable Power | NO | |
| Dual Supply Voltage | 15V | |
| Wideband | NO | |
| Input Offset Current-Max (IIO) | 0.000065μA | |
| Load Impedance | 2kOhm | |
| Height | 5.08mm | |
| Length | 9.81mm | |
| Width | 6.35mm | |
| Thickness | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

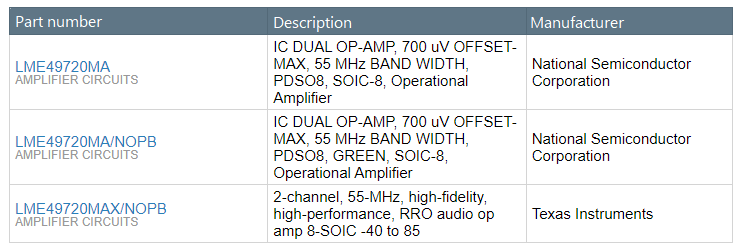

LME49720 Alternatives
LME49720 Applications
● High Fidelity Multimedia
● High Fidelity Active Filters
● High Fidelity Preamplifiers
● High Performance Line Drivers
● State of the Art Phono Pre Amps
● High Performance Line Receivers.
● High Performance Professional Audio
● Super High Quality Audio Amplification
● High Fidelity Equalization and Crossover Networks series

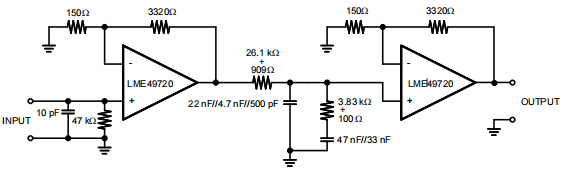

LME49720 Typical Application
Passively Equalized RIAA Phono Preamplifier

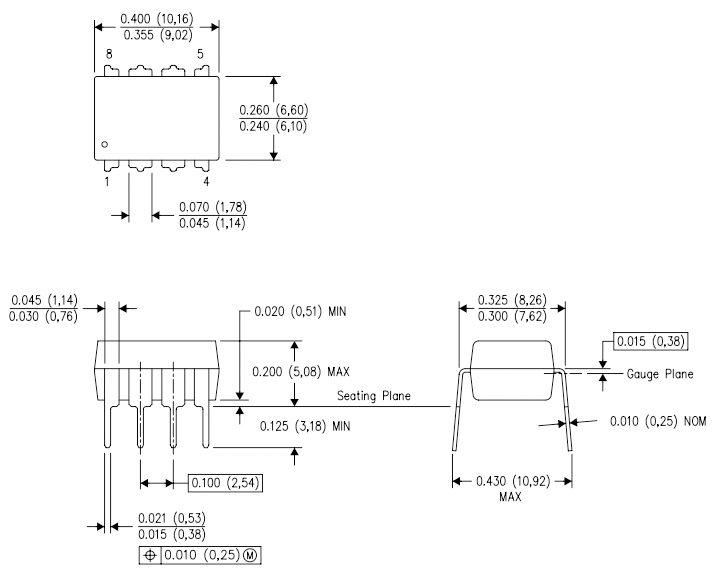

LME49720 Package
LME49720 Circuits

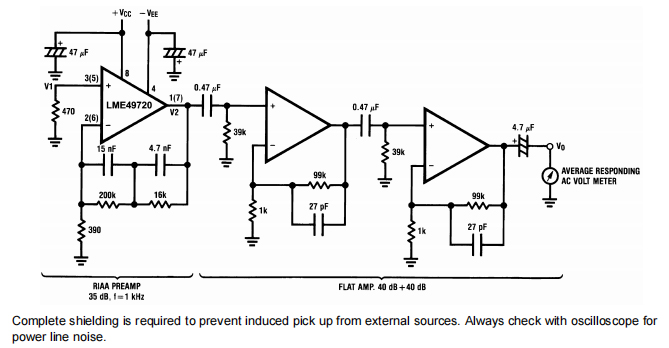

Noise Measurement Circuit

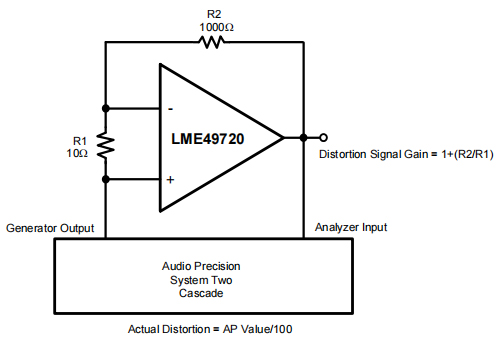

THD+N and IMD Distortion Test Circuit
LME49720 Manufacturer
Texas Instruments (TI) is an American technology company headquartered in Dallas, Texas, which designs and manufactures semiconductors and various integrated circuits, and sells them to electronic designers and manufacturers worldwide. It is one of the top 10 semiconductor companies in global sales. The company focuses on the development of analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and educational technology products, including calculators, microcontrollers and multi-core processors. As of 2016, the company has 45,000 patents worldwide.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments LME49720NA/NOPB.
LME49720NA/NOPB Documents
LME49720NA/NOPB Documents
Download datasheets and manufacturer documentation for LME49720NA/NOPB
Datasheets
LME49720NA-NOPB-Texas-Instruments-datasheet-32592311.pdf
NOPB-Texas-Instruments-datasheet-10848032.pdf
NOPB-Texas-Instruments-datasheet-5388412.pdf
NOPB-National-Semiconductor-datasheet-9818030.pdf
PCN Obsolescence/ EOL
Multiple Devices 28/Sep/2015
PCN Design/Specification
Mold Compound Update 04/Dec/2014
PCN Assembly/Origin
Mult Devices Wafer Site 09/Mar/2018
PCN Part Status Change
Reinstate Parts 28/Apr/2016
Frequently Asked Questions
1.Which operation is an upgraded version, LME49860 OP-AMP or LME49720 OP-AMP? Which is better?
LME49720 is better. It has a high conversion rate of ±20V/μs, and an output current capability of ±26mA. In addition, the output stage with maximum dynamic range drives a 2kΩ load to within 1V of any power supply voltage, and when driving a 600Ω load, it drives within 1.4V. LME49720 CMRR (120dB), PSRR (120dB) and VOS (0.1mV) make the amplifier perform excellent operational amplifier DC performance. LME49720 adopts SOIC, PDIP, TO-99 packaging process.
2.Can LM4562/LME49720/LME49722/LME49860 be directly replaced?
Yes, they can.
3.Can OPA2107 and LME49720 be interchangeable?
The two are interchangeable. The performance is good, but the style is different. It depends on you.
4.What’s the difference between LME49720 and LME49860?
The LME49720 output stage is optimized for supply voltages under +-17 volts. The LME49860 is optimized for +-14.5 to 22 volts. The LM4562 is similar to the LME49720 except it's in a metal case and has better heat dissipation and drives 600 ohms effortlessly.
FAQ
1.Which operation is an upgraded version, LME49860 OP-AMP or LME49720 OP-AMP? Which is better?
LME49720 is better. It has a high conversion rate of ±20V/μs, and an output current capability of ±26mA. In addition, the output stage with maximum dynamic range drives a 2kΩ load to within 1V of any power supply voltage, and when driving a 600Ω load, it drives within 1.4V. LME49720 CMRR (120dB), PSRR (120dB) and VOS (0.1mV) make the amplifier perform excellent operational amplifier DC performance. LME49720 adopts SOIC, PDIP, TO-99 packaging process.
2.Can LM4562/LME49720/LME49722/LME49860 be directly replaced?
Yes, they can.
3.Can OPA2107 and LME49720 be interchangeable?
The two are interchangeable. The performance is good, but the style is different. It depends on you.
4.What’s the difference between LME49720 and LME49860?
The LME49720 output stage is optimized for supply voltages under +-17 volts. The LME49860 is optimized for +-14.5 to 22 volts. The LM4562 is similar to the LME49720 except it's in a metal case and has better heat dissipation and drives 600 ohms effortlessly.
