IC HALF-BRIDGE DRIVER GAN 9QFM
The LMG5200 is a 80-V, 10-A driver plus GaN half-bridge power stage,This article mainly introduces pinout, application, features, and other detailed information about Texas Instruments LMG5200.
LMG5200MOFT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $15.08521 | $15.09 |
| 10+ | $14.23133 | $142.31 |
| 100+ | $13.42578 | $1342.58 |
| 500+ | $12.66583 | $6332.92 |
| 1000+ | $11.9489 | $11948.9 |

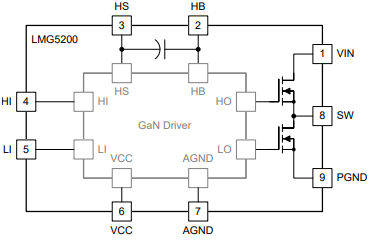

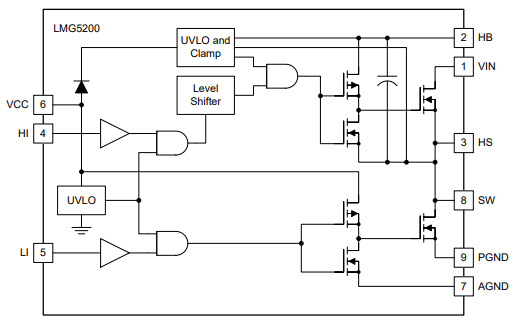

The LMG5200 is a 80-V, 10-A driver plus GaN half-bridge power stage, provides an integrated power stage solution using enhancement-mode Gallium Nitride (GaN) FETs. The device consists of two 80-V GaN FETs driven by one high-frequency GaN FET driver in a half-bridge configuration.

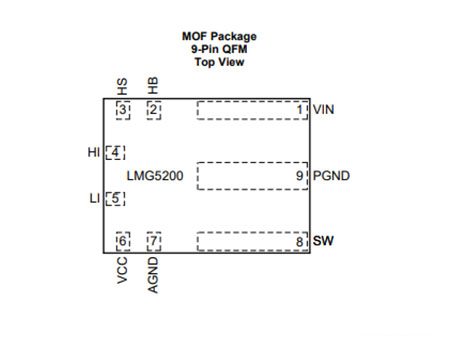

Pinout

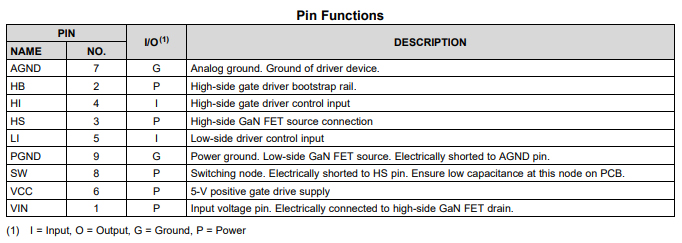

Pin Functions

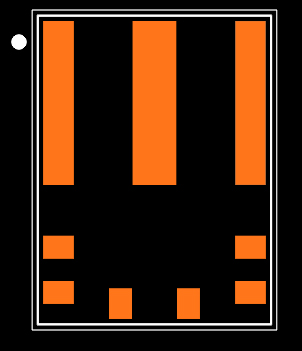

Footprint
• Integrated 15-mΩ GaN FETs and Driver
• 80-V Continuous, 100-V Pulsed Voltage Rating
• Package Optimized for Easy PCB Layout,Eliminating Need for Underfill, Creepage, and Clearance Requirements
• Very Low Common Source Inductance to Ensure High Slew Rate Switching Without Causing Excessive Ringing in Hard-Switched Topologies
• Ideal for Isolated and Non-isolated Applications
• Gate Driver Capable of up to 10 MHz Switching
• Internal Bootstrap Supply Voltage Clamping to Prevent GaN FET Overdrive
• Supply Rail Undervoltage Lockout Protection
• Excellent Propagation Delay (29.5 ns Typical) and Matching (2 ns Typical)
• Low Power Consumption
Texas Instruments LMG5200MOFT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LMG5200MOFT.
Texas Instruments LMG5200MOFT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LMG5200MOFT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 9-SMD Module | |
| Surface Mount | YES | |
| Number of Pins | 9Pins | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 9Terminations | |
| Applications | Synchronous Buck Converters |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 4.75V~5.25V | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 1mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | LMG5200 | |
| Supply Voltage-Max (Vsup) | 5.25V | |
| Supply Voltage-Min (Vsup) | 4.75V | |
| Number of Channels | 1Channel | |
| Interface | Logic |
| Product Attribute | Attribute Value | |
|---|---|---|
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Output Configuration | Half Bridge | |
| Voltage - Load | 80V | |
| Fault Protection | UVLO | |
| Rds On (Typ) | 15m Ω LS, 15m Ω HS | |
| Load Type | Inductive | |
| Features | Bootstrap Circuit | |
| Height | 2mm | |
| Length | 8mm | |
| Width | 6mm | |
| Thickness | 1.255mm | |
| RoHS Status | ROHS3 Compliant |
• Wide VIN Multi-MHz Synchronous Buck Converters
• Class D Amplifiers for Audio
• 48-V Point-of-Load (POL) Converters for Telecom, Industrial, and Enterprise Computing
• High Power Density Single- and Three-Phase Motor Drive
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Download datasheets and manufacturer documentation for Texas Instruments LMG5200MOFT.
Download datasheets and manufacturer documentation for LMG5200MOFT
