LMT01LPG Temperature Sensor: Pinout, Specification, and Datasheet

The LMT01 digital pulse count output and high accuracy over a wide temperature range allow pairing with any MCU without concern for integrated ADC quality or availability while minimizing software overhead. TI’s LMT01 achieves flat ±0.5°C accuracy with very fine resolution (0.0625°C) over a wide temperature range of -20°C to 90°C without system calibration or hardware/software compensation.

Unlike other digital IC temperature sensors, LMT01’s single wire interface is designed to directly interface with a GPIO or comparator input, thereby simplifying hardware implementation. Similarly, the LMT01's integrated EMI suppression and simple 2-pin architecture make it ideal for on-board and off-board temperature sensing. The LMT01 offers all the simplicity of analog NTC or PTC thermistors with the added benefits of a digital interface, wide specified performance, EMI immunity, and minimum processor resources.

  • High accuracy over –50°C to 150°C wide temperature range

  – –20°C to 90°C: ±0.5°C (max)

  – 90°C to 150°C: ±0.62°C (max)

  – –50°C to –20°C: ±0.7°C (max)

  • Precision digital temperature measurement simplified in a 2-Pin package

  • Single-wire pulse count digital output easily read with processor timer input

  • Number of output pulses is proportional to temperature with 0.0625°C resolution

  • Communication frequency: 88 kHz

  • Continuous conversion plus data-transmission period: 100 ms

  • Conversion current: 34 µA

  • Floating 2 V to 5.5 V (VP–VN) supply operation with Integrated EMI Immunity

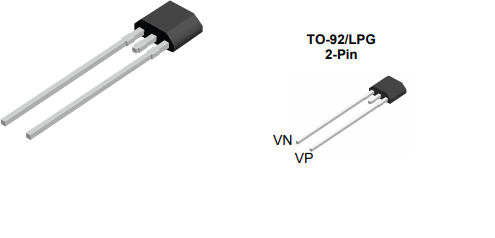

  • 2-Pin package offering TO-92/LPG (3.1 mm × 4 mm × 1.5 mm) – ½ the size of traditional TO-92

  • Digital output wired probes

  • White goods

  • HVAC

  • Power supplies

  • Industrial Internet of Things (IoT)

  • Automotive

  • Battery management

Symbol

Footprint

3D Model
