IC OPAMP GP 1.3MHZ RRO SOT23-5 LMV321 is an input/output rail-to-rail operational amplifier featuring low cost and low power. This article mainly covers pinout, datasheet, comparator, applications, and other details about LMV321 op-amp.
146
Sep 21, 2021
Violet Petty
µCurrent Opamp Divider Input Bypass Testing
IC OPAMP GP 1.3MHZ RRO SOT23-5
LMV321 is an input/output rail-to-rail operational amplifier featuring low cost and low power. This article mainly covers pinout, datasheet, comparator, applications, and other details about LMV321 op-amp. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome your RFQ!
LMV321ILT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.829 | $0.83 |
| 10+ | $0.78208 | $7.82 |
| 100+ | $0.73781 | $73.78 |
| 500+ | $0.69604 | $348.02 |
| 1000+ | $0.65665 | $656.65 |
The LMV321 is a low-cost, single-channel voltage feedback amplifier. The LMV321 is designed to work from a supply range of 2.7V to 5.5V (1.35% to 2.75) and needs just 130A of supply current. The input voltage ranges from 200mV to 800mV below the negative and positive rails respectively.

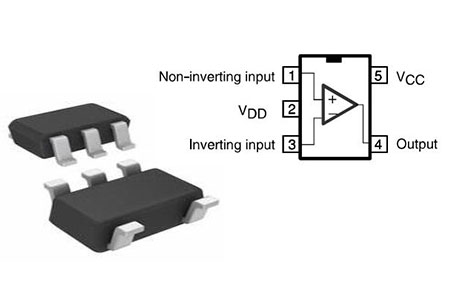

LMV321 Pinouta
LMV321 Symbol

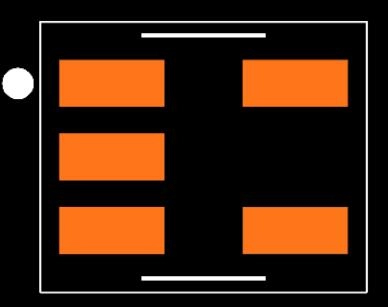

LMV321 Footprint
3D Model
LMV321 3D Model
Operating range from VCC = 2.7 to 6 V
Rail-to-rail input and output
Extended Vicm (VDD - 0.2 V to VCC + 0.2 V)
Low supply current (145 µA)
Gain bandwidth product (1 MHz)
ESD tolerance (2 kV)
STMicroelectronics LMV321ILT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LMV321ILT.
STMicroelectronics LMV321ILT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LMV321ILT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-74A, SOT-753 | |
| Number of Pins | 5Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Packing Method | TAPE AND REEL | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | LMV321 | |
| Pin Count | 5 | |
| Output Type | Rail-to-Rail | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 162μA | |
| Nominal Supply Current | 145μA | |
| Output Current | 46mA | |
| Slew Rate | 0.45V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 65 dB | |
| Current - Input Bias | 16nA | |
| Voltage - Supply, Single/Dual (±) | 2.7V~6V | |
| Output Current per Channel | 48mA | |
| Input Offset Voltage (Vos) | 100μV | |
| Unity Gain BW-Nom | 1300 kHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Gain | 97dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Supply Voltage Limit-Max | 7V | |
| Low-Bias | NO | |
| Micropower | YES | |
| Bias Current-Max (IIB) @25C | 0.063μA | |
| Programmable Power | NO | |
| Power | NO | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1.45mm | |
| Length | 3mm | |
| Width | 1.75mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Battery-powered electronic equipment
Personal medical care (glucose meters)
Laptops
Portable/battery-powered applications
Mobile communications, cell phones, pagers
ADC buffer
Active filter
Portable test instruments
Signal conditioning
Medical equipment
LMV321 Typical Application Diagram
The LMV321 is a cost-effective alternative for applications that require low power consumption and small footprints. Specification tables are provided for operation with 2.7 V and 5 V power supplies. This family of amplifiers is suited for portable, battery-operated devices because of the increased signal-to-noise performance and ultra-low quiescent current. Because the device's common-mode input range covers the ground, it can be used to test low-side current shunts. The ultra-small packages allow for proximity to the signal source on the PCB, which reduces noise pickup.
Weigh scales, comparators, adders, and subtractors are all possible applications for this IC. The LMV321 circuit is as follow:
LMV321Circuit
The non-inverting configuration of the LMV321 Op-amp is used. The op-gain amps are set to ten. We used a 1K resistor and a 9.1K resistor for, as you can see for the simulation we used a variable potentiometer, by varying the potentiometer we can change the input voltage and the output voltage will also change, to power the op-amp we used +12V and -12V supply, as the gain of the op-amp is 10 so if we provide 1V at the input we will get 10V at the output, as the simulated circuit
LMV321 Package Outline
STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivaled silicon and system expertise, strong manufacturing strength, IP portfolio, and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products have a positive effect in realizing today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics LMV321ILT.
Download datasheets and manufacturer documentation for LMV321ILT
