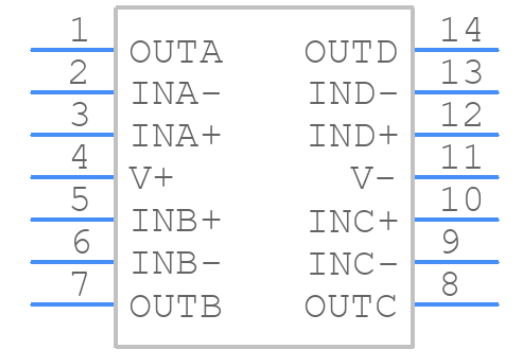

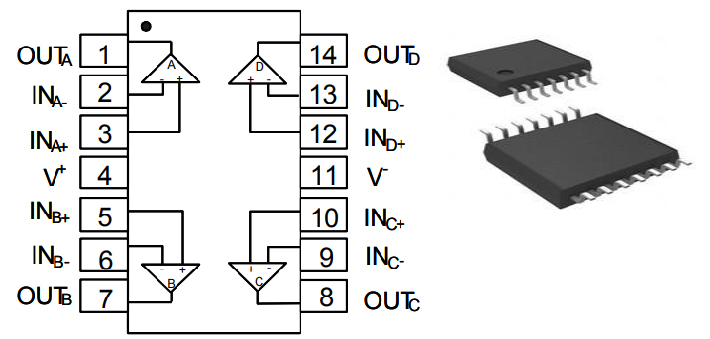

LMV324 Pinout

Pinout

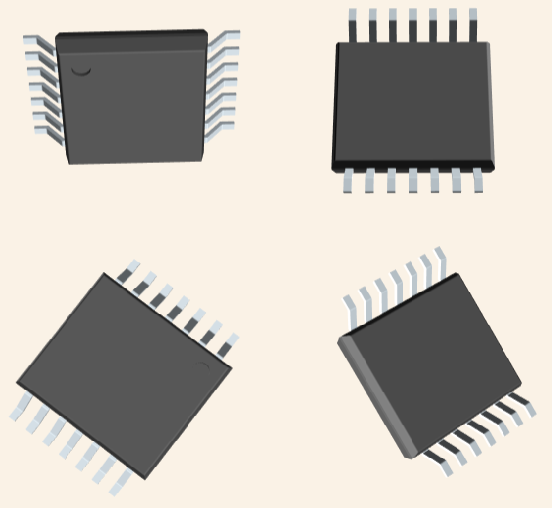

LMV324 CAD Model

PCB Symbol

PCB Footprint

3D Model

LMV324 Overview

The LMV324 is low voltage (2.7V to 5.5V) single, dual and quad operational amplifier. The LMV324 is designed to effectively reduce cost and space at low voltage levels. This device has the capability of rail-to-rail output swing and input common-mode voltage range includes ground. It can also achieve an efficient speed-to-power ratio, utilizing 1 MHz bandwidth and 1V/µs slew rate at a low supply current. Reducing noise pickup and increasing signal integrity can be achieved by placing the device close to the signal source. And the LMV324 is available in the SO-14 and TSSOP-14 package.

This article provides you with a basic overview of the LMV324 Rail-to-rail Output Operational Amplifier, including its pin descriptions, features and specifications, etc., to help you quickly understand what LMV324 is.

LMV324 Features

(For V+ = 5V and V- = 0V typical unless otherwise noted)

● Guaranteed 2.7V and 5V Performance

● Crossover Distortion Eliminated

● Operating Temperature Range (-40°C to +125°C)

● Gain-bandwidth Product 1 MHz

● Low Supply Current: 340µA Typ

● Rail-to-Rail Output Swing @ 10kΩ

   ◆ V+ -10 mV

   ◆ V- +10 mV

● Input Common Mode Voltage Range (-0.2 to V+ -0.8V)

● Manufactured in Standard CMOS Process

● SO-14 & TSSOP-14: Available in “Green” Molding Compound (No Br, Sb)

● Totally Lead-Free & Fully RoHS Compliant

● Halogen and Antimony Free. “Green” Device

Specifications

LMV324TSG-13 Tech Specifications

Diodes Incorporated LMV324TSG-13 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated LMV324TSG-13.

Product Attribute Attribute Value
Factory Lead Time18 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173, 4.40mm Width)
Number of Pins14Pins
Weight140.30179mg
Operating Temperature-40°C~85°C
PackagingDigi-Reel®
Published2017
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations14Terminations
ECCN CodeEAR99
Terminal FinishMatte Tin (Sn)
Packing MethodTAPE AND REEL
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)260
Product Attribute Attribute Value
Number of Functions4Functions
Supply Voltage2.7V
Terminal Pitch0.65mm
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberLMV324
Pin Count14
Output TypeRail-to-Rail
Power Supplies2.7/5V
Number of Channels4Channels
Number of Circuits4Circuits
Operating Supply Current340μA
Supply Current-Max1.1mA
Slew Rate1V/μs
ArchitectureVOLTAGE-FEEDBACK
Amplifier TypeGeneral Purpose
Common Mode Rejection Ratio50 dB
Current - Input Bias15nA
Voltage - Supply, Single/Dual (±)2.7V~5.5V ±1.35V~2.75V
Output Current per Channel90mA
Supply TypeSingle
Product Attribute Attribute Value
Input Offset Voltage (Vos)1.7mV
Unity Gain BW-Nom1000 kHz
Voltage Gain100dB
Average Bias Current-Max (IIB)0.5μA
Power Supply Rejection Ratio (PSRR)60dB
Low-OffsetNO
Frequency CompensationYES
Supply Voltage Limit-Max5.5V
Low-BiasNO
MicropowerYES
Bias Current-Max (IIB) @25C0.25μA
Programmable PowerNO
Height1.05mm
Length5.1mm
Width4.5mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

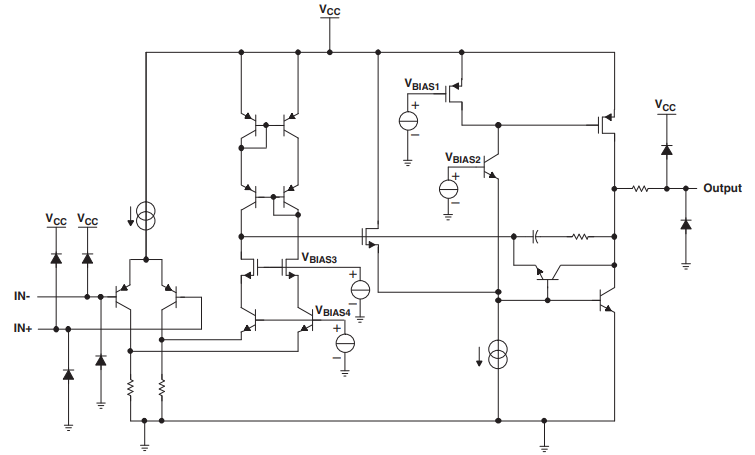

LMV324 Functional Block Diagram

Functional Block Diagram

LMV324 Equivalent

          Model number                 Manufacturer                                              Description
APX324TSG-13 Diodes Incorporated Operational Amplifier, 4 Func, 7000uV Offset-Max, CMOS, PDSO14, GREEN, TSSOP-14

LMV324 Applications

● Active Filters

● General Purpose Low Voltage Applications

● General Purpose Portable Devices

LMV324 Package

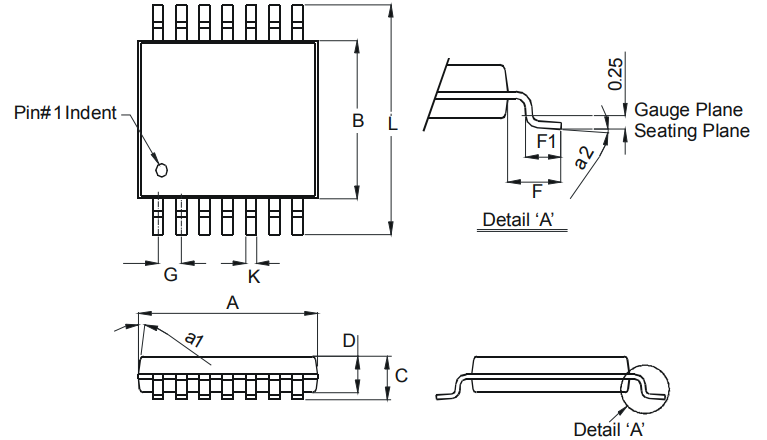

Package Outline TSSOP-14

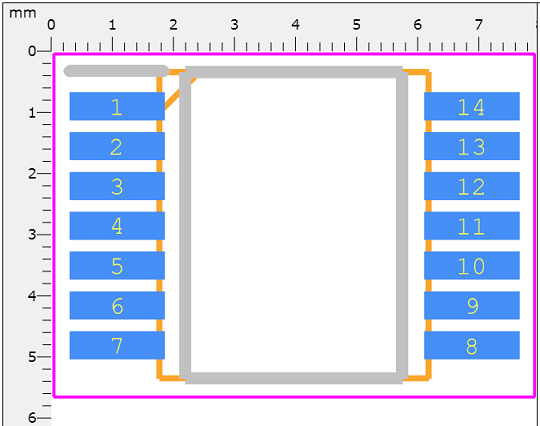

LMV324 Suggested Pad Layout

Suggested Pad Layout

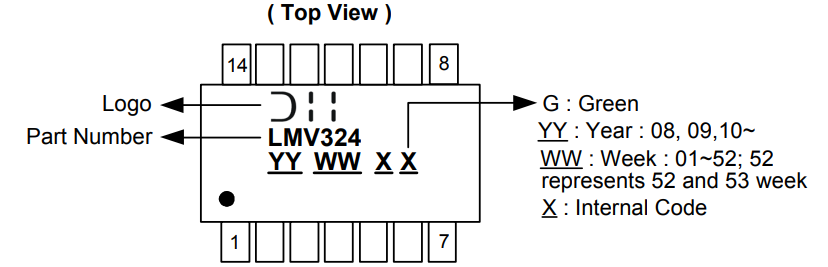

LMV324 Marking Information

Marking Information

LMV324 Manufacturer

Diodes Incorporated (Nasdaq: DIOD), a Standard and Poor's Smallcap 600 and Russell 3000 Index company, is a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. Diodes serves the consumer electronics, computing, communications, industrial, and automotive markets.

Diodes Incorporated is devoted to be the leading provider for large-volume and high-growing markets. With cutting-edge products of package technology, analog, discrete and mixed-signal products, Diodes Incorporated is capable to provide high-quality semiconductor products to meet the customers’ needs from walks of communications, computing, consumer electronics, automotive and industrial markets. Their product lines cover a wide range of application solutions together with 25 operations around the world which serve with examine, engineering, manufacturing and customer service.

Datasheet PDF

LMV324TSG-13 Documents

Download datasheets and manufacturer documentation for LMV324TSG-13

Frequently Asked Questions

What is the difference between LMV324 and LM324?
LMV324 is a low-voltage version of LM324. The function of LMV324 is equivalent to that of LM324. The difference between the two is that the voltage range is different. The power supply voltage range of LMV324 is 2.7V to 5.5V, and the rated voltage is 5.5V. The power supply voltage range of LM324 is 3V to 32V, and the rated voltage is 15V.
What is a Rail-to-Rail Operational Amplifier?
"Rail-to-rail" translates into Chinese as "rail-to-rail", rail-to-rail op amp, also known as full-scale op amp. The output amplitude of this type of op amp is very close to the positive and negative power supply voltage (generally only Tens of millivolts lower than the positive and negative supply voltage). For general op amps, for example, the most general-purpose μA741 op amps on the planet today, when powered by ±15V, their maximum output amplitude is 2~3V lower than ±15V. LM324 is powered by +15V power supply, and the maximum output amplitude is only 13.5V; this op amp is placed in a non-rail-to-rail op amp, and the output amplitude can be said to be relatively large.
What are the commonly used rail-to-rail op amps?
OPA333, OPA2333, LMV358 and LMV324 (note that only LMV358 and LMV324 are rail-to-rail operational amplifiers, while LM358 and LM324 are ordinary bipolar low-power operational amplifiers).
