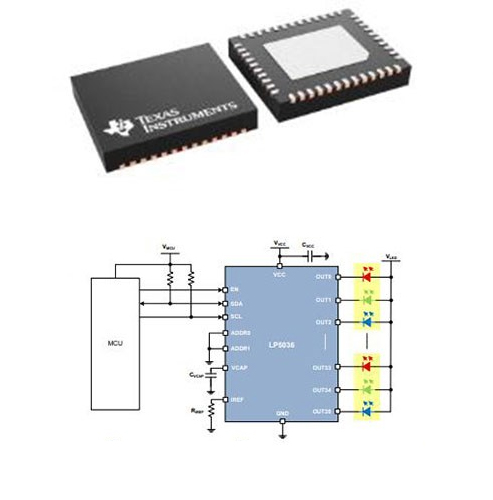

The LP5036RJVR device is a 36-channel constant current-sink LED driver. This passage is going to introduce LP5036RJVR from the perspectives of features, CAD models, and datasheets.
LP5036RJVR LED Display Driver:Circuit, Datasheet, and Pinout
The LP5036RJVR device is a 36-channel constant current-sink LED driver. This passage is going to introduce LP5036RJVR from the perspectives of features, CAD models, and datasheets.
93
Feb 22, 2022
Valerie Cooper
LP5036RJVR
21000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.78584 | $1.79 |
| 10+ | $1.68475 | $16.85 |
| 100+ | $1.58939 | $158.94 |
| 500+ | $1.49943 | $749.72 |
| 1000+ | $1.41455 | $1414.55 |
Unit Price:$1.78584
Subtotal: $1.79
Quick Links
LP5036RJVR Description
Utmel Electronics distributes the LP5036RJVR, a Texas Instruments product. It belongs to the LED category. It's used in a variety of fields, including automotive hybrid, electric, and powertrain systems. Defense and industrial aeronautics Data centers and enterprise computing are two types of enterprise systems. This part's main specifications are: 36-channel I2C constant current RGB LED driver 46-VQFN -40 to 125. It's also eco-friendly and RoHS-compliant (lead-free / RoHS-compliant).
LP5036RJVR Features
• Operating Voltage Range:
– VCC Range: 2.7 V to 5.5 V
– EN, SDA, and SCL Pins Compatible With 1.8-V, 3.3-V, and 5-V Power Rails
– Output Maximum Voltage: 6 V
• 36 Constant-Current Sinks With High Precision
– 25.5 mA Maximum per Channel When VCC in Full Range
– 35 mA Maximum per Channel When VCC ≥ 3.3V
– Device-to-Device Error ±5%; Channel-to channel Error ±5%
• Ultralow Quiescent Current:
– Shutdown Mode: 1 µA (Maximum) When EN Low
– Power Saving Mode: 12 µA (Maximum) When EN High and All LEDs Off for > 30 ms
• Integrated 12-Bit, 29-kHz PWM Generator for Each Channel:
– Independent Color-Mixing Register Per Channel
– Independent Brightness-Control Register Per RGB LED Module
– Optional Logarithmic- or Linear-Scale Brightness Control
– Integrated 3-Phase-Shifting PWM Scheme
• 3 Programmable Banks (R, G, B) for Easy Software Control of Each Color
• 2 External Hardware Address Pins Allow Connecting up to 4 Devices
• Broadcast Slave Address Allows Configuring Multiple Devices Simultaneously
• Auto-Increment Allows Writing or Reading Consecutive Registers Within One Transmission
• Up to 400-kHz Fast-Mode I2C Speed
LP5036RJVR CAD Models
Symbol
Footprint

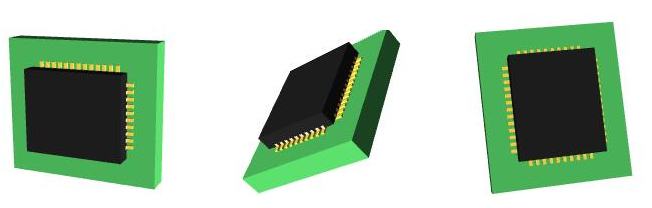

3D Models
LP5036RJVR Package
VQFN-46

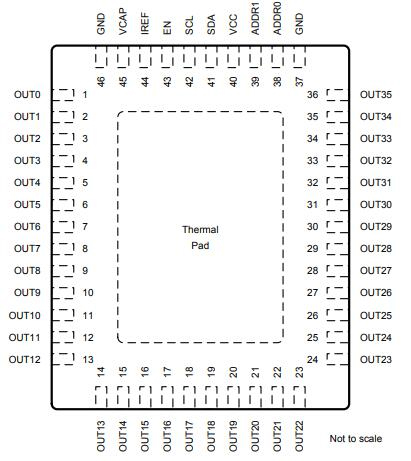

LP5036RJVR Pin Function
| NAME | NO. | I/O | DESCRIPTION |
| ADDR0 | 38 | - | I²C slave-address selection pin. This pin must not be left floating. |
| ADDR1 | 39 | - | I²C slave-address selection pin. This pin must not be left floating. |
| EN | 43 | I | Chip enable input pin |
| IREF | 44 | - | Output current-reference global-setting pin |
| NC | - | - | No internal connection |
| NC | - | - | No internal connection |
| NC | - | - | No internal connection |
| NC | - | - | No internal connection |
| NC | - | - | No internal connection |
| NC | - | - | No internal connection |
| OUT0 | 1 | O | Current sink output 0. If not used, this pin can be left floating. |
| OUT1 | 2 | O | Current sink output 1. If not used, this pin can be left floating. |
| OUT2 | 3 | O | Current sink output 2. If not used, this pin can be left floating. |
| OUT3 | 4 | O | Current sink output 3. If not used, this pin can be left floating. |
| OUT4 | 5 | O | Current sink output 4. If not used, this pin can be left floating. |
| OUT5 | 6 | O | Current sink output 5. If not used, this pin can be left floating. |
| OUT6 | 7 | O | Current sink output 6. If not used, this pin can be left floating. |
| OUT7 | 8 | O | Current sink output 7. If not used, this pin can be left floating. |
| OUT8 | 9 | O | Current sink output 8. If not used, this pin can be left floating. |
| OUT9 | 10 | O | Current sink output 9. If not used, this pin can be left floating. |
| OUT10 | 11 | O | Current sink output 10. If not used, this pin can be left floating. |
| OUT11 | 12 | O | Current sink output 11. If not used, this pin can be left floating. |
| OUT12 | 13 | O | Current sink output 12. If not used, this pin can be left floating. |
| OUT13 | 14 | O | Current sink output 13. If not used, this pin can be left floating. |
| OUT14 | 15 | O | Current sink output 14. If not used, this pin can be left floating. |
| OUT15 | 16 | O | Current sink output 15. If not used, this pin can be left floating. |
| OUT16 | 17 | O | Current sink output 16. If not used, this pin can be left floating. |
| OUT17 | 18 | O | Current sink output 17. If not used, this pin can be left floating. |
| OUT18 | 19 | O | Current sink output 18. If not used, this pin can be left floating. |
| OUT19 | 20 | O | Current sink output 19. If not used, this pin can be left floating. |
| OUT20 | 21 | O | Current sink output 20. If not used, this pin can be left floating. |
| OUT21 | 22 | O | Current sink output 21. If not used, this pin can be left floating. |
| OUT22 | 23 | O | Current sink output 22. If not used, this pin can be left floating. |
| OUT23 | 24 | O | Current sink output 23. If not used, this pin can be left floating. |
| OUT24 | 25 | O | Current sink output 24. If not used, this pin can be left floating. |
| OUT25 | 26 | O | Current sink output 25. If not used, this pin can be left floating. |
| OUT26 | 27 | O | Current sink output 26. If not used, this pin can be left floating. |
| OUT27 | 28 | O | Current sink output 27. If not used, this pin can be left floating. |
| OUT28 | 29 | O | Current sink output 28. If not used, this pin can be left floating. |
| OUT29 | 30 | O | Current sink output 29. If not used, this pin can be left floating. |
| OUT30 | 31 | O | Current sink output 30. If not used, this pin can be left floating. |
| OUT31 | 32 | O | Current sink output 31. If not used, this pin can be left floating. |
| OUT32 | 33 | O | Current sink output 32. If not used, this pin can be left floating. |
| OUT33 | 34 | O | Current sink output 33. If not used, this pin can be left floating. |
| OUT34 | 35 | O | Current sink output 34. If not used, this pin can be left floating. |
| OUT35 | 36 | O | Current sink output 35. If not used, this pin can be left floating. |
| SCL | 42 | I | I²C bus clock line. If not used, this pin must be connected to GND or VCC. |
| SDA | 41 | I/O | I²C bus data line. If not used, this pin must be connected to GND or VCC. |
| VCAP | 45 | - | Internal LDO output pin, this pin must be connected to a 1-µF capacitor to GND |
| VCC | 40 | I | Input power. |
| GND | 37 | - | The ground pin for the device. |
| GND | 46 | - | The ground pin for the device. |
| Thermal pad | GND | - | Exposed thermal pad also serves as a ground for the device |
LP5036RJVR Manufacturer
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and integrated circuits for electronic designers and manufacturers around the world. Based on sales volume, it is one of the top ten semiconductor companies in the world. Analog chips and embedded processors, which account for more than 80% of the company's revenue, are the company's main focus. TI also makes calculators, microcontrollers, and multi-core processors, as well as TI digital light processing technology and education technology. As of 2016, the company had 45,000 patents worldwide.

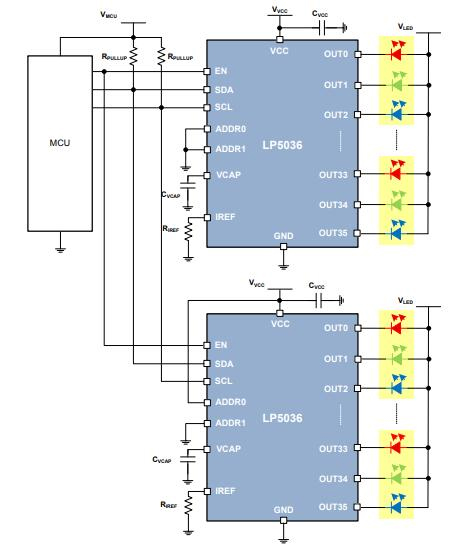

LP5036RJVR Application Circuit

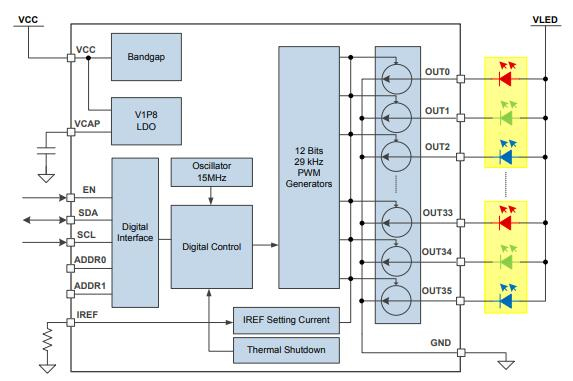

LP5036RJVR Functional Block Diagram
Specifications
LP5036RJVR Tech Specifications
LP5036RJVR Tech Specifications
Texas Instruments LP5036RJVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LP5036RJVR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 46-VFQFN Exposed Pad | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 46Terminations | |
| Type | Linear | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Applications | LED Lighting | |
| Terminal Position | QUAD | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V | |
| Frequency | 29kHz | |
| Base Part Number | LP5036 | |
| JESD-30 Code | R-PQCC-N46 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Outputs | 36Outputs | |
| Voltage - Output | 0V~5.5V | |
| Internal Switch(s) | No | |
| fmax-Min | 0.4 MHz | |
| Number of Segments | 36Segments | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Supply (Min) | 2.7V | |
| Multiplexed Display Capability | NO | |
| Data Input Mode | SERIAL | |
| RoHS Status | ROHS3 Compliant |
Frequently Asked Questions
What’s the dimensions of LP5036RJVR?
Height:1mm/Length:6mm/Thickness: 900 µm/Width:5mm
Where is LP5036RJVR made by?
It is made by an American technology company--Texas Instruments Incorporated.
How many pins does LP5036RJVR have?
It has 46 pins.
Is it possible for LP5036RJVR to be a possible alternative to battery-powered terminal devices?
The LP503x device features an automatic power-saving mode for ultra-low static current. When all channels are turned off for 30ms, the total power consumption of the device drops to 10µA, making the LP503x device A possible alternative to battery-powered terminal devices.
Can LP5036RJVR be operated in the temperature of 100℃?
Yes, its suitable operating temperature is between -45℃ and +125℃.
FAQ
What’s the dimensions of LP5036RJVR?
Height:1mm/Length:6mm/Thickness: 900 µm/Width:5mm
Where is LP5036RJVR made by?
It is made by an American technology company--Texas Instruments Incorporated.
How many pins does LP5036RJVR have?
It has 46 pins.
Is it possible for LP5036RJVR to be a possible alternative to battery-powered terminal devices?
The LP503x device features an automatic power-saving mode for ultra-low static current. When all channels are turned off for 30ms, the total power consumption of the device drops to 10µA, making the LP503x device A possible alternative to battery-powered terminal devices.
Can LP5036RJVR be operated in the temperature of 100℃?
Yes, its suitable operating temperature is between -45℃ and +125℃.
