PMIC - Voltage Regulators - Linear 6-WDFN Exposed Pad -40°C~125°C TJ LP5912 Over Temperature, Reverse Polarity, Short Circuit 500mA 80dB ~ 40db (100Hz ~ 100kHz) 30μA IC REG LINEAR 3.3V 500MA 6SON
37
Dec 14, 2021
Blair Victor
Linear and LDO regulators and Switch Mode Power Supply Tutorial
PMIC - Voltage Regulators - Linear 6-WDFN Exposed Pad -40°C~125°C TJ LP5912 Over Temperature, Reverse Polarity, Short Circuit 500mA 80dB ~ 40db (100Hz ~ 100kHz) 30μA IC REG LINEAR 3.3V 500MA 6SON

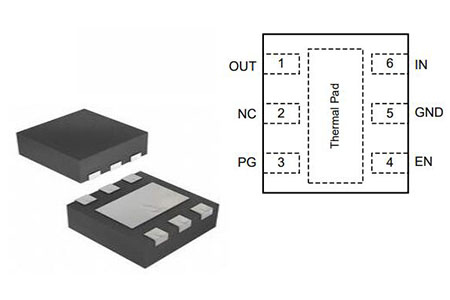

The LP5912-3.3DRVT is a 500mA ultra-low noise LDO6 pin WSON package. This article is going to introduce guidance details about LP5912-3.3DRVT LDO regulators. Furthermore, there is a huge range of LP5912-3.3DRVT in stock. Welcome your RFQ!
LP5912-3.3DRVT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.44229 | $1.44 |
| 10+ | $1.36065 | $13.61 |
| 100+ | $1.28363 | $128.36 |
| 500+ | $1.21098 | $605.49 |
| 1000+ | $1.14243 | $1142.43 |
The LP5912-3.3DRVT is a WSON package with a 500mA extremely low noise LDO 6 pin. Low noise, high PSRR, low quiescent current, and low line and load transient response are all features of this LDO which are designed to fulfill the needs of RF and analog circuits. It has class-leading noise performance and the ability to place output capacitance remotely without the use of a noise bypass capacitor. This gadget is made to function with a ceramic capacitor with a 1F input and a 1F output (no separate noise bypass capacitor required). It's found in camera modules, sensors, Hi-Fi audio radio transceivers, PLL/synthesizers, clocks, and noise-sensitive medium-current applications.

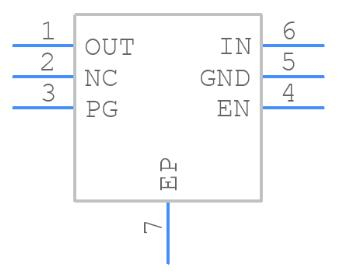

LP5912-3.3DRVT Symbol

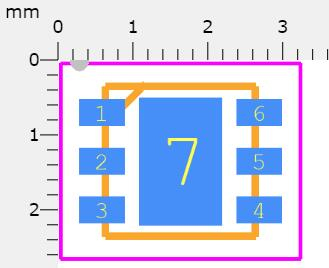

LP5912-3.3DRVT Footprint

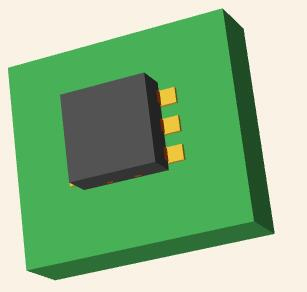

LP5912-3.3DRVT 3D Model
Texas Instruments LP5912-3.3DRVT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LP5912-3.3DRVT.

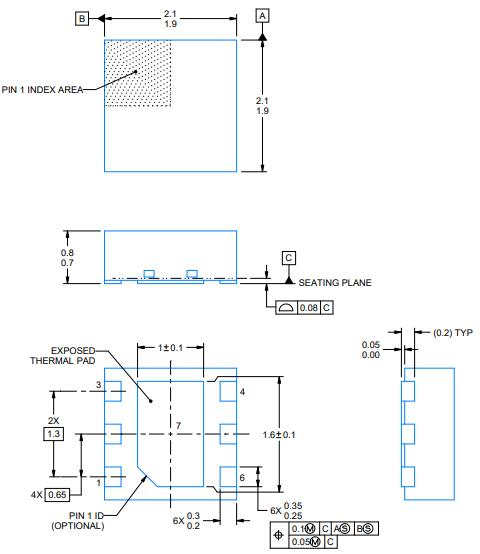

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-WDFN Exposed Pad | |
| Number of Pins | 6Pins | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | NO LEAD | |
| Number of Functions | 1Function | |
| Base Part Number | LP5912 | |
| Current - Supply (Max) | 600μA | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 6.5V | |
| Output Voltage | 3.3V | |
| Output Type | Fixed | |
| Output Configuration | Positive | |
| Quiescent Current | 30μA | |
| Control Features | Enable, Power Good, Soft Start | |
| Output Voltage 1 | 3.3V | |
| Input Voltage (Min) | 3.8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Regulators | 1Regulator | |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | |
| Current - Quiescent (Iq) | 55μA | |
| Voltage Dropout (Max) | 0.18V @ 500mA | |
| PSRR | 80dB ~ 40db (100Hz ~ 100kHz) | |
| Dropout Voltage | 950mV | |
| Dropout Voltage1-Nom | 0.15V | |
| Height | 800μm | |
| Length | 2mm | |
| Width | 2mm | |
| Thickness | 750μm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

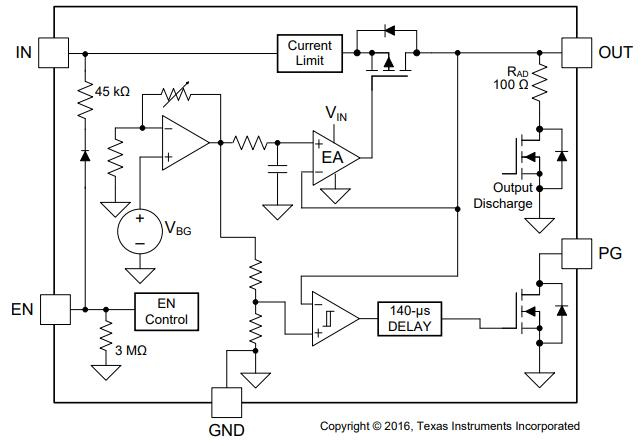

Input Voltage Range: 1.6 V to 6.5 V
Output Voltage Range: 0.8 V to 5.5 V
Output Current up to 500 mA
Low Output -Voltage Noise: 12 µVRMS Typical
PSRR at 1 kHz: 75 dB Typical
Output Voltage Tolerance (VOUT ≥ 3.3 V): ±2%
Low IQ (Enabled, No Load ): 30 µA Typical
Low Dropout (VOUT ≥ 3.3 V): 95 mV Typical at 500-mA Load
Stable With 1-µF Ceramic Input and Output Capacitors
Thermal-Overload and Short-Circuit Protection
Reverse Current Protection
No Noise Bypass Capacitor Required
Output Automatic Discharge for Fast Turnoff
Power-Good Output With 140-µs Typical Delay
Internal Soft-Start to Limit the In-rush Current
–40°C to +125°C Operating Junction Temperature Range
Camera Modules
Sensors
HiFi Audio Radio Transceivers
PLL/Synthesizer, Clocking
Medium-Current, Noise-Sensitive Applications

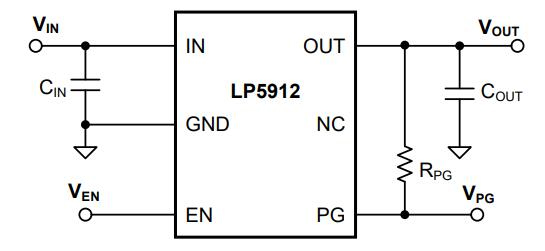

LP5912-3.3DRVT Application Circuit
| Texas Instruments LP5912-1.8DRVT | Texas Instruments LP5912-2.8DRVT | onsemi NCP693DMN10TCG | Microchip MIC5308-1.8YMT-TR | |
| Price @ 1,000 | USD 0.894 | USD 0.744 | USD 0.554 | USD 0.661 |
| Authorized Distributors | 3 | 5 | 2 | 11 |
| Number of Pins | 6 | 6 | 6 | 6 |
| Number of Outputs | - | - | 1 | - |
| Max Output Current | - | - | 1 A | 150 mA |
| Min Input Voltage | 1.6 V | 1.6 V | 1.6 V | 1.6 V |
| Max Input Voltage | 6.5 V | 6.5 V | 6.5 V | 5.5 V |
| Min Output Voltage | - | - | - | 1.8 V |
| Accuracy | - | - | 1% | - |
| Dropout Voltage | 170 mV | 150 mV | 1 V | 45 mV |
| Power Supply Rejection Ratio (PSRR) | - | - | - | - |
Texas Instruments Incorporated (TI) is an American technology company headquartered in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, microcontrollers, and multi-core processors. The company holds 45,000 patents worldwide as of 2016.
Download datasheets and manufacturer documentation for LP5912-3.3DRVT
