Batteries Non-Rechargeable (Primary) ALKALINE MANGANESE BATTERIES
LR41 battery is a small, button/coin cell battery often used in digital thermometers, wristwatches, toys, small LED flashlights, wearable electronics, remote controls, and similar devices. This article is going to introduce detailed information about the LR41 battery.
LR41
The LR41 battery is an alkaline button cell battery. The LR41 battery has a standard voltage of 1.5V and a size of 7.9mm in diameter by 3.6mm in height. LR41's have an operating temperature ranging from 0°C- 60°C, while the optimal temperature for an LR41 battery is 20°C.
The LR41 battery can be utilized in many devices such as watches, electronic toys, remote controls, thermometers, and calculators. The most common use for the LR41 batteries is for use as thermometer batteries and thermometer battery replacements.
LR41 battery equivalents are also referred to as SR41, G3, LR4192, LR736, A63, AG3, SR41SW, 325, 384, SR736, SB-A1/D1, 280-18, V384, D384, 247, GP192, GP384, S736E, SR736PW, SR736SW, TR41SW, SR41W, V392, Seiko SB-B1, Seiko SB-A1, Citizen 280-13, Citizen 280-18, and the Timex K. These sizes are possible LR41 battery replacements.

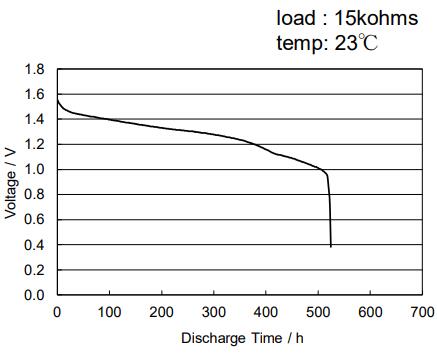

LR41 Discharge Curve
Chemistry: Alkaline
Diameter: 7.9mm
Height: 3.6mm
Voltage: 1.5V
Capacity: 25-32 mAh
It has an excellent cost performance. It can achieve this because of the use of manganese dioxide as a cathode material.
It has excellent leakage resistance.
It has a stable voltage output during high drain pulse discharge, allowing it has a regular discharge and an excellent pulse discharge characteristic.
Murata Electronics LR41 technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics LR41.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Voltage Rated | 1.5V | |
| Size / Dimension | 0.31Dia x 0.14 H 7.9mmx3.6mm | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Reach Compliance Code | compliant | |
| Termination Style | Requires Holder | |
| Storage/Refrigeration Temperature | 50°F~77°F 10°C~25°C | |
| Battery Chemistry | Alkaline Manganese Dioxide | |
| Battery Cell Size | Coin 7.9mm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Capacity | 45mAh | |
| Battery Type | PRIMARY | |
| RoHS Status | Non-RoHS Compliant |
LR41 batteries can be interchanged with AG3, SR41, 392A, 392, 384, 192, 92A, GP192, G3, V3GA, V36, V36A, LR736, CX42, and SR41SW batteries.
| Battery | Chemistry | Nominal and Cutoff Voltages | Capacity | Operating Temperature | Annual Self-Discharge Rate | Discharge Current |
| Duracell 312 | Zinc Air | 1.45V, 1.1V | 185 mAh 1k5Ω down to 1.1V @21°C | 0°C to +50°C | 4 years unactivated @21°C | - |
| Duracell D384/D392 | Silver Oxide | 1.55V, 1.2V | 45 mAh 22kΩ down to 1.2V @20°C | 0°C to +60°C | <10% @20°C | 70.6μA @1.55V 22kΩ @20°C |
| Energizer 312 | Zinc Air | 1.4V, 1.05V | 181 mAh down to 1.05V, 10/2 mA @21°C | - | - | - |
| Energizer 392/384 | Silver Oxide | 1.55V, 1.2V | 44 mAh 22kΩ down to 1.2V @21°C | - | ~2% @20°C | 68μA @1.50V 22kΩ @21°C |
| muRata LR41 | Alkaline | 1.5V, 0.9V | 45 mAh | -10°C to +60°C | - | - |
| Murata SR41 | Silver Oxide | 1.55V, 1.2V | 45 mAh 22kΩ down to 1.2V @23°C | -10°C to +60°C | - | 70μA @1.55V 22kΩ @23°C |
| Rayovac 312 | Zinc Air | 1.45V, 1.05V | (test dependent) | -10°C to +50°C | 4 years unactivated @21°C | |
| Varta SR736W | Silver Oxide | 1.55V, 1.2V | 40 mAh 13kΩ down to 1.2V @20°C | 0°C to +60°C | - | - |
The LR41 battery is a common choice for applications that require a small, reliable battery, The following are some instances of LR41 applications.
Calculator
Laser Pen
Flashlight
Digital Thermometer
Security System Panel
Wrist Watches
Medical Devices and Instruments
Memory Backup
Battery Pack Application
SR41 and LR41 batteries are button/coin cell batteries that are commonly found in digital thermometers, wristwatches, toys, small LED flashlights, wearable electronics, remote controls, and other similar products.
These batteries come in a variety of chemistries with similar, but not identical, discharge characteristics, and are frequently labeled differently by their makers, causing some user confusion.
The SR41 and LR41 batteries have the same physical dimensions (D x H) of 7.9 x 3.6 mm (0.311 x 0.142 inches), with the following shared features:
| Chemistry | Alkaline | Silver-Oxide | Zinc Air |
| Nominal Voltage | 1.5V | 1.55V | 1.4 - 1.45V |
| Cutoff Voltage | 1.0V | 1.2V | 1.1V |
| Notes | Voltage drops over time | Very constant voltage | Slightly lower voltage, large capacity; mostly used as hearing aid batteries |
| Typical Labels | LR41, LR736, AG3 | SR41 , SR736, SR736PW, SR736SW, SG3, AG3, 192, 384, 392 | 312, ZA312, Brown Tab, PR41, 7002ZD |
| Typical Capacity | 25-32 (45) mAh | 38-45 mAh | ~180 mAh |

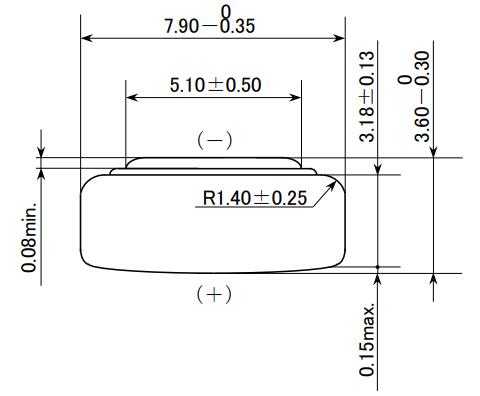

LR41 Battery Dimensions
Murata is a global leader in the design, manufacture, and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.
Download datasheets and manufacturer documentation for LR41
