LS14500 3.6 V AA Lithium Battery 2.6 Ah[Video+FAQ]

BATTERY LITHIUM 3.6V 2.6AH The LS14500 is a cylindrical-type 3.6V Lithium-thionyl Chloride battery with a capacity of 2.6Ah with bobbin construction.

314

Apr 28, 2022

Elaine Beard

BATTERY LITHIUM 3.6V 2.6AH

The LS14500 is a cylindrical-type 3.6V Lithium-thionyl Chloride battery with a capacity of 2.6Ah with bobbin construction. This article is going to talk about detailed information about the features, and applications of LS14500.

LS14500-MDS

Inquiry
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

Overview of LS14500

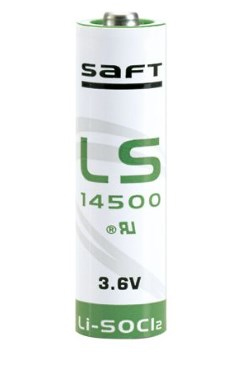

The LS14500 is a cylindrical-type 3.6V Lithium-thionyl Chloride battery with a capacity of 2.6Ah with bobbin construction. Concentric electrodes provide for maximal active material loading and, as a result, the greatest energy and lowest self-discharge. It's ideal for high-energy, high-voltage applications over a wide temperature range. It has a high level of humidity resistance.

LS14500 Features

  • Stainless steel container and end caps (low magnetic signature)

  • Hermetic glass-to-metal sealing

  • Non-flammable electrolyte

  • Compliant with IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard (class T3 assignment)

  • Underwriters Laboratories (UL) Component Recognition

  • Non-restricted for transport/Non-assigned to Class 9 according to the UN Recommendations on the transport of dangerous goods – Model Regulations

  • Manufactured in France, UK, China



Specifications

Fedco Batteries LS14500-MDS technical specifications, attributes, parameters and parts with similar specifications to Fedco Batteries LS14500-MDS.

LS14500-MDS Tech Specifications

Fedco Batteries LS14500-MDS technical specifications, attributes, parameters and parts with similar specifications to Fedco Batteries LS14500-MDS.

Product Attribute Attribute Value
Factory Lead Time2 Weeks
Voltage Rated3.6V
SeriesEnergy+®
Size / Dimension0.58Dia x 1.99 H 14.7mmx50.5mm
Part StatusActive
Product Attribute Attribute Value
Moisture Sensitivity Level (MSL)Not Applicable
Termination StyleWire Leads with Connector
Shelf Life120 Months
Shelf Life StartDate of Manufacture
Battery ChemistryLithium
Product Attribute Attribute Value
Battery Cell SizeAA
Capacity2.6Ah
RoHS StatusROHS3 Compliant
0 Products View Similar

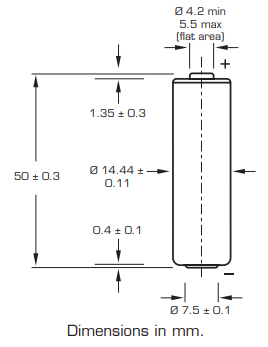

LS14500 Dimensions

LS14500 Dimensions

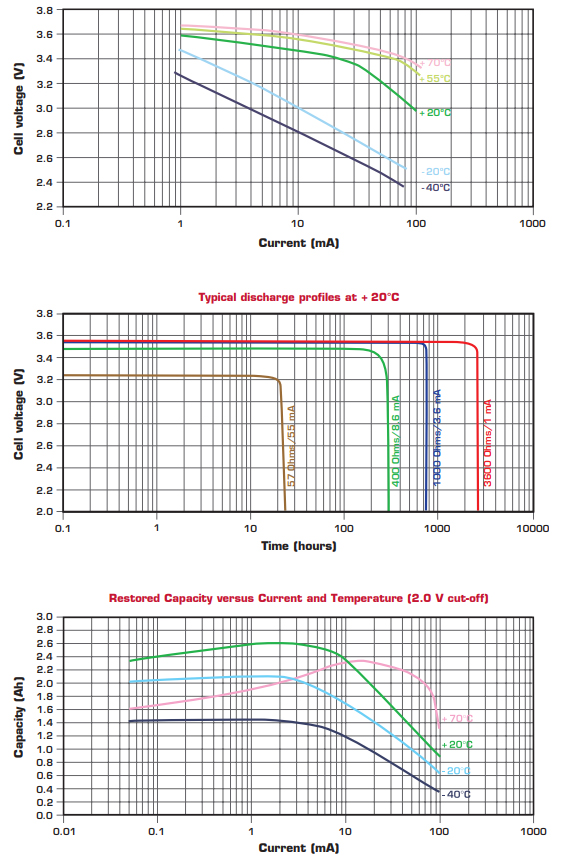

LS14500 Electrical characteristics

Benefits of LS14500

  • Enhanced capacity

  • High voltage response, stable during most of the lifetime of the application

  • Wide operating temperature range (-60°C/+85°C)

  • Low self-discharge rate (less than 1 % after 1 year of storage at +20°C)

  • Easy integration into compact systems

  • Superior resistance to atmospheric corrosion

LS14500 Applications

  • Utility metering

  • Automatic meter reading

  • Alarms and security devices

  • Tollgate systems

  • Memory back-up

  • Tracking systems

  • Automotive electronics

  • Professional electronics

LS14500 Equivalents

  • LAA, ER6, VL-AA, TL5104, TL2100, T06/41, T06/51, LS6, 3B940, LTC17C, LTC-17C, ER6AA, ER6H, LST14500, Taclane Battery



Datasheet PDF

LS14500-MDS Documents

Download datasheets and manufacturer documentation for LS14500-MDS

Datasheets
LS14500-MDS
Environmental Information
Fedco RoHS3

Frequently Asked Questions

What is a 14500 rechargeable battery?
The 14500 battery is a cylindrical lithium-ion cell with a diameter of 13.5mm and a length of 49.2mm. It is the rechargeable version of an AA battery. Most use a LiCoO2 (lithium carbon-oxide) ICR chemistry and have a 3.6V or 3.7V voltage, button-top connector.
Can I use 14500 instead of AA?
A 14500 lithium battery can be used in most flashlights that run on ONE AA cell. Flashlights that use TWO AA batteries, on the other hand, CANNOT uses 14500 batteries. This is owing to the light's voltage limitations, which are normally set at 4 volts.
Can I charge 14500 battery with AA charger?
The 14500 battery is 3.7 Volts (completely charged 4.2 Volts) Li-ion (Lithium-ion), whereas a typical Ni-Mh AA battery is 1.2 Volts / 1.5 Volts. 4.2V vs. 1.5V is not the same, and using mismatched batteries could cause damage to the device. Do not mix or attempt to use a 14500 battery with any other AA-size battery.
What’s the shelf life of LS14500?
120 Months.
What’s the voltage of LS14500?
3.6V.
FAQ
What is a 14500 rechargeable battery?
The 14500 battery is a cylindrical lithium-ion cell with a diameter of 13.5mm and a length of 49.2mm. It is the rechargeable version of an AA battery. Most use a LiCoO2 (lithium carbon-oxide) ICR chemistry and have a 3.6V or 3.7V voltage, button-top connector.
Can I use 14500 instead of AA?
A 14500 lithium battery can be used in most flashlights that run on ONE AA cell. Flashlights that use TWO AA batteries, on the other hand, CANNOT uses 14500 batteries. This is owing to the light's voltage limitations, which are normally set at 4 volts.
Can I charge 14500 battery with AA charger?
The 14500 battery is 3.7 Volts (completely charged 4.2 Volts) Li-ion (Lithium-ion), whereas a typical Ni-Mh AA battery is 1.2 Volts / 1.5 Volts. 4.2V vs. 1.5V is not the same, and using mismatched batteries could cause damage to the device. Do not mix or attempt to use a 14500 battery with any other AA-size battery.
What’s the shelf life of LS14500?
120 Months.
What’s the voltage of LS14500?
3.6V.
