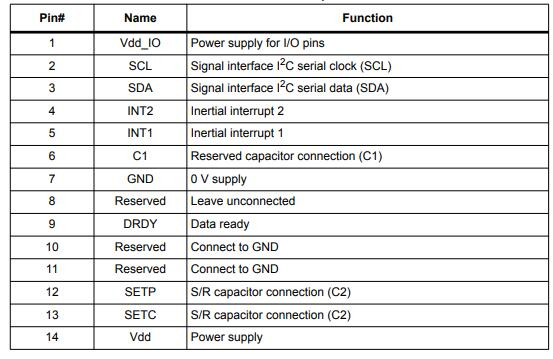

LSM303DLHC Sensor: Pinout, Datasheet, Application

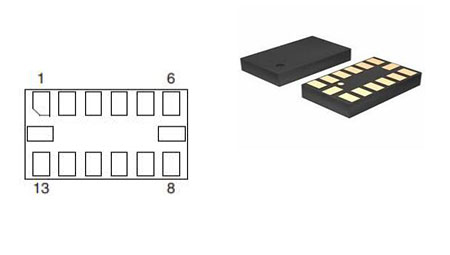

Symbol

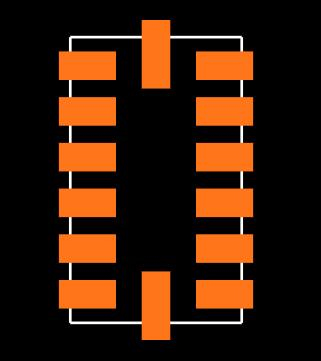

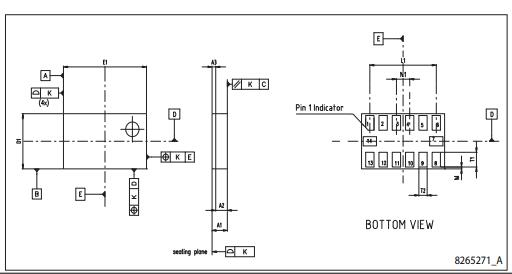

Footprint

The LSM303DLHC is a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor. It has The LSM303DLHC has linear acceleration full scales of ±2g / ±4g / ±8g / ±16g and a magnetic field full scale of ±1.3 / ±1.9 / ±2.5 / ±4.0 / ±4.7 / ±5.6 / ±8.1 gauss.

· 3 magnetic field channels and 3 acceleration channels

· From ±1.3 to ±8.1 gauss magnetic field full scale

· ±2g/±4g/±8g/±16g linear acceleration full scale

· 16-bit data output

· I 2C serial interface

· Analog supply voltage 2.16 V to 3.6 V

· Power-down mode / low-power mode

· 2 independent programmable interrupt generators for free-fall and motion detection

· Embedded temperature sensor

· Embedded FIFO

· 6D/4D-orientation detection

· ECOPACK® RoHS and "Green" compliant

STMicroelectronics LSM303DLHC technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LSM303DLHC.

· Tilt-compensated compasses

· Map rotation

· Position detection

· Motion-activated functions

· Free-fall detection

· Click/double-click recognition

· Pedometers

· Intelligent power-saving for handheld devices

· Display orientation

· Gaming and virtual reality input devices

· Impact recognition and logging

· Vibration monitoring and compensation

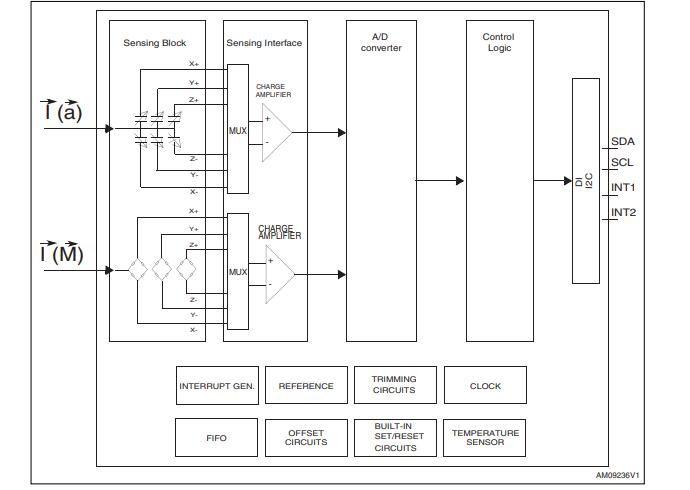

1. The LSM303DLHC is a system-in-package featuring a 3D digital linear acceleration and 3D digital magnetic field detection sensor.

2. The LSM303DLHC features two data-ready signals (RDY) which indicate when a new set of measured acceleration data and magnetic data are available, therefore simplifying data synchronization in the digital system that uses the device.

3. The LSM303DLHC may also be configured to generate a free-fall interrupt signal according to a programmed acceleration event along the enabled axes.
