IMU ACCEL/GYRO I2C/SPI 14VFLGA The LSM6DS3 is a system-in-package featuring a high-performance 3-axis digital accelerometer and 3-axis digital gyroscope.
621
Aug 17, 2021
Colby Nora
Product Insights - 02 - Accelerometer Gyroscope LSM6DS3
IMU ACCEL/GYRO I2C/SPI 14VFLGA
The LSM6DS3 is a system-in-package featuring a high-performance 3-axis digital accelerometer and 3-axis digital gyroscope. This article enforces datasheet, pinout, applications, circle, and other details about LSM6DS3.
LSM6DS3TR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.94378 | $1.94 |
| 10+ | $1.83376 | $18.34 |
| 100+ | $1.72996 | $173 |
| 500+ | $1.63204 | $816.02 |
| 1000+ | $1.53966 | $1539.66 |

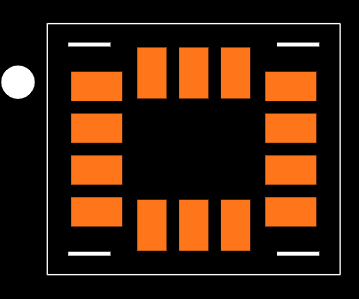

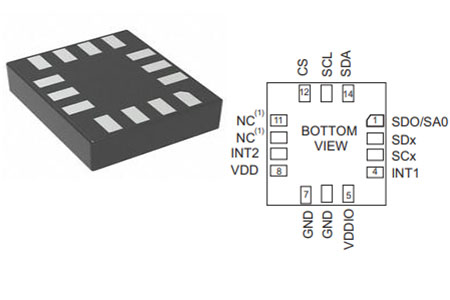

Footprint
3D Model
The LSM6DS3 is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope performing at 1.25 mA (up to 1.6 kHz ODR) in high-performance mode and enabling always-on low-power features for an optimal motion experience for the consumer.

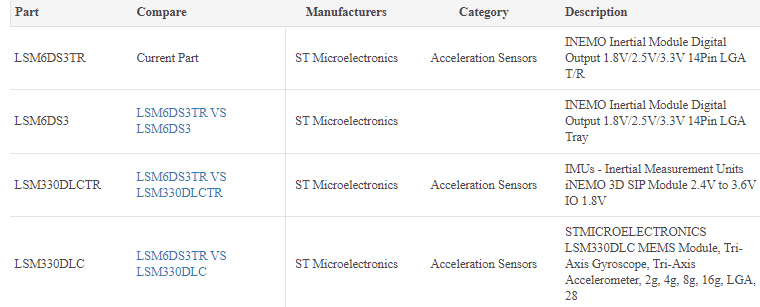

STMicroelectronics LSM6DS3TR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LSM6DS3TR.
STMicroelectronics LSM6DS3TR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics LSM6DS3TR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 16 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-VFLGA Module | |
| Number of Pins | 14Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Cut Tape (CT) | |
| Series | iNEMO | |
| JESD-609 Code | e4 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Terminal Position | BOTTOM | |
| Terminal Form | BUTT | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.8V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | LSM6D |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Type | I2C, SPI | |
| Max Supply Voltage | 3.6V | |
| Min Supply Voltage | 1.62V | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Sensor Type | Accelerometer, Gyroscope, Temperature, 6 Axis | |
| Height | 860μm | |
| Length | 3mm | |
| Width | 2.5mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz.
“Always-on” experience with low power consumption for both accelerometer and gyroscope
Smart FIFO up to 8 kbyte based on features set
Compliant with Android K and L
Hard, soft ironing for external magnetic sensor corrections
±2/±4/±8/±16 g full scale
±125/±250/±500/±1000/±2000 DPS full scale
Analog supply voltage: 1.71 V to 3.6 V
Independent IOs supply (1.62 V)
Compact footprint, 2.5 mm x 3 mm x 0.83 mm
SPI/I2C serial interface with main processor data synchronization feature
Embedded temperature sensor
ECOPACK®, RoHS, and “Green” compliant
Pedometer, step detector, and step counter
Significant motion and tilt functions

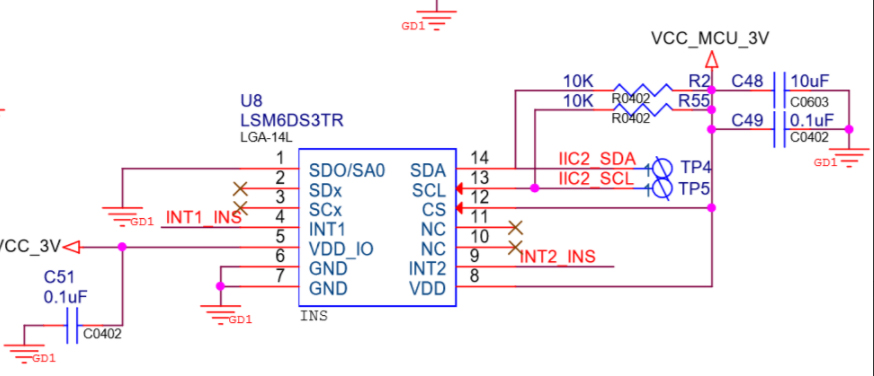

Indoor navigation
Tap and double-tap detection
IoT and connected devices
Intelligent power saving for handheld devices
Vibration monitoring and compensation
Free-fall detection
6D orientation detection
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology, and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics LSM6DS3TR.
Download datasheets and manufacturer documentation for LSM6DS3TR
