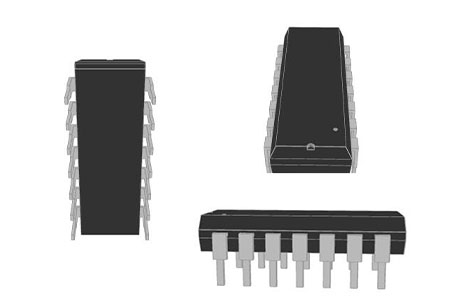

LT1014 3D Model

The LT1014 is the first precision quad operational amplifier which directly upgrades designs in the industry-standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration. It is no longer necessary to compromise specifications while saving board space and cost, as compared to single operational amplifiers.

The LT1014's low offset voltage of 50µV, the drift of 0.3µV/°C, offset current of 0.15nA, a gain of 8 million, common-mode rejection of 117dB and power supply rejection of 120dB qualify it as four truly precision operational amplifiers. Particularly important is the low offset voltage, since no offset null terminals are provided in the quad configuration.

• Single-Supply Operation Input Voltage Range Extends to Ground Output Swings to Ground While Sinking Current

• Pin Compatible to 1458 and 324 with Precision Specs

• Guaranteed Offset Voltage: 150µV Max

• Guaranteed Low Drift: 2µV/°C Max

• Guaranteed Offset Current: 0.8nA Max

• Guaranteed High Gain 5mA Load Current: 1.5 Million Min 17mA Load Current: 0.8 Million Min

• Guaranteed Low Supply Current: 500µA Max

• Low Voltage Noise, 0.1Hz to 10Hz: 0.55µVP-P Low Current Noise—Better than 0P-07, 0.07pA/√Hz

• Battery-Powered Precision Instrumentation

• Strain Gauge Signal Conditioners

• Thermocouple Amplifiers

• Instrumentation Amplifiers

• 4mA to 20mA Current Loop Transmitters

• Multiple Limit Threshold Detection

• Active Filters n Multiple Gain Blocks

LT1014 Schematic

LT1014 Schematic Diagram

LT1014 Typical Application Circuit

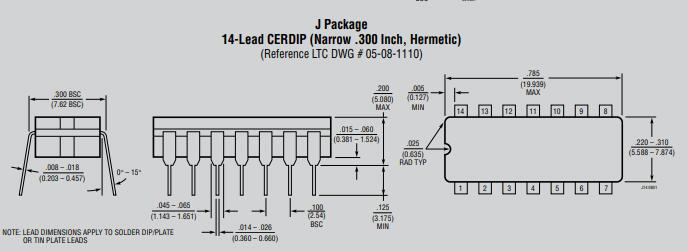

LT1014 Package
