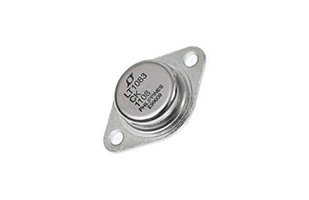

LT1083CK Voltage Regulator: Feature, Specification, and Datasheet Cecelia

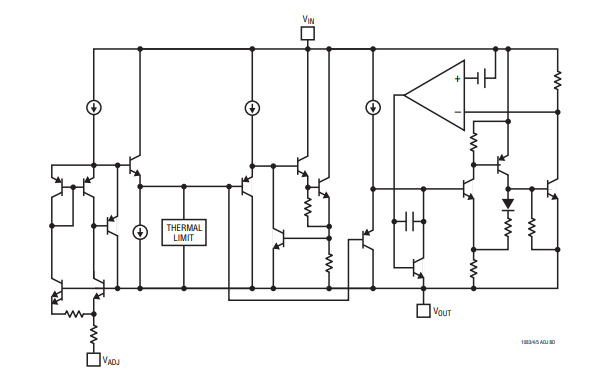

All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. The current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.

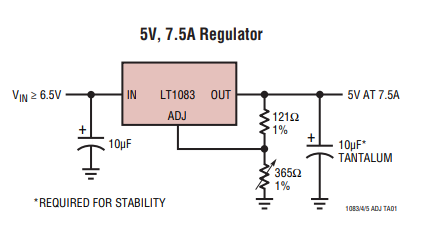

The LT1083 devices are pin-compatible with older 3-terminal regulators. A 10µF output capacitor is required on these new devices. However, this is included in most regulator designs.

Unlike PNP regulators, where up to 10% of the output current is wasted as quiescent current, the LT1083 quiescent current flows into the load, increasing efficiency.

 ■  Three-terminal adjustable

 ■  Output current of 3A, 5A or 7.5A

 ■  Operates down to 1V dropout

 ■  Guaranteed dropout voltage at multiple current levels

 ■  Line regulation: 0.015%

 ■  Load regulation: 0.1%

 ■  100% thermal limit functional test

 ■  Fixed versions available

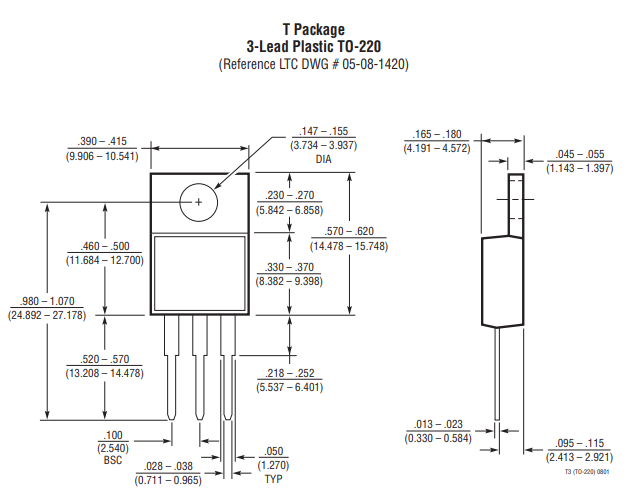

 ■  Available in 3-lead plastic TO-220, TO-3P and DD packages

 ■ High-efficiency linear regulators

 ■ Post regulators for switching supplies

 ■ Constant current regulators

 ■ Battery chargers
