PMIC - Voltage Regulators - Linear TO-220-3 0°C~125°C LT1084 Over Temperature 5A 75dB (120Hz) IC REG LINEAR POS ADJ 5A TO220-3
The LT1084 is a positive adjustable Low Dropout Regulator designed to provide output current of 5A with higher efficiency than currently available devices. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
LT1084CT#PBF
symbol
footprint
3D Model

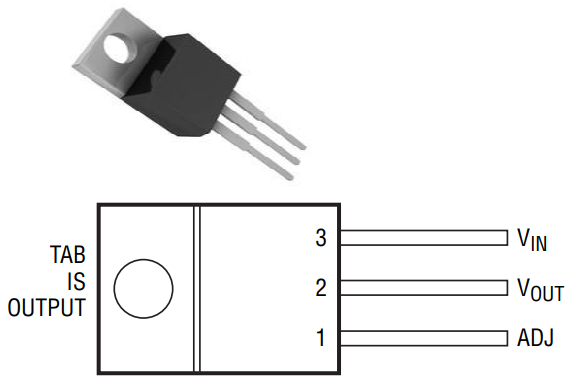

The LT1084 positive adjustable regulator is designed to provide 5A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions. The LT1084 device is pin compatible with older 3-terminal regulators. A 10µF output capacitor is required on the new device. However, this is included in most regulator designs.
This article provides you with a basic overview of the LT1084, including its pin descriptions, features and specifications, etc., to help you quickly understand what LT1084 is.
● 3-Terminal Adjustable
● Output Current of 5A
● Operates Down to 1V Dropout
● Guaranteed Dropout Voltage at Multiple Current Levels
● Line Regulation: 0.015%
● Load Regulation: 0.1%
●100% Thermal Limit Functional Test
● Fixed Versions Available
● Available in 3-Lead Plastic TO-220 and DD Packages
Linear Technology/Analog Devices LT1084CT#PBF technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices LT1084CT#PBF.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Surface Mount | NO | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Tube | |
| Published | 2009 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Position | SINGLE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.54mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | LT1084 | |
| Pin Count | 3 | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Voltage - Input (Max) | 30V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Type | Adjustable | |
| Output Configuration | Positive | |
| Voltage - Output (Min/Fixed) | 1.25V | |
| Number of Regulators | 1Regulator | |
| Protection Features | Over Temperature | |
| Voltage Dropout (Max) | 1.5V @ 5A | |
| PSRR | 75dB (120Hz) | |
| Dropout Voltage1-Nom | 1.3V | |
| Load Regulation-Max(%) | 0.4% | |
| Input-Output Voltage Differential-Max | 25V | |
| RoHS Status | ROHS3 Compliant |
| Model number | Manufacturer | Description |
| LT1084IT#TRPBF | Linear Technology | IC VREG 1.2 V-15 V ADJUSTABLE POSITIVE LDO REGULATOR, 1.5 V DROPOUT, PSFM3, LEAD FREE, PLASTIC, TO-220, 3 PIN, Adjustable Positive Single Output LDO Regulator |
| LT1084IT#TR | Linear Technology | IC VREG 1.2 V-15 V ADJUSTABLE POSITIVE LDO REGULATOR, 1.5 V DROPOUT, PSFM3, PLASTIC, TO-220, 3 PIN, Adjustable Positive Single Output LDO Regulator |
| CS-5205A-1T3 | On Semiconductor | 1.25 V-13V ADJUSTABLE POSITIVE LDO REGULATOR, 1.25V DROPOUT, PSFM3, STRAIGHT, TO-220, 3 PIN |
| CLM2850AU | Calogic Inc | Adjustable Positive LDO Regulator, 1.2V Min, 1.5V Dropout, PSFM3, PLASTIC, TO-220, 3 PIN |
| LT1084CP(ADJ) | Semtech Corporation | Adjustable Positive LDO Regulator, 1.2V Min, 1.5V Dropout, PSFM3, TO-247, 3 PIN |
| LT1084CT | Analog Devices Inc | Adjustable Positive LDO Regulator, 1.2V Min, 15V Max, 1.5V Dropout, BIPolar, PSFM3 |
| LT1084IT | Analog Devices Inc | Adjustable Positive LDO Regulator, 1.2V Min, 15V Max, 1.5V Dropout, BIPolar, PSFM3 |
| CS5205A-1GT3 | Cherry Semiconductor Corporation | Adjustable Positive LDO Regulator, 1.25V Min, 13V Max, 1.25V Dropout, BIPolar, PSFM3, STRAIGHT, TO-220, 3 PIN |
| LT1084IT#PBF | Analog Devices Inc | 7.5A, 5A, 3A Low Dropout Positive Adjustable Regulators |
● High Efficiency Linear Regulators
● Post Regulators for Switching Supplies
● Constant Current Regulators
● Battery Chargers
As a member of the S&P 500, Linear Technology Corporation is committed to designing, manufacturing and marketing a extensive line of high performance analog integrated circuits for main companies around the world. Between the analog world and digital electronic products in communications, networks, industry, automobiles, computers, medical, instrumentation, consumer, military and aerospace systems, our products have built an important bridge for them. Our products include not only the production of power management, data conversion, signal conditioning, RF and interface ICs, μModule subsystems, but also wireless sensor network products.
Download datasheets and manufacturer documentation for LT1084CT#PBF
