LT1085 Description

The LT1085 is a positive adjustable Low Dropout Linear voltage regulator that has greater efficiency than currently available devices and can produce an output current of 3A. The input voltage ranges from 2.55V to 30V, and the output voltage can be adjusted. The LT1085  is offered in three different packages: TO-220, DD, and 3-Lead Plastic TO-220.

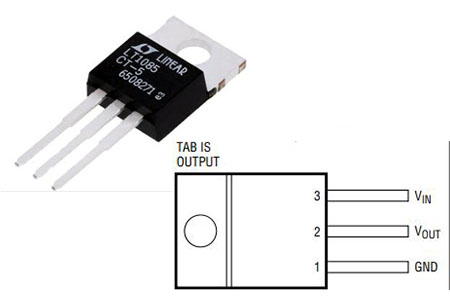

LT1085 Pinout

LT1085 Pinout



Pin No. Pin Name Description
1 ADJ/GND Adjustable pin for adjusting output version. Ground for fixed type version
2 OUTPUT Output Voltage Pin
3 INPUT Input Voltage Pin

Specifications

LT1085IT Tech Specifications

Analog Devices, Inc. LT1085IT technical specifications, attributes, parameters and parts with similar specifications to Analog Devices, Inc. LT1085IT.

Product Attribute Attribute Value
Package / CaseT
Number of Pins3Pins
PackagingBulk
Max Operating Temperature150°C
Min Operating Temperature-40°C
Number of Outputs1Output
PolarityPositive
Operating Supply Current5mA
Product Attribute Attribute Value
Power Dissipation30W
Current - Output3A
Max Output Voltage28.5V
Voltage - Output28.5V
Number of Regulators1Regulator
Min Input Voltage2.55V
Max Input Voltage30V
Dropout Voltage1.3V
Product Attribute Attribute Value
Min Output Voltage1.25V
Power Supply Rejection Ratio (PSRR)75dB
Min Current Limit3.2A
Radiation HardeningNo
RoHS StatusRoHS Compliant
Lead FreeContains Lead
0 Products View Similar

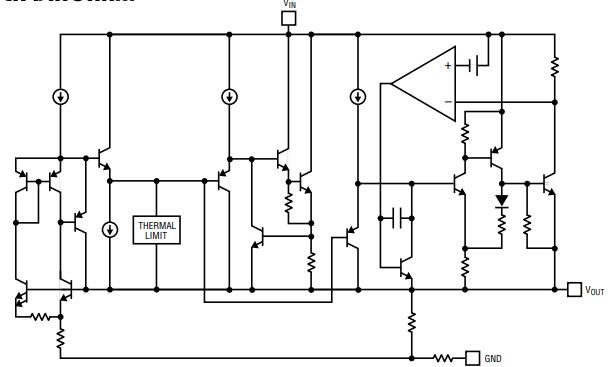

LT1085 Block Diagram

The following is the block diagram of LT1085:

LT1085 Block Diagram

LT1085 Features

  • Three-Terminal 3.3V, 3.6V, 5V  and 12V

  • Output Current of 3A, 5A or 7.5A

  • Operates Down to 1V Dropout

  • Guaranteed Dropout Voltage  at Multiple Current Levels

  • Line Regulation: 0.015%

  • Load Regulation: 0.1%

  • 100% Thermal Limit Functional Test

  • Adjustable Versions Available

LT1085 Applications

  • High-Efficiency Linear Regulators

  • Post Regulators for Switching Supplies

  • Constant Current Regulators

  • Battery Chargers

LT1085 Replacements

AZ1084, LT1084, NX1117



Alternatives for LT1085

AP2112K, AMS1117, MIC5225, LT1086

How to Use LT1085 Regulator

The LT1085 voltage regulator is simple to use because it only requires a few external components. The pin configuration of LT1085  is identical to that of AZ1084. This LT1085  is in adjustable mode, as shown in the image below, and you can alter the regulated output voltage by changing the value of the resistor connected to the ADJ  pin.

LT1085 Application Circuit

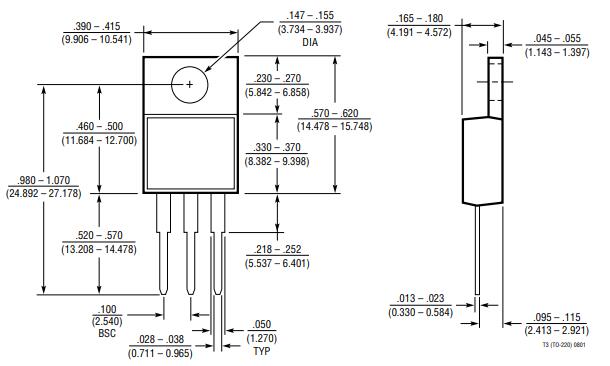

LT1085 Package Outline

LT1085 Package Outline

LT1085 Manufacturer

Analog Devices is an international market leader in the design, production, and commercialization of a large range of high-performance integrated circuits (ICs) for analog, mixed-signal, and digital signals (DSP) processing of almost all electronic systems. Since we started in 1965, the focus has been on the engineering challenge in electronic equipment related to signal to process. Our signal processing solutions, utilized by over 100,000 customers worldwide, play a key role in the conversion, conditioning, and processing of real-world events such as temperature, pressure, sonority, illumination, speed, and movement to electric signals for a wide range of electronic devices.

Datasheet PDF

LT1085IT Documents

Download datasheets and manufacturer documentation for LT1085IT

Frequently Asked Questions

What is the use of LT1085?
LT1085 is a positive adjustable Low Dropout Linear voltage regulator designed to provide an output current of 3A with higher efficiency than currently available devices. The input voltage range is from 2.55V to 30V and is available in adjustable output voltage versions.
Are LT1117 and LT1085 regulators
LT1117 and LT1085 are low-dropout three-terminal regulators with similar functions to 78 series three-terminal regulators.
What is identical to the pin configuration of LT1085?
AZ1084
Why is the LT1085 voltage regulator simple to use?
Because of a few external components
