LT3045：High Performance Regulator

The LT3045 is a high performance low dropout linear regulator with LTC's ultralow noise and ultrahigh PSRR architecture, designed to power noise sensitive applications. The LT3045, which is designed as a precision current reference followed by a high performance voltage buffer, may be readily paralleled to minimize noise, boost output current, and spread heat on the PCB. In addition to the LT3045 feature set, the LT3045-1 includes a VIOC tracking function that controls an upstream switching converter to maintain a constant voltage across the LT3045-1 and therefore reduce power consumption.

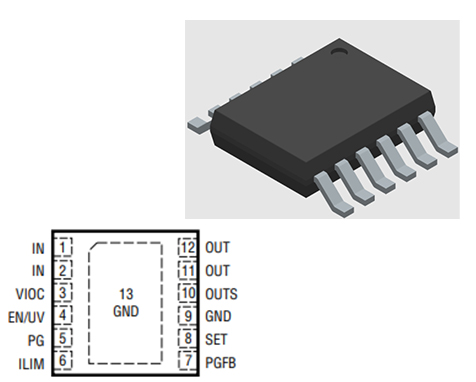

Symbol

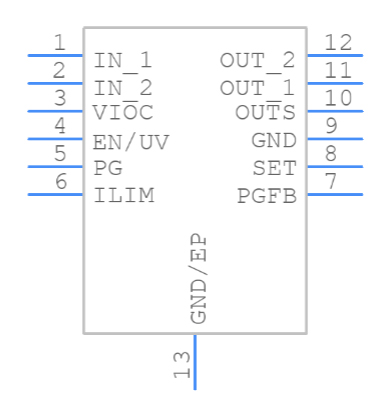

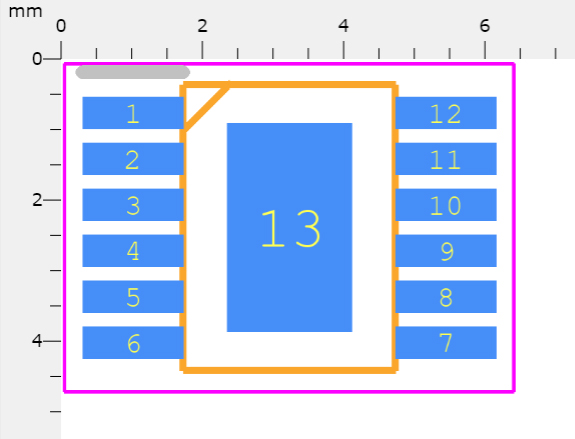

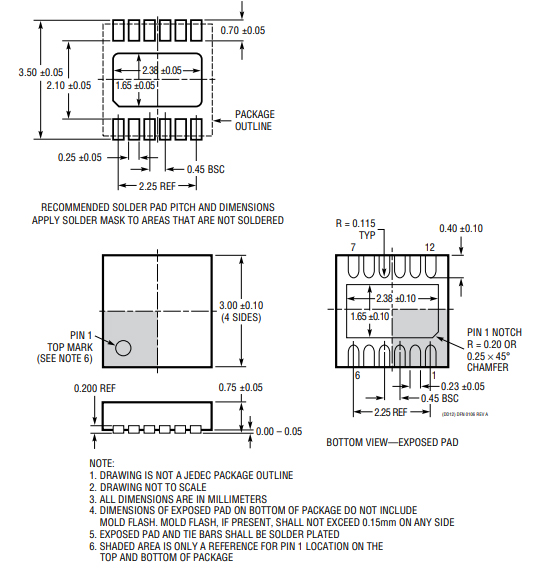

Footprint

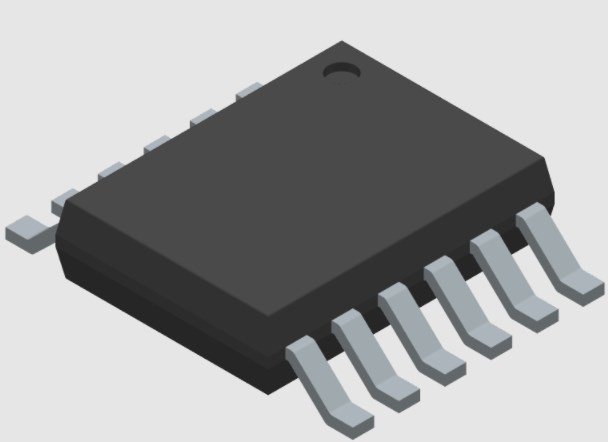

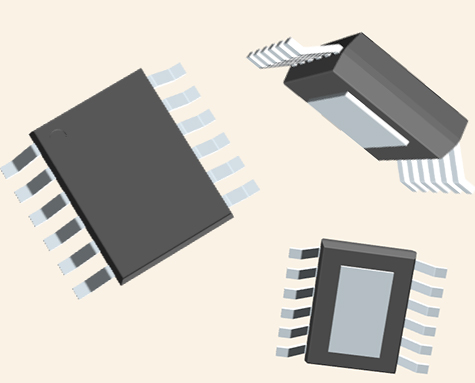

3D Model

Ultralow RMS Noise: 0.8µVRMS (10Hz to 100kHz)

 Ultralow Spot Noise: 2nV/√Hz at 10kHz

 Ultrahigh PSRR: 76dB at 1MHz

 Output Current: 500mA

 Wide Input Voltage Range: 1.8V to 20V

 Single Capacitor Improves Noise and PSRR

 100µA SET Pin Current: ±1% Initial Accuracy

 VIOC Pin Controls Upstream Regulator to Minimize Power Dissipation

 Single Resistor Programs Output Voltage

 Programmable Current Limit

 Low Dropout Voltage: 260mV

 Output Voltage Range: 0V to 15V

 Programmable Power Good

 Fast Start-Up Capability

 Precision Enable/UVLO

 Parallelable for Lower Noise and Higher Current

 Internal Current Limit with Foldback

 Minimum Output Capacitor: 10µF Ceramic

 Reverse Battery and Reverse Current Protection

 12-Lead MSOP and 3mm × 3mm DFN Packages

RF Power Supplies: PLLs, VCOs, Mixers, LNAs, PAs

 Very Low Noise Instrumentation

 High Speed/High Precision Data Converters

 Medical Applications: Imaging, Diagnostics

 Post-Regulator for Switching Supplies

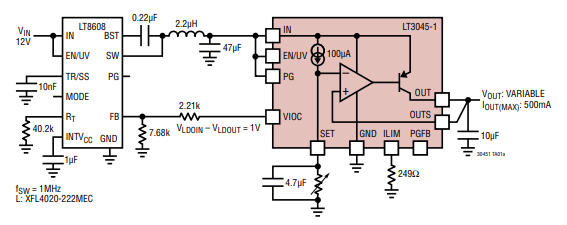

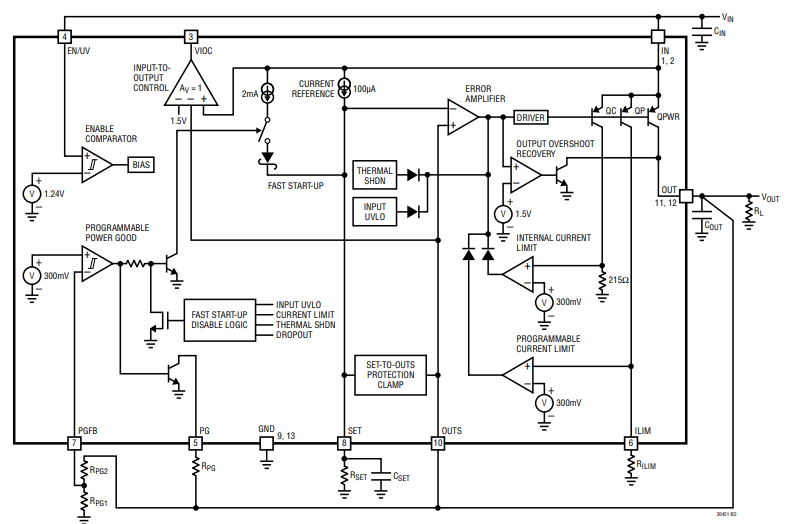

LT3045 Typical Application Circuit
