Introducing the LT3080 - Adjustable 1.1A Single Resistor LDO Regulator
IC REG LINEAR
The LT3080 is a low-dropout single-resistor adjustable 1.1A regulator. This article mainly covers alternatives, datasheet, applications, pinout, and other details about LT3080 low dropout linear regulator. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
LT3080EST
The LT3080 is a 1.1A low-dropout linear regulator with an integrated ballast resistor that allows devices to be directly paralleled without the use of PC board trace resistors. Multiple devices can be paralleled directly on a surface mount board thanks to the integrated ballast resistor, allowing for larger output current and power dissipation while keeping the board layout simple and uncomplicated. When utilized with numerous input sources, the device brings out the collector of the pass transistor, allowing for low dropout operation (down to 350mV).

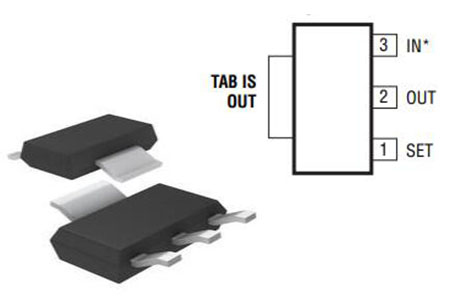

LT3080 Symbol

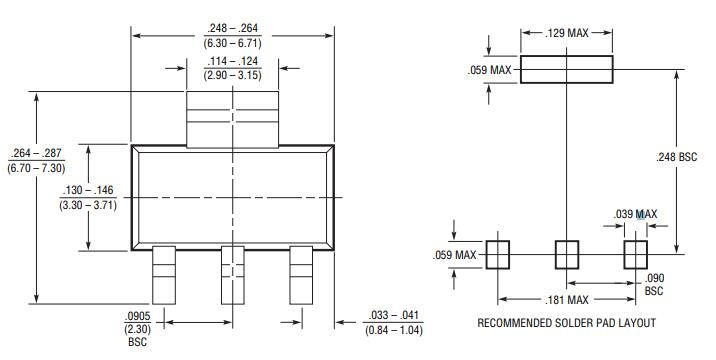

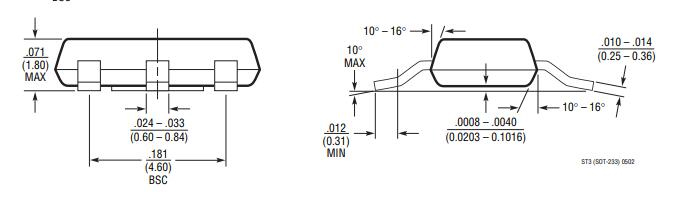

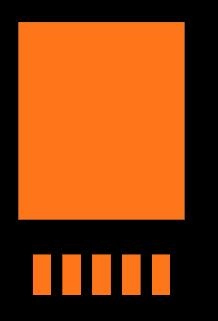

LT3080 Footprint
Linear Technology/Analog Devices LT3080EST technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices LT3080EST.
Linear Technology/Analog Devices LT3080EST technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices LT3080EST.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | TO-261-4, TO-261AA | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| Published | 2005 | |
| JESD-609 Code | e0 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 255 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.3mm | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Pin Count | 3 | |
| JESD-30 Code | R-PDSO-G3 | |
| Current - Supply (Max) | 30mA | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Voltage - Input (Max) | 36V | |
| Output Type | Adjustable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Configuration | Positive | |
| Current - Output | 1.1A | |
| Voltage - Output (Min/Fixed) | 0V | |
| Number of Regulators | 1Regulator | |
| Protection Features | Over Current, Over Temperature, Short Circuit | |
| Current - Quiescent (Iq) | 500μA | |
| Voltage Dropout (Max) | 1.6V @ 1.1A | |
| PSRR | 75db ~ 20dB (120Hz ~ 1MHz) | |
| Dropout Voltage1-Nom | 0.35V | |
| Output Voltage1-Max | 36V | |
| Length | 6.505mm | |
| Width | 3.505mm | |
| RoHS Status | Non-RoHS Compliant |

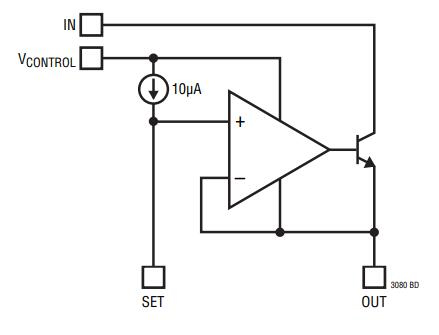

LT3080 Block Diagram
Outputs May be Paralleled for Higher Current and Heat Spreading
Output Current: 1.1A
Single Resistor Programs Output Voltage
1% Initial Accuracy of SET Pin Current
Output Adjustable to 0V
Low Output Noise: 40µVRMS (10Hz to 100 kHz)
Wide Input Voltage Range: 1.2V to 36V
Low Dropout Voltage: 350mV (Except SOT-223 Package)
<1mV Load Regulation
<0.001%/V Line Regulation
Minimum Load Current: 0.5mA
Stable with 2.2µF Minimum Ceramic Output Capacitor
Current Limit with Fold back and over-temperature protected
Available in 8-Lead MSOP, 3mm × 3mm DFN,
5-Lead DD-Pak, TO-220, and 3-Lead SOT-223
High Current All Surface Mount Supply
High-Efficiency Linear Regulator
Post Regulator for Switching Supplies
Low Parts Count Variable Voltage Supply
Low Output Voltage Power Supplies
A 1.1A low dropout linear regulator that can be paralleled to boost output current or spread heat on surface mounted boards is a typical use for the LT3080.

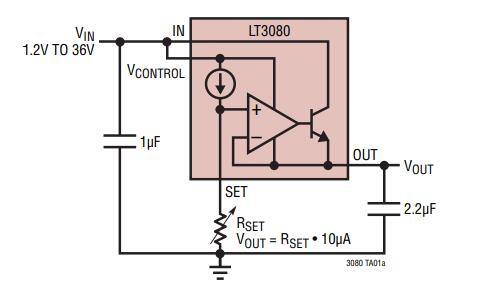

LT3080 Application Circuit

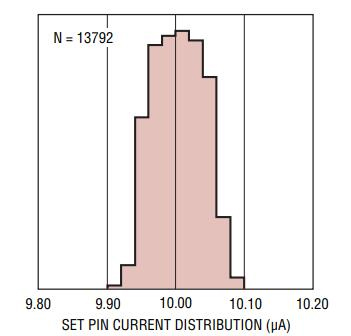

LT3080 Pin Current
As a member of the S&P 500, Linear Technology Corporation is committed to designing, manufacturing, and marketing an extensive line of high-performance analog integrated circuits for main companies around the world. Between the analog world and digital electronic products in communications, networks, industry, automobiles, computers, medical, instrumentation, consumer, military, and aerospace systems, our products have built an important bridge for them. Our products include not only the production of power management, data conversion, signal conditioning, RF and interface ICs, μModule subsystems, but also wireless sensor network products.
Download datasheets and manufacturer documentation for Linear Technology/Analog Devices LT3080EST.
Download datasheets and manufacturer documentation for LT3080EST
