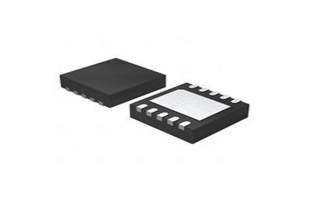

LTC2852 Transceiver: Pinout, Equivalent and Datasheet

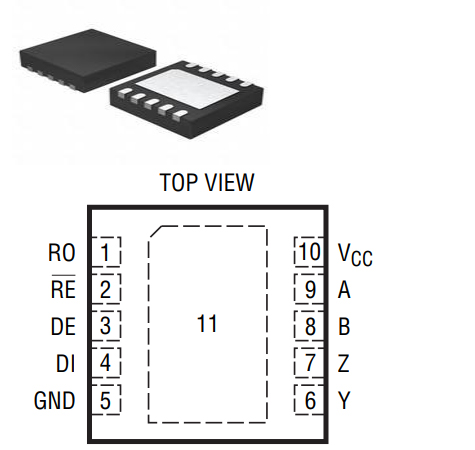

Pinout

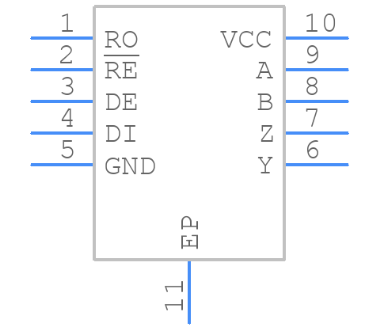

PCB Symbol

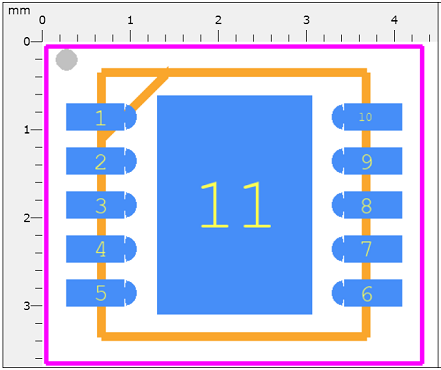

PCB Footprint

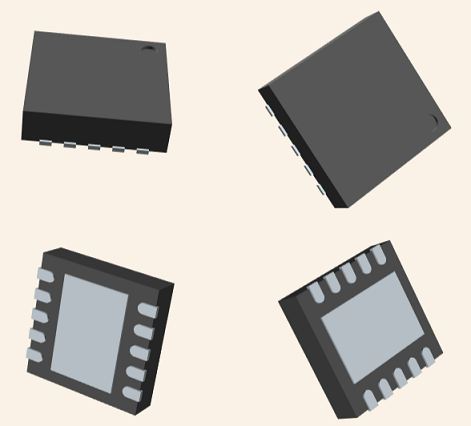

3D Model

The LTC2852 is low power, 20Mbps RS485/RS422 transceiver operating on 3.3V supplies. The receiver has a one-eighth unit load supporting up to 256 nodes per bus (C-, I-grade), and a failsafe feature that guarantees a high output state under conditions of floating or shorted inputs. The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown. Enhanced ESD protection allows these parts to withstand up to ±15kV (human body model) on the transceiver interface pins without latchup or damage.

This article provides you with a basic overview of the LTC2852 Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what LTC2852 is.

● 3.3V Supply Voltage

● 20Mbps Maximum Data Rate

● No Damage or Latchup Up to ±15kV HBM

● High Input Impedance Supports 256 Nodes (C-, I-Grade)

● Operation Up to 125°C (H-Grade)

● Guaranteed Failsafe Receiver Operation Over the Entire Common Mode Range

● Current Limited Drivers and Thermal Shutdown

● Delayed Micropower Shutdown: 5µA Maximum (C-, I-Grade)

● Power Up/Down Glitch-Free Driver Outputs

● Low Operating Current: 370µA Typical in Receive Mode

● Compatible with TIA/EIA-485-A Specifications

● Available in 10-Pin 3mm × 3mm DFN, 10-Pin MSOP, and 14-Pin SO Packages

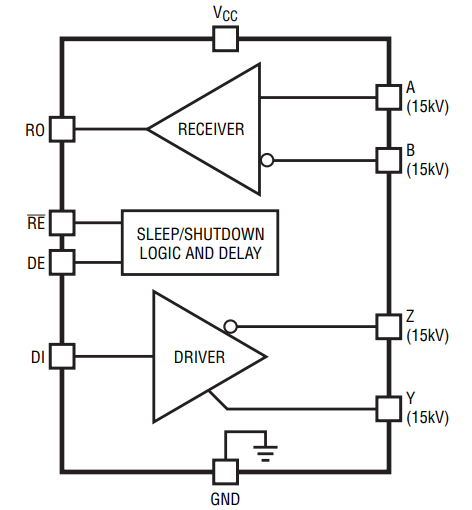

Block Diagram

● Low Power RS485/RS422 Transceiver

● Level Translator

● Backplane Transceiver

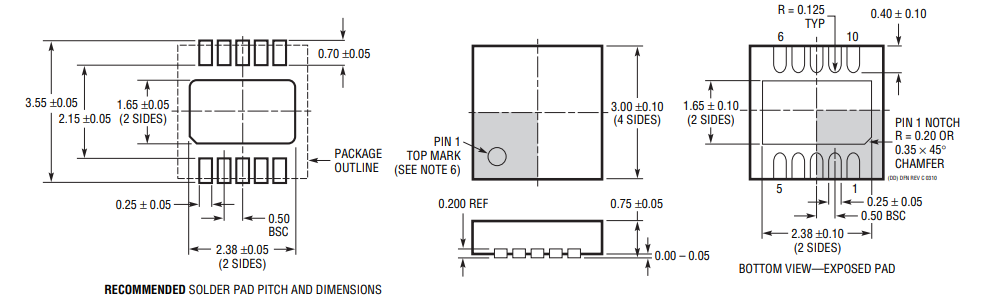

Package

As a member of the S&P 500, Linear Technology Corporation is committed to designing, manufacturing and marketing a extensive line of high performance analog integrated circuits for main companies around the world. Between the analog world and digital electronic products in communications, networks, industry, automobiles, computers, medical, instrumentation, consumer, military and aerospace systems, our products have built an important bridge for them. Our products include not only the production of power management, data conversion, signal conditioning, RF and interface ICs, μModule subsystems, but also wireless sensor network products.
