LTC3588 Energy harvester: Datasheet, Circuit and Pinout

The LTC3588 integrates a low-loss full-wave bridge rectifier with a high-efficiency buck converter to form a complete energy harvesting solution optimized for high output impedance energy sources such as piezoelectric, solar, or magnetic transducers.

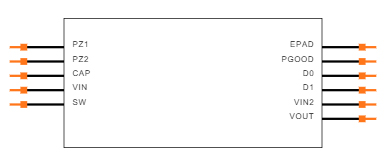

Symbol

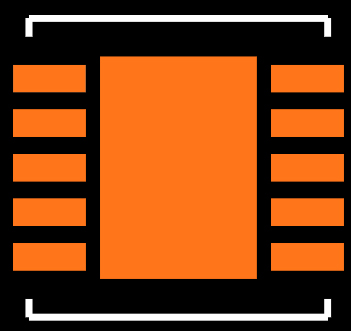

Footprint

Linear Technology/Analog Devices LTC3588EDD-2#PBF technical specifications, attributes, parameters and parts with similar specifications to Linear Technology/Analog Devices LTC3588EDD-2#PBF.

• 1500nA Input Quiescent Current (Output in

• Regulation – No Load, VIN = 18V)

• 830nA Input Quiescent Current in UVLO, VIN = 12V

• 14V to 20V Input Operating Range

• Integrated Low-Loss Full-Wave Bridge Rectifier

• 16V UVLO Improves Power Utilization from High

• Voltage Current Limited Inputs

• Up to 100mA of Output Current

• High Efficiency Integrated Hysteretic Buck DC/DC

• Selectable Output Voltages: 3.45V, 4.1V, 4.5V, 5.0V

• Input Protective Shunt – Up to 25mA Pull-Down at VIN ≥ 20V

• Available in 10-Lead MSE and 3mm × 3mm DFN Packages

• Piezoelectric Energy Harvesting

• Electro-Mechanical Energy Harvesting

• Low Power Battery Charging

• Wireless HVAC Sensors

• Mobile Asset Tracking

• Tire Pressure Sensors

• Battery Replacement for Industrial Sensors
