Antenova’s M10385 is an internal FM antenna module, and this article will unlock more details about M10385.
M10385 FM Module：Datasheet, Application, Schematic
FM MODULE Antenova’s M10385 is an internal FM antenna module, and this article will unlock more details about M10385.
89
Aug 27, 2021
Merlin Tobias
M10385
Inquiry
Min.: 1 Mult.: 1
Quick Links
M10385 Description
Antenova's M10385 is an internal FM antenna module designed to address the growing market for FM Radio functionality in mobile devices such as mobile phones, PNDs, PMPs, Digital Photo Frames and Media Tablets.
Specifications
Antenova M10385 technical specifications, attributes, parameters and parts with similar specifications to Antenova M10385.
M10385 Tech Specifications
M10385 Tech Specifications
Antenova M10385 technical specifications, attributes, parameters and parts with similar specifications to Antenova M10385.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | PCB, Surface Mount | |
| Package / Case | Module | |
| Packaging | Bulk | |
| Published | 2010 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | Solder | |
| Frequency | 108MHz | |
| Gain | 13.5 dB | |
| Number of Bands | 1Band |
| Product Attribute | Attribute Value | |
|---|---|---|
| Height | 1.4986mm | |
| RoHS Status | RoHS Compliant |
M10385 Features
-
Low-cost single package Internal SMD FM
-
Antenna Module
-
Low 1.5mm height for thin devices
-
High performance
-
Easily interfaced to any FM receiver
-
Transmit + Receive through a single line
-
Built-in ESD protection ±20kV (contact)
-
Easy to integrate
-
Intended for SMD mounting

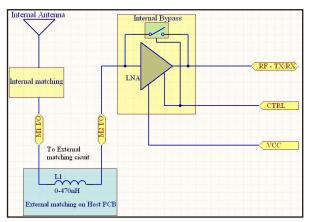

M10385 Block Diagram
M10385 Application
-
Mobile phones / Smartphones
-
Portable Media Players (PMPs)
-
Portable Navigation Devices (PNDs)
-
Notebooks / Netbooks / Media Tablets
-
Digital Photo/Media Frames
-
FM transmitters for Music Players

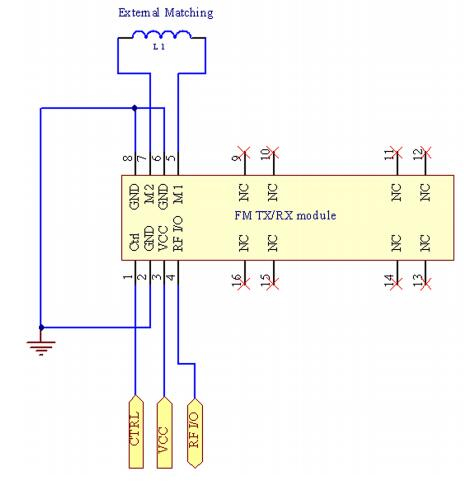

M10385 Application Schematic
M10385 Manufacturer
Antenova is a prominent inventor and provider of high-performance antenna systems for mobile phones, laptop computers, and other portable devices. Antenova's patented High Dielectric Antenna (HDA®) and balanced antenna technology enable integrated antenna solutions and radio antenna modules for mobile handsets, portable devices, laptop applications, and peripheral devices that are smaller, more efficient, operate across multiple bands and offer more robust performance.

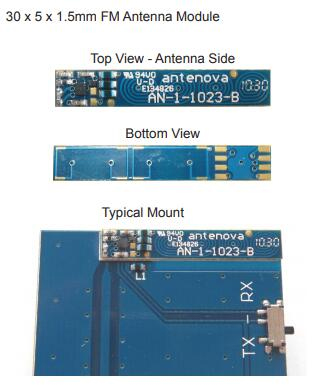

M10385 Package
Datasheet PDF
Download datasheets and manufacturer documentation for Antenova M10385.
M10385 Documents
M10385 Documents
Download datasheets and manufacturer documentation for M10385
Datasheets
m10385-6Kt1nWTr-2j6rRW9jm.pdf
Frequently Asked Questions
What is the M10385?
Antenova’s M10385 is an internal FM antenna module designed to address the growing market for FM Radio functionality in mobile devices such as mobile phones, PNDs, PMPs, Digital Photo Frames and Media Tablets.
How to use M10385?
A minimum clearance of 2mm between the antenna and the host PCB ground plane is recommended for the best FM signal reception.
What is transmitting/receiving FM frequency of M10385?
The M10385 is capable of transmitting/receiving FM frequencies from 87.5 - 108 MHz and is intended to be planar mounted at the edge of the host PCB for minimum PCB space requirement.
FAQ
What is the M10385?
Antenova’s M10385 is an internal FM antenna module designed to address the growing market for FM Radio functionality in mobile devices such as mobile phones, PNDs, PMPs, Digital Photo Frames and Media Tablets.
How to use M10385?
A minimum clearance of 2mm between the antenna and the host PCB ground plane is recommended for the best FM signal reception.
What is transmitting/receiving FM frequency of M10385?
The M10385 is capable of transmitting/receiving FM frequencies from 87.5 - 108 MHz and is intended to be planar mounted at the edge of the host PCB for minimum PCB space requirement.
