IC EEPROM 128K I2C 1MHZ 8TSSOP The M24128-BR is a 128-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K × 8 bits. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
288
Apr 12, 2022
Toby Benedict
What Is EEPROM?
IC EEPROM 128K I2C 1MHZ 8TSSOP
The M24128-BR is a 128-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K × 8 bits. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M24128-BRDW6TP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.38755 | $0.39 |
| 10+ | $0.36561 | $3.66 |
| 100+ | $0.34492 | $34.49 |
| 500+ | $0.32539 | $162.7 |
| 1000+ | $0.30698 | $306.98 |

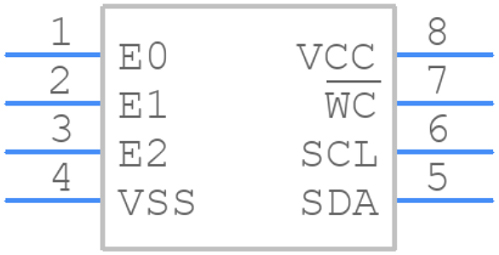

The following figure is the diagram of M24128-BR Pinout.
Pinout
The followings are M24128-BR Symbol, Footprint, and 3D Model.
PCB Symbol

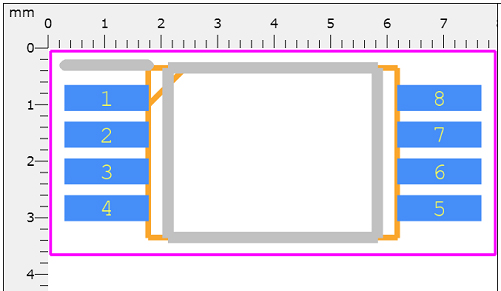

PCB Footprint

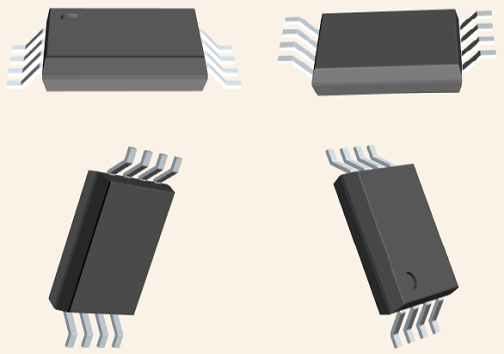

3D Model
The M24128-BR is a 128-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K × 8 bits. The M24128-BR can operate with a supply voltage from 1.8 V to 5.5 V, the device operates with a clock frequency of 1 MHz (or less), over an ambient temperature range of –40 °C / +85 °C.
This article provides you with a basic overview of the M24128-BR 128-Kbit serial I²C bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M24128-BR is.
● Compatible with all I²C bus modes:
◆ 1 MHz
◆ 400 kHz
◆ 100 kHz
● Memory array:
◆ 128 Kbit (16 Kbyte) of EEPROM
◆ Page size: 64 byte
● Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
● Write:
◆ Byte Write within 5 ms
◆ Page Write within 5 ms
● Operating temperature range: from -40 °C up to +85 °C
● Random and sequential Read modes
● Write protect of the whole memory array
● Enhanced ESD/Latch-Up protection
● More than 4 million Write cycles
● More than 200-years data retention
STMicroelectronics M24128-BRDW6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24128-BRDW6TP.
STMicroelectronics M24128-BRDW6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24128-BRDW6TP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 13 Weeks | |
| Contact Plating | Gold, Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TSSOP (0.173, 4.40mm Width) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Voltage - Supply | 1.8V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Terminal Pitch | 0.65mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | M24128 | |
| Pin Count | 8 | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Interface | 2-Wire, I2C, Serial | |
| Memory Size | 128Kb 16K x 8 | |
| Nominal Supply Current | 2.5mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Clock Frequency | 1MHz | |
| Access Time | 450ns | |
| Memory Format | EEPROM | |
| Memory Interface | I2C | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 128 kb | |
| Serial Bus Type | I2C | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Height | 1mm | |
| Length | 3mm | |
| Width | 4.4mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

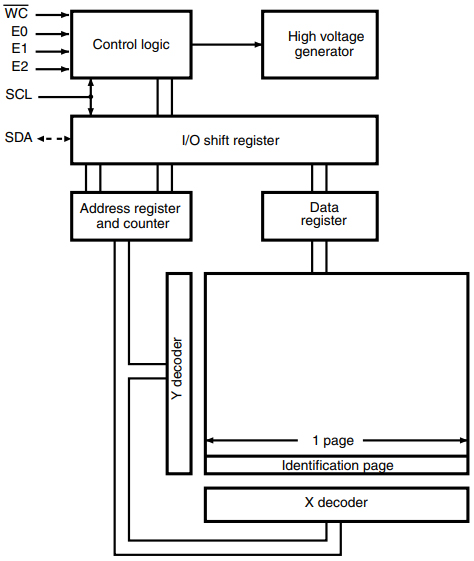

The following is the Block Diagram of M24128-BR.
Block diagram

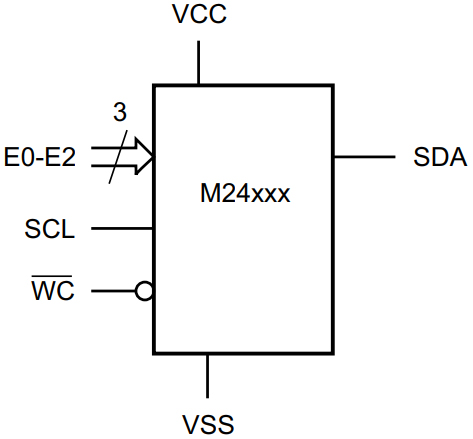

The following is the Logic Diagram of M24128-BR.
Logic diagram
| Model number | Manufacturer | Description |
| M24128-BRDW6/P | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 |
| M24128-BRDW6PP | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |
| M24128-BRDW3/P | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 |
| M24128-BRDW3TP/B | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |
| M24128-BRDW6T/P | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 |
| M24128-BRDW3TP | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8 |
| M24128-BRDW3G/P | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |
| M24128-BRDW3TP/P | STMicroelectronics | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |

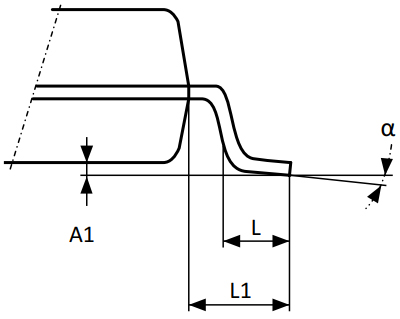

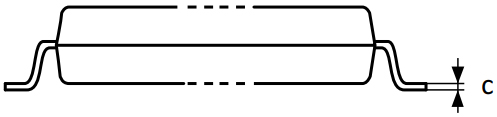

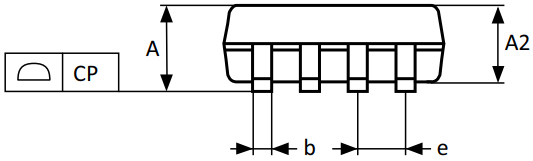

The following diagrams show the M24128-BR Package.
View A
View B
View C
View D
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
