M24C01-R I2C bus EEPROM: Pinout, Features and Datasheet

Memory M24C01 Non-Volatile 8-TSSOP (0.173, 4.40mm Width) 1Kb 128 x 8 EEPROM -40°C~85°C TA 1.8V~5.5V I2C 2.5V 400kHz 0.65mm IC EEPROM 1KBIT 400KHZ 8TSSOP

84

Nov 17, 2021

Asa Arnold

What Is EEPROM?

Memory M24C01 Non-Volatile 8-TSSOP (0.173, 4.40mm Width) 1Kb 128 x 8 EEPROM -40°C~85°C TA 1.8V~5.5V I2C 2.5V 400kHz 0.65mm IC EEPROM 1KBIT 400KHZ 8TSSOP

The M24C01 is a 1-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 × 8 bits. The M24C01-R can be accessed with a supply voltage from 1.8 V to 5.5 V. The device operates with a maximum clock frequency of 400 kHz. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

M24C01-RDW6TP

951In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.25926$0.26
10+ $0.24459$2.45
100+ $0.23074$23.07
500+ $0.21768$108.84
1000+ $0.20536$205.36
Unit Price:$0.25926
Subtotal: $0.26
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

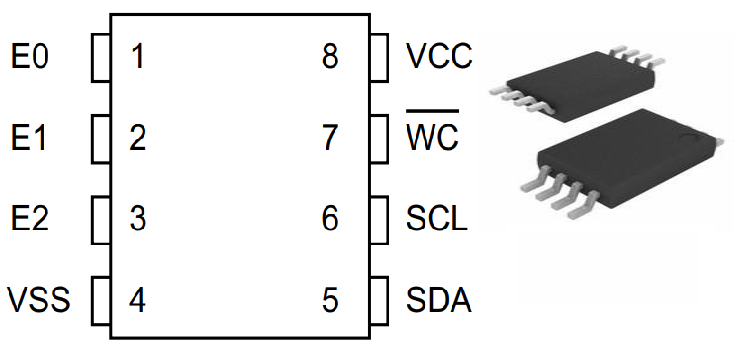

M24C01-R Pinout

M24C01-R CAD Model

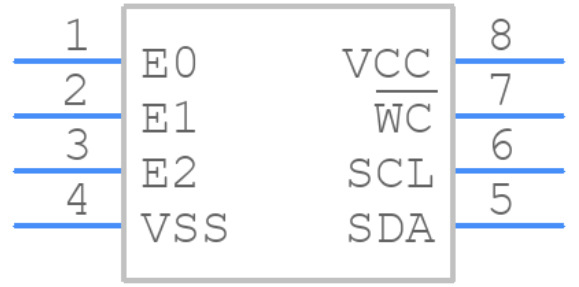

PCB Symbol

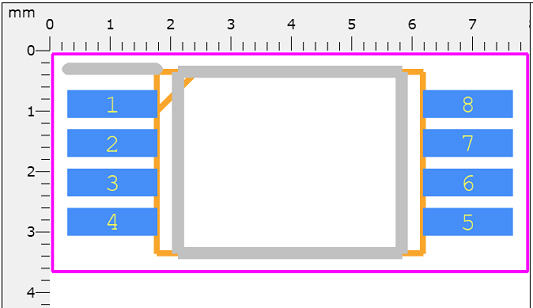

PCB Footprint

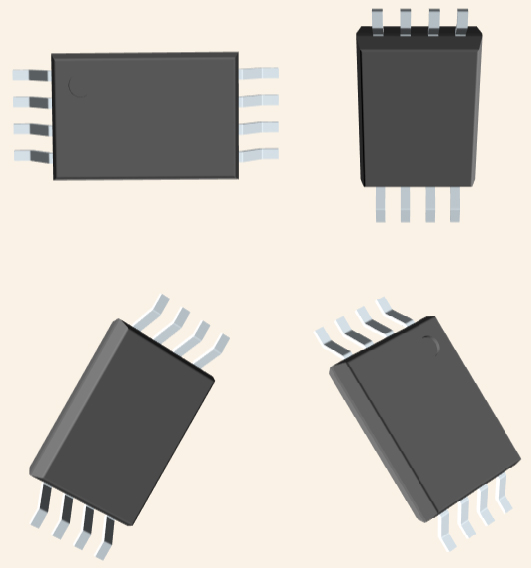

3D Model

M24C01-R Overview

The M24C01 is a 1-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 × 8 bits. The M24C01-R can be accessed with a supply voltage from 1.8 V to 5.5 V. The device operates with a maximum clock frequency of 400 kHz. The device supports the I2C protocol. The device that controls the data transfer is known as the bus master, and the other as the slave device. A data transfer can only be initiated by the bus master, which will also provide the serial clock for synchronization. The device is always a slave in all communications.

This article provides you with a basic overview of the M24C01-R I²C bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M24C01-R is.

M24C01-R Features

● Compatible with I2C bus modes:

   ◆ 400 kHz

   ◆ 100 kHz

● Memory array:

   ◆ 1 Kbit (128 bytes) of EEPROM

   ◆ 2 Kbit (256 bytes) of EEPROM

   ◆ Page size: 16 byte

● Single supply voltage: 1.8 V to 5.5 V

● Write:

   ◆ Byte Write within 5 ms

   ◆ Page Write within 5 ms

● Operating temperature range: from -40 °C up to +85 °C

● Random and sequential Read modes

● Write protect of the whole memory array

● Enhanced ESD/Latch-Up protection

● More than 4 million Write cycles

● More than 200-years data retention

Specifications

STMicroelectronics M24C01-RDW6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C01-RDW6TP.

M24C01-RDW6TP Tech Specifications

STMicroelectronics M24C01-RDW6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C01-RDW6TP.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 7 months ago)
Factory Lead Time13 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case8-TSSOP (0.173, 4.40mm Width)
Number of Pins8Pins
Memory TypesNon-Volatile
Usage LevelIndustrial grade
Operating Temperature-40°C~85°C TA
PackagingTape & Reel (TR)
JESD-609 Codee4
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Voltage - Supply1.8V~5.5V
Product Attribute Attribute Value
Terminal PositionDUAL
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage2.5V
Terminal Pitch0.65mm
Time@Peak Reflow Temperature-Max (s)30
Base Part NumberM24C01
Pin Count8
Supply Voltage-Max (Vsup)5.5V
Power Supplies2/5V
Interface2-Wire, I2C, Serial
Memory Size1Kb 128 x 8
Nominal Supply Current800μA
Clock Frequency400kHz
Access Time900ns
Memory FormatEEPROM
Memory InterfaceI2C
Product Attribute Attribute Value
Write Cycle Time - Word, Page5ms
Density1 kb
Standby Current-Max0.000001A
Serial Bus TypeI2C
Endurance1000000 Write/Erase Cycles
Write Cycle Time-Max (tWC)5ms
Data Retention Time-Min40
Write ProtectionHARDWARE
I2C Control Byte1010DDDR
Height1mm
Length3mm
Width4.4mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

M24C01-R Functional Block Diagram

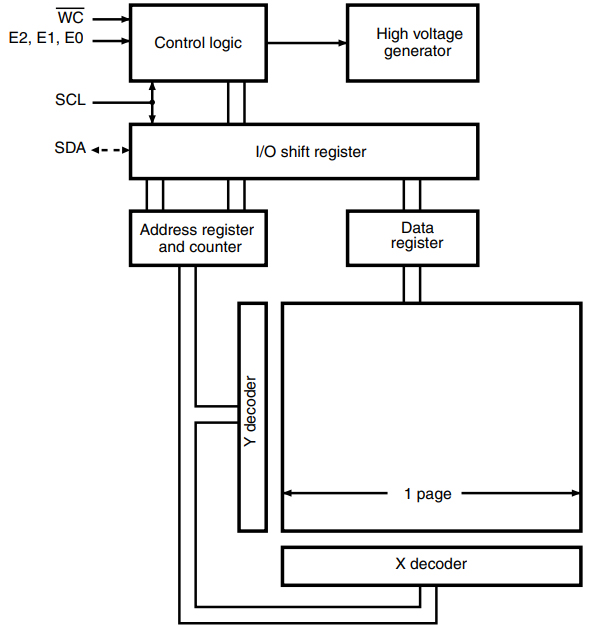

Block diagram

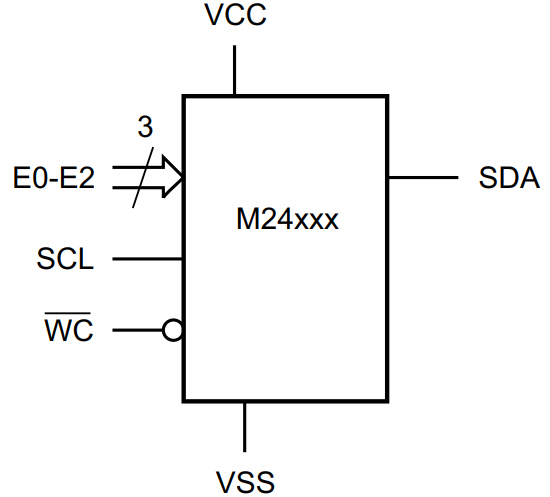

Logic diagram

M24C01-R Equivalent

            Model number                    Manufacturer                                          Description
M24C01-RDW6 STMicroelectronics 128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, TSSOP-8
M24C01-RDW6G STMicroelectronics 128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8
M24C01-RDW6P STMicroelectronics 128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8
M24C01-RDW6TG STMicroelectronics 128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8

M24C01-R Package

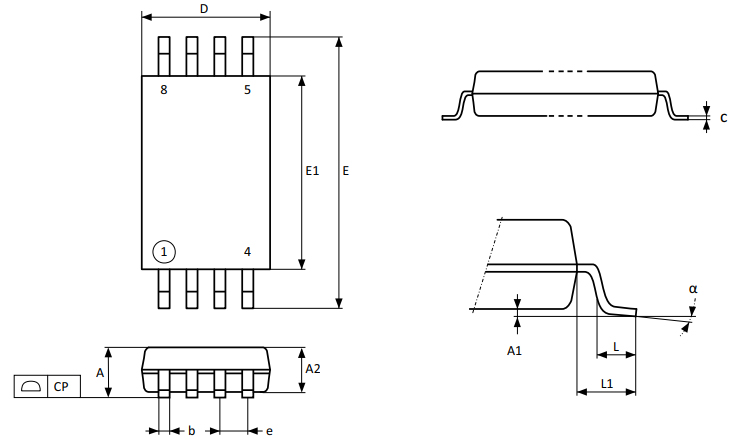

Package outline

M24C01-R Manufacturer

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.

Datasheet PDF

Download datasheets and manufacturer documentation for STMicroelectronics M24C01-RDW6TP.

M24C01-RDW6TP Documents

Download datasheets and manufacturer documentation for M24C01-RDW6TP

Frequently Asked Questions

Does the M24C01-R device support I²C protocol?
The M24C01-R device supports the I²C protocol. Any device that sends data on to the bus is defined to be a transmitter, and any device that reads the data to be a receiver.
About the M24C01-R, what are the requirements for starting communication between the bus master and slave?
To start communication between the bus master and the slave device, the bus master must initiate a Start condition. Following this, the bus master sends the device select code.
About the M24C01-R, what is the bus master and what is the slave?
The device that controls the data transfer is known as the bus master, and the other as the slave device. A data transfer can only be initiated by the bus master, which will also provide the serial clock for synchronization.
FAQ
Does the M24C01-R device support I²C protocol?
The M24C01-R device supports the I²C protocol. Any device that sends data on to the bus is defined to be a transmitter, and any device that reads the data to be a receiver.
About the M24C01-R, what are the requirements for starting communication between the bus master and slave?
To start communication between the bus master and the slave device, the bus master must initiate a Start condition. Following this, the bus master sends the device select code.
About the M24C01-R, what is the bus master and what is the slave?
The device that controls the data transfer is known as the bus master, and the other as the slave device. A data transfer can only be initiated by the bus master, which will also provide the serial clock for synchronization.
