IC EEPROM 2KBIT 400KHZ 8SOIC The M24C02-F is a 2-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 256 × 8 bit.
122
Apr 1, 2022
Elroy Forster
What Is EEPROM?
IC EEPROM 2KBIT 400KHZ 8SOIC
The M24C02-F is a 2-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 256 × 8 bit. The M24C02-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V if the temperature is reduced to 0 °C/ 85 °C. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M24C02-FMN6P
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.32204 | $0.32 |
| 10+ | $0.30382 | $3.04 |
| 100+ | $0.28662 | $28.66 |
| 500+ | $0.2704 | $135.2 |
| 1000+ | $0.25509 | $255.09 |
The following figure is the diagram of M24C02-F Pinout.
Pinout
The followings are M24C02-F Symbol and Footprint.
Symbol
Footprint
The M24C02 is a 2-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 256 × 8 bit. The M24C02-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V if the temperature is reduced to 0 °C/ 85 °C. All these devices operate with a maximum clock frequency of 400 kHz.
This article provides you with a basic overview of the M24C02-F 2-Kbit serial I²C bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M24C02-F is.
● Compatible with I2C bus modes:
◆ 400 kHz
◆ 100 kHz
● Memory array:
◆ 2 Kbit (256 bytes) of EEPROM
◆ Page size: 16 byte
● Single supply voltage:
◆ M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
● Write:
◆ Byte Write within 5 ms
◆ Page Write within 5 ms
● Operating temperature range: from -40 °C up to +85 °C
● Random and sequential Read modes
● Write protect of the whole memory array
● Enhanced ESD/Latch-Up protection
● More than 4 million Write cycles
● More than 200-years data retention
● RoHS compliant and halogen-free
STMicroelectronics M24C02-FMN6P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C02-FMN6P.
STMicroelectronics M24C02-FMN6P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C02-FMN6P.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 13 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Memory Types | Non-Volatile | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Voltage - Supply | 1.7V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | M24C02 | |
| JESD-30 Code | R-PDSO-G8 | |
| Qualification Status | Not Qualified | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Power Supplies | 1.8/5V | |
| Supply Voltage-Min (Vsup) | 1.7V | |
| Interface | 2-Wire, I2C, Serial | |
| Memory Size | 2Kb 256 x 8 | |
| Operating Mode | SYNCHRONOUS | |
| Clock Frequency | 400kHz | |
| Access Time | 900ns | |
| Memory Format | EEPROM | |
| Memory Interface | I2C | |
| Organization | 256X8 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Width | 8 | |
| Write Cycle Time - Word, Page | 5ms | |
| Standby Current-Max | 0.000001A | |
| Memory Density | 2048 bit | |
| Serial Bus Type | I2C | |
| Endurance | 4000000 Write/Erase Cycles | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Data Retention Time-Min | 200 | |
| Write Protection | HARDWARE | |
| I2C Control Byte | 1010DDDR | |
| Length | 4.9mm | |
| Height Seated (Max) | 1.75mm | |
| Width | 3.9mm | |
| RoHS Status | ROHS3 Compliant |

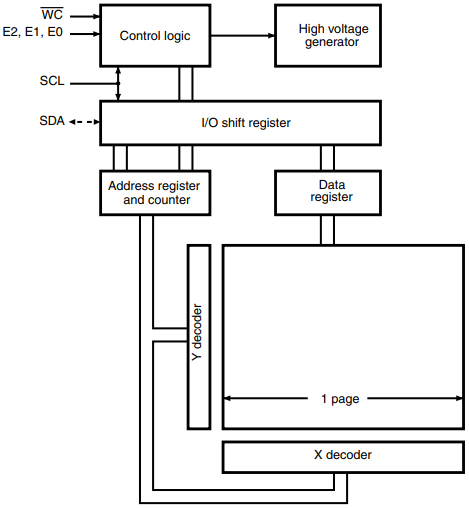

The following is the Block Diagram of M24C02-F.
Block diagram

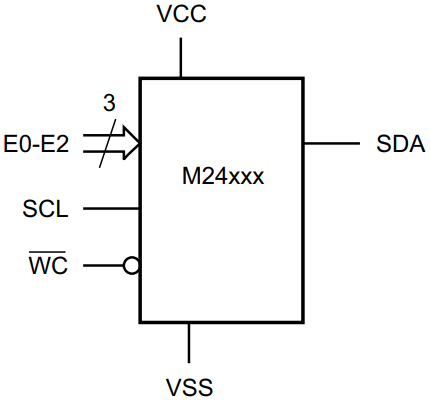

The following is the Logic diagram of M24C02-F.
Logic diagram

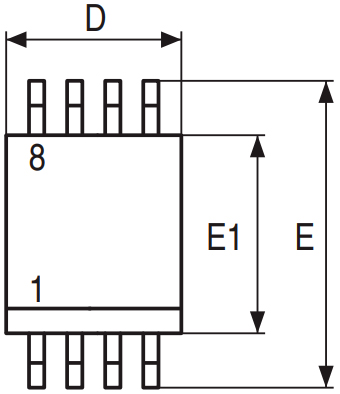

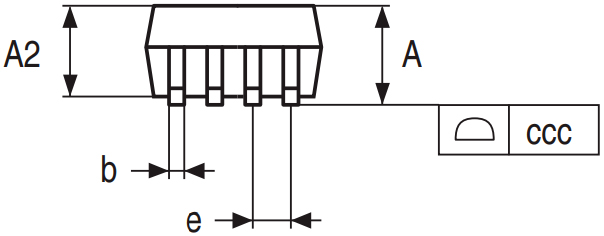

The following diagrams show the M24C02-F Package.
View A
View B
View C
View D

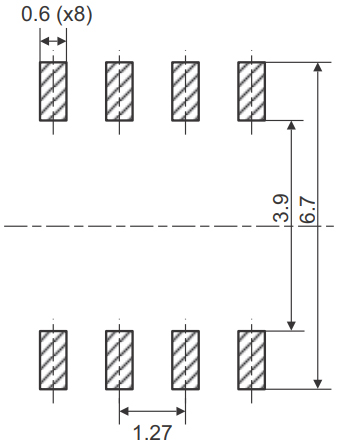

The following diagram shows the M24C02-F Package Recommended Footprint.
Package Recommended Footprint
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for M24C02-FMN6P
