What Is EEPROM?
Memory M24C16 Non-Volatile 8-SOIC (0.154, 3.90mm Width) 16Kb 2K x 8 EEPROM -40°C~85°C TA 1.8V~5.5V I2C 2.5V 400kHz 1.27mm IC EEPROM 16K I2C 400KHZ 8SO
The M24C16-R is a 16-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 K × 8 bits. The M24C16-R can be accessed (Read and Write) with a supply voltage from 1.8 V to 5.5 V. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M24C16-RMN6TP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.24769 | $0.25 |
| 10+ | $0.23367 | $2.34 |
| 100+ | $0.22045 | $22.05 |
| 500+ | $0.20797 | $103.99 |
| 1000+ | $0.1962 | $196.2 |

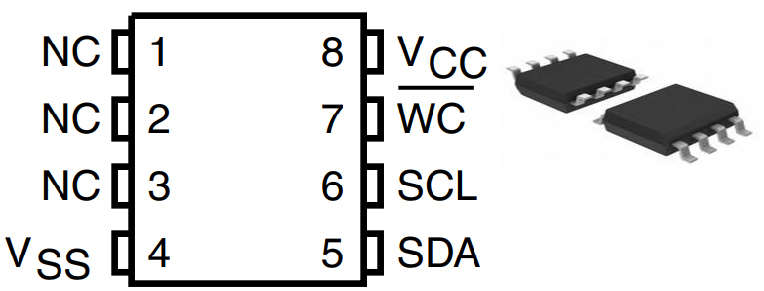

PCB Symbol

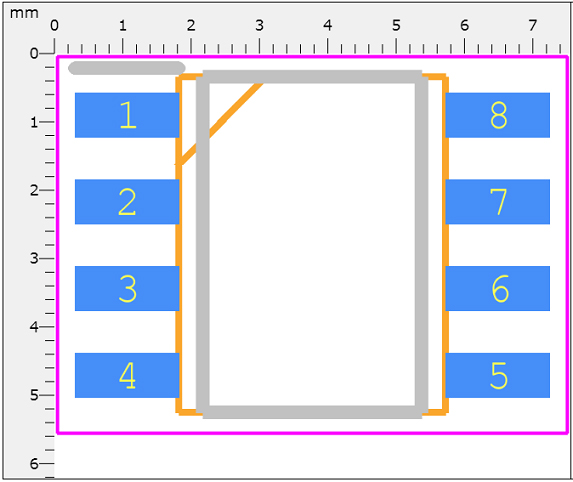

PCB Footprint

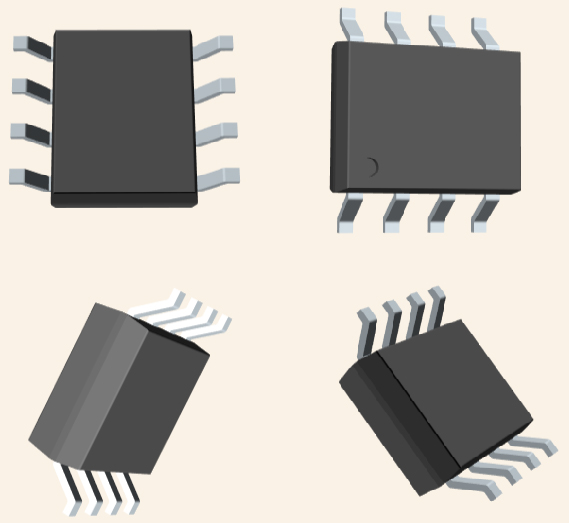

3D Model
The M24C16-R is a 16-Kbit I²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 K × 8 bits. The M24C16-R can be accessed (Read and Write) with a supply voltage from 1.8 V to 5.5 V. The device operates with a clock frequency of 400 kHz.
This article provides you with a basic overview of the M24C16-R 16-Kbit serial I²C bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M24C16-R is.
● Compatible with all I2C bus modes:
◆ 400 kHz ◆ 100 kHz
● Memory array:
◆ 16 Kbit (2 Kbyte) of EEPROM
◆ Page size: 16 byte
● Single supply voltage: 1.8 V to 5.5 V
● Write:
◆ Byte Write within 5 ms
◆ Page Write within 5 ms
● Operating temperature range: from -40 °C up to +85 °C
● Random and sequential Read modes
● Write protect of the whole memory array
● Enhanced ESD/Latch-Up protection
● More than 4 million Write cycles
● More than 200-years data retention
STMicroelectronics M24C16-RMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C16-RMN6TP.
STMicroelectronics M24C16-RMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C16-RMN6TP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) | |
| Factory Lead Time | 13 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 1.8V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | M24C16 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 5V | |
| Interface | 2-Wire, I2C, Serial | |
| Memory Size | 16Kb 2K x 8 | |
| Nominal Supply Current | 1mA | |
| Clock Frequency | 400kHz | |
| Access Time | 900ns | |
| Memory Format | EEPROM |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Interface | I2C | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 16 kb | |
| Standby Current-Max | 0.000001A | |
| Serial Bus Type | I2C | |
| Endurance | 1000000 Write/Erase Cycles | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Data Retention Time-Min | 40 | |
| Write Protection | HARDWARE | |
| I2C Control Byte | 1010MMMR | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

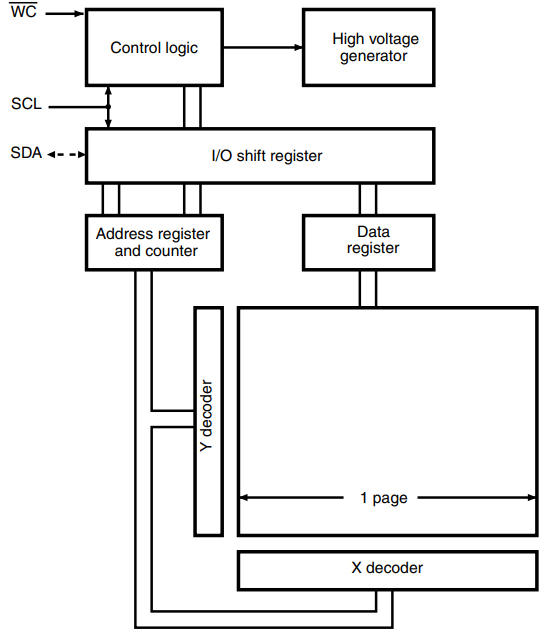

Block diagram
Logic diagram
| Model number | Manufacturer | Description |
| GT24C16-2ZLI-TR | Giantec Semiconductor Inc | EEPROM, 2KX8, Serial, CMOS, PDSO8, 3 X 4.40 MM, GREEN, MO-153AA, TSSOP-8 |
| M24C16-RCS5TP | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| BR24G16FV-3AGTE2 | ROHM Semiconductor | EEPROM |
| AT24C16N-10SU-1.8 | Microchip Technology Inc | EEPROM, 2KX8, Serial, CMOS, PDSO8 |
| M24C16-FCS5TG/S | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| AT24C16C-WWU11M | Atmel Corporation | EEPROM, 2KX8, Serial, CMOS |
| M24C16-RCS5G/S | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| BR24G16FVT-3GE2 | ROHM Semiconductor | EEPROM, 2KX8, Serial, CMOS, PDSO8, TSSOP-8 |
| 24AA16-I/CS16K | Microchip Technology Inc | 2K X 8 I2C/2-WIRE SERIAL EEPROM, PBGA5, CHIP SCALE PACKAGE-5 |
| M24C16-RCS5P/S | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |

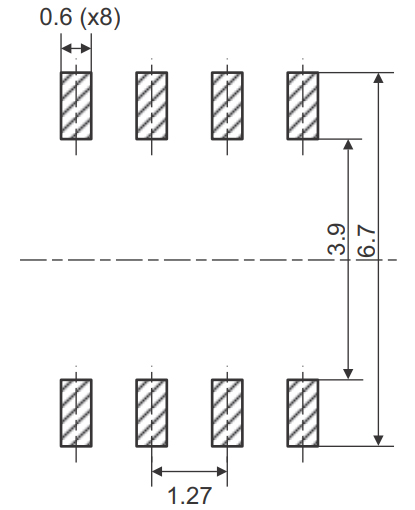

Package outline
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for M24C16-RMN6TP
