IC EEPROM 64KBIT 400KHZ 8SO The M24C64 is a 64-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 8 K × 8 bits. Over an ambient temperature range of -40 °C / +85 °C, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V. Furthermore,
137
Mar 7, 2022
Tyrone Evans
What Is EEPROM?
The M24C64 is a 64-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 8 K × 8 bits. Over an ambient temperature range of -40 °C / 85 °C, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M24C64-RMN6TP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.28321 | $0.28 |
| 10+ | $0.26718 | $2.67 |
| 100+ | $0.25205 | $25.21 |
| 500+ | $0.23779 | $118.9 |
| 1000+ | $0.22433 | $224.33 |

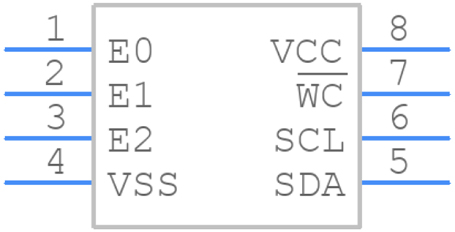

The following figure is the diagram of M24C64-R Pinout.
Pinout
The followings are M24C64-R Symbol, Footprint, and 3D Model.
PCB Symbol

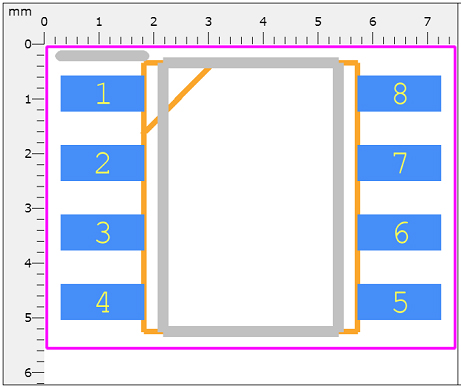

PCB Footprint

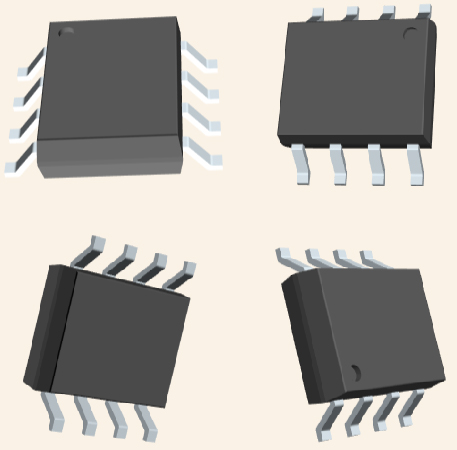

3D Model
The M24C64 is a 64-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 8 K × 8 bits. Over an ambient temperature range of -40 °C / +85 °C, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V.
This article provides you with a basic overview of the M24C64-R I²C bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M24C64-R is.
● Compatible with all I2C bus modes:
◆ 1 MHz
◆ 400 kHz
◆ 100 kHz
● Memory array:
◆ 64 Kbit (8 Kbyte) of EEPROM
◆ Page size: 32 byte
● Single supply voltage: 1.8 V to 5.5 V over –40 °C / +85 °C
● Write:
◆ Byte Write within 5 ms
◆ Page Write within 5 ms
● Random and sequential Read modes
● Write protect of the whole memory array
● Enhanced ESD/Latch-Up protection
● More than 4 million Write cycles
● More than 200-years data retention
STMicroelectronics M24C64-RMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24C64-RMN6TP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 13 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Manufacturer Package Identifier | SO8N-SO-A | |
| Memory Types | Non-Volatile | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Voltage - Supply | 1.8V~5.5V | |
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Terminal Pitch | 1.27mm | |
| Base Part Number | M24C64 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 5V | |
| Memory Size | 64Kb 8K x 8 | |
| Nominal Supply Current | 3mA | |
| Clock Frequency | 1MHz | |
| Access Time | 450ns | |
| Memory Format | EEPROM | |
| Memory Interface | I2C | |
| Write Cycle Time - Word, Page | 5ms |
| Product Attribute | Attribute Value | |
|---|---|---|
| Density | 64 kb | |
| Standby Current-Max | 0.000001A | |
| Parallel/Serial | SERIAL | |
| Serial Bus Type | I2C | |
| Endurance | 1000000 Write/Erase Cycles | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Data Retention Time-Min | 40 | |
| Write Protection | HARDWARE | |
| Ambient Temperature Range High | 85°C | |
| I2C Control Byte | 1010DDDR | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Block Diagram of M24C64-R.
Block diagram

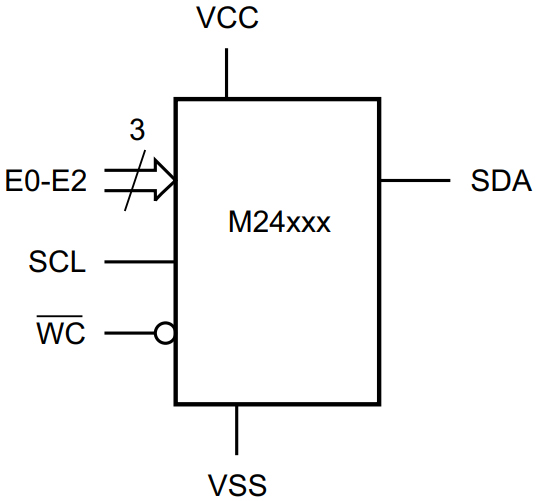

The following is the Logic diagram of M24C64-R.
Logic diagram
| Model number | Manufacturer | Description |
| M24C64-RMN6G/B | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M24C64-RMN5G/B | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M24C64-RMN5G/P | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M24C64-DRMN8G/K | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| M24C64-DRMN8P/K | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| M24C64-RMN1 | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 |
| M24C64-RMN5/B | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 |
| M24C64-RMN3T/C | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 |
| M24C64-DRMN8TP/K | STMicroelectronics | 64-Kbit serial I2C bus EEPROM 105°C operation |
| M24C64-RMN3/B | STMicroelectronics | 8KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 |

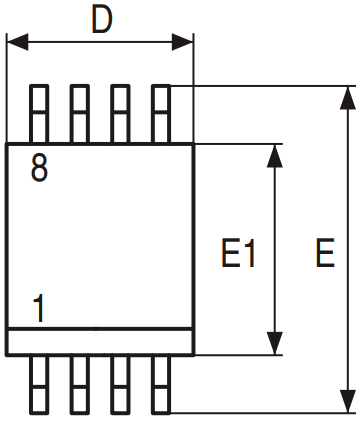

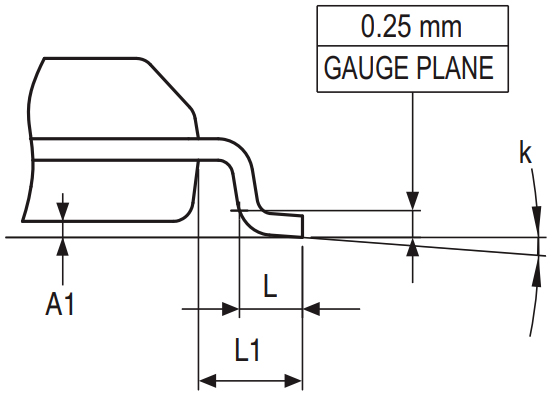

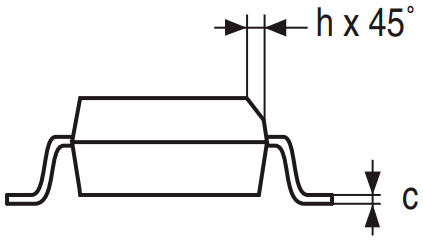

The following diagrams show the M24C64-R Package.
View A
View B
View C
View D

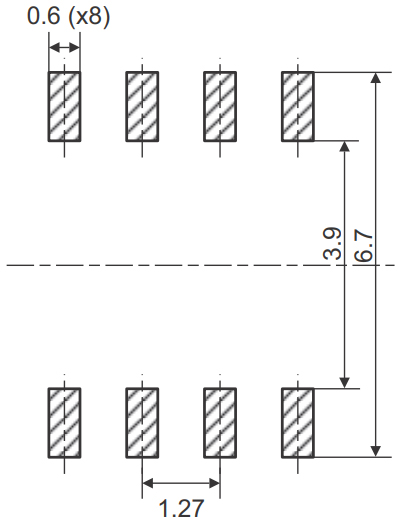

The following diagram shows the M24C64-R Package Recommended Footprint.
Package Recommended Footprint
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for M24C64-RMN6TP
