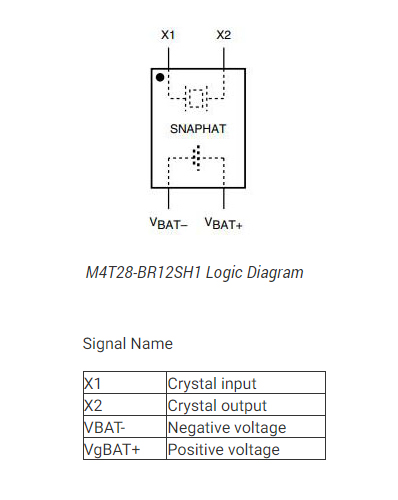

M4T28-BR12SH1 Battery: M4T28-BR12SH1 Datasheet, Logic Diagram

The M4T28-BR12SH1   SNAPHAT  top is a detachable lithium power source. The SNAPHAT  top contains both the battery and crystal and is designed to be snapped on after the SOIC  is surface mounted on the PC board. Thus the two-piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface mount process.

 Provides battery backup power  for the serial real-time clock, non-volatile TIMEKEEPER  ® and supervisor devices in the 28 - or 44 -pin SNAPHAT® SOIC package
 Removable battery avoids heat associated with the surface-mount process
 Snaps directly onto surface-mounted SNAPHAT SOIC
 Choice of battery capacities
– M4T28-BR12SH = 48  mAh
– M4T32-BR12SH  = 120  mAh
 Keyed insertion to ensure proper assembly
 Removable for replacement and proper disposal
 Pb-free package
 Available in Ecopack® packages, tubes

• Clock & Timing

• Consumer Electronics

• Embedded Design

• Development

• Portable Devices

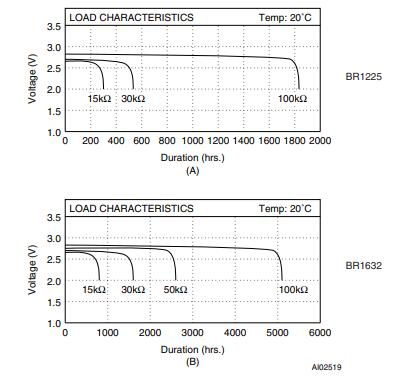

The figure shows below illustrates the lithium coin cell discharge rate for a given load. This demonstrates the characteristically flat voltage level supplied by the battery until very near the end of its life. These discharge levels have been greatly accelerated in comparison to the normal, actual usage.

Battery discharge rates

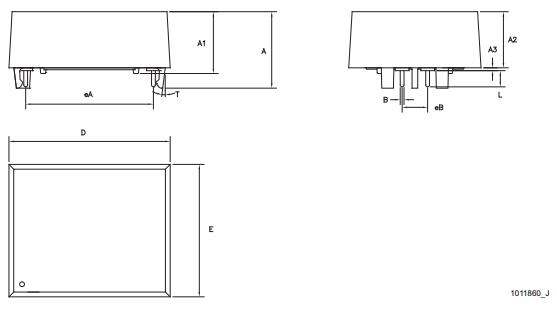

M4T28-BR12SH1 Package

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip  (SoC) technology and its products play a key role in enabling today's convergence trends.

STMicroelectronics M4T28-BR12SH1 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M4T28-BR12SH1.
