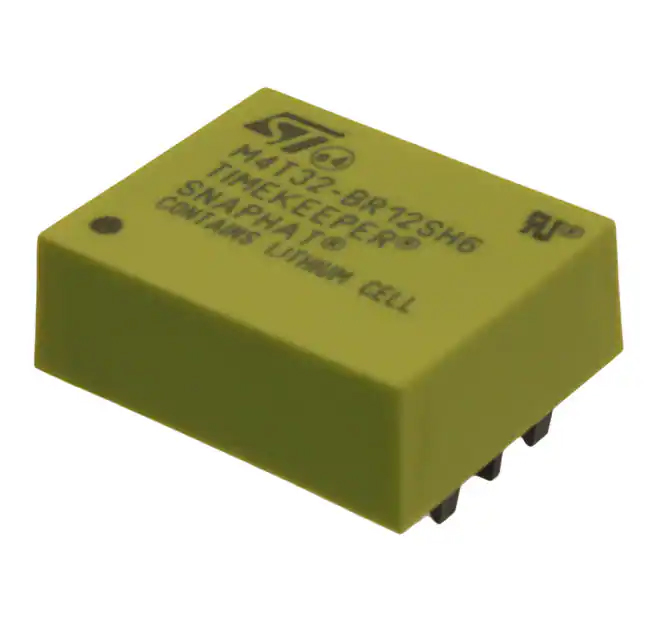

STMICROELECTRONICS - M4T32-BR12SH6 - BATTERY & CRYSTAL, LITHIUM SNAPHAT-4
M4T32-BR12SH6 is a Real-time clock and TIMEKEEPER® SNAPHAT® battery with Crystal. This post will unlock its pinout, datasheet, feature and more about M4T32-BR12SH6.
M4T32-BR12SH6 Battery: Battery with CrystaL, Datasheet, and Feature
STMICROELECTRONICS - M4T32-BR12SH6 - BATTERY & CRYSTAL, LITHIUM SNAPHAT-4 M4T32-BR12SH6 is a Real-time clock and TIMEKEEPER? SNAPHAT? battery with Crystal.
1070
Feb 7, 2022
Molly Nell
M4T32-BR12SH6
3600In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $15.18437 | $15.18 |
| 10+ | $14.32488 | $143.25 |
| 100+ | $13.51404 | $1351.4 |
| 500+ | $12.74909 | $6374.55 |
| 1000+ | $12.02745 | $12027.45 |
Unit Price:$15.18437
Subtotal: $15.18
Quick Links

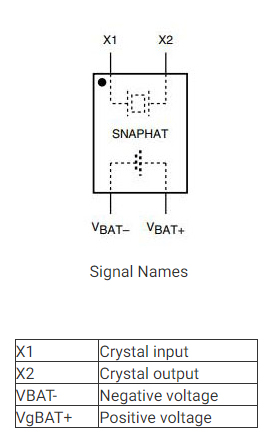

M4T32-BR12SH6 Logic Diagram
M4T32-BR12SH6 Overview
The M4T32-BR12SH6 SNAPHAT ® top is a detachable lithium power source for ST’s serial real-time clock and non-volatile TIMEKEEPER ® surface-mount SOIC package (28- and 44 -pin). The SNAPHAT top contains both the battery and crystal and is designed to be “snapped on” after the SOIC is surface mounted on the PC board. Thus the two-piece solution prevents the battery and crystal from being exposed to the high SNAPHAT temperatures of the surface-mount process.
M4T32-BR12SH6 Feature
Provides battery backup power for the serial real-time clock, non-volatile TIMEKEEPER ® and supervisor devices in the 28 - or 44 -pin SNAPHAT® SOIC package
Removable battery avoids heat associated with the surface-mount process
Snaps directly onto surface-mounted SNAPHAT SOIC
Choice of battery capacities
– M4T28-BR12SH = 48 mAh
– M4T32-BR12SH = 120 mAh
Keyed insertion to ensure proper assembly
Removable for replacement and proper disposal
Pb-free package
Available in Ecopack® packages, tubes
M4T32-BR12SH6 Application
-
Security
-
Communications
-
Networking
M4T32-BR12SH6 Battery Characteristics

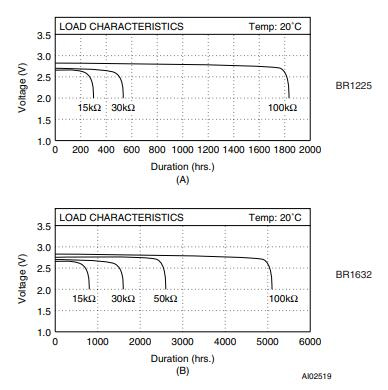

M4T32-BR12SH6 Battery Discharge Rate
The figure above illustrates the lithium coin cell discharge rate for a given load. This demonstrates the characteristically flat voltage level supplied by the battery until very near the end of its life. These discharge levels have been greatly accelerated in comparison to the normal, actual usage.

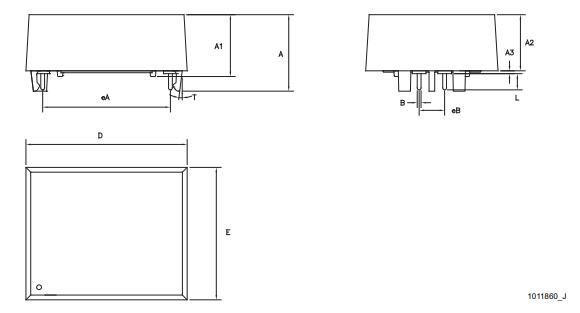

M4T32-BR12SH6 Package
M4T32-BR12SH6 Package
M4T32-BR12SH6 Manufacturer
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivalled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Specifications
STMicroelectronics M4T32-BR12SH6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M4T32-BR12SH6.
M4T32-BR12SH6 Tech Specifications
M4T32-BR12SH6 Tech Specifications
STMicroelectronics M4T32-BR12SH6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M4T32-BR12SH6.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Gold | |
| Mount | Through Hole | |
| Package / Case | SOIC | |
| Number of Pins | 4Pins | |
| Weight | 1.8g | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Bulk | |
| Series | Timekeeper®, Snaphat® | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 4Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Battery and Crystal | |
| Terminal Position | DUAL | |
| Terminal Form | PIN/PEG | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 2.8V | |
| Depth | 21.84mm | |
| Frequency | 32.768kHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | M4T32 | |
| Pin Count | 4 | |
| Output Voltage | 2.8V | |
| Lead Length | 2.29mm | |
| Operating Supply Voltage | 3V | |
| ESR (Equivalent Series Resistance) | 60kOhm | |
| Supply Voltage-Max (Vsup) | 3V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Lead Diameter | 560 μm | |
| Load Capacitance | 12.5pF | |
| Frequency Tolerance | 0.0035% | |
| Battery Chemistry | Lithium | |
| Capacity | 120mAh | |
| Number of Timers | 1Timer | |
| Rechargeability | Non-Rechargeable | |
| Ambient Temperature Range High | 85°C | |
| Height | 8.51mm | |
| Length | 21.84mm | |
| Width | 18.03mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics M4T32-BR12SH6.
M4T32-BR12SH6 Documents
M4T32-BR12SH6 Documents
Download datasheets and manufacturer documentation for M4T32-BR12SH6
MSDS Material Safety Datasheet
M4Txx-BR12SH Rayovac MSDS
Frequently Asked Questions
What is a detachable lithium power source for STs serial real-time clock and non-volatile TIMEKEEPER?
M4T32-BR12SH6 SNAPHAT ® top.
Where is the SOIC surface mounted?
the PC board.
What prevents the battery and crystal from being exposed to the high SNAPHAT temperatures of the surface-mount process?
the two-piece solution.
What is the role of a timekeeper?
A timekeeper in a meeting is a person who takes on the role of measuring or recording the amount of time taken to do something. The timekeeper essentially helps the facilitator move the group through the agenda, reducing the amount of stress on the facilitator or leader who is managing the discussion.
What is M4T32-BR12SH6?
The M4T32-BR12SH6 is a 120mAh detachable Lithium coin Cell Battery with crystal. The detachable Lithium power source for ST's serial real-time clock. The SNAPHAT® top contains both the battery and crystal and is designed to be snapped on after the SOIC is surface mounted on the PC board. Thus the 2-piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface-mount process.
FAQ
What is a detachable lithium power source for STs serial real-time clock and non-volatile TIMEKEEPER?
M4T32-BR12SH6 SNAPHAT ® top.
Where is the SOIC surface mounted?
the PC board.
What prevents the battery and crystal from being exposed to the high SNAPHAT temperatures of the surface-mount process?
the two-piece solution.
What is the role of a timekeeper?
A timekeeper in a meeting is a person who takes on the role of measuring or recording the amount of time taken to do something. The timekeeper essentially helps the facilitator move the group through the agenda, reducing the amount of stress on the facilitator or leader who is managing the discussion.
What is M4T32-BR12SH6?
The M4T32-BR12SH6 is a 120mAh detachable Lithium coin Cell Battery with crystal. The detachable Lithium power source for ST's serial real-time clock. The SNAPHAT® top contains both the battery and crystal and is designed to be snapped on after the SOIC is surface mounted on the PC board. Thus the 2-piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface-mount process.
