DIODE SCHOTTKY 60A 60V TO-247AD
M6060P-E3/45 is a high-performance Schottky Rectifier with 30A to 40A from Vishay Semiconductor. This article will unlock more detail about M6060P-E3/45 .
M6060P-E3/45 Schottky Rectifier: Datasheet, Pinout, Specifications
DIODE SCHOTTKY 60A 60V TO-247AD M6060P-E3/45 is a high-performance Schottky Rectifier with 30A to 40A from Vishay Semiconductor.
49
Aug 15, 2021
Phyllis Parker
M6060P-E3/45
Inquiry
Min.: 1 Mult.: 1
Quick Links

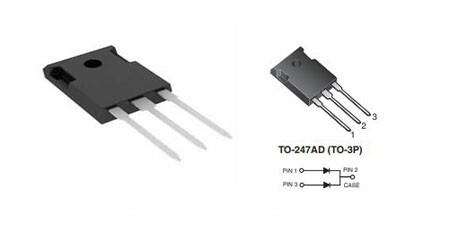

M6060P-E3/45 Pinout
Specifications
Vishay Semiconductor Diodes Division M6060P-E3/45 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Diodes Division M6060P-E3/45.
M6060P-E3/45 Tech Specifications
M6060P-E3/45 Tech Specifications
Vishay Semiconductor Diodes Division M6060P-E3/45 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Diodes Division M6060P-E3/45.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-3P-3, SC-65-3 | |
| Number of Pins | 3Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| Packaging | Tube | |
| Published | 2016 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | MATTE TIN |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Applications | EFFICIENCY | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| HTS Code | 8541.10.00.80 | |
| Terminal Position | SINGLE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Pin Count | 2 | |
| Element Configuration | Common Cathode | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 600μA @ 60V | |
| Voltage - Forward (Vf) (Max) @ If | 640mV @ 30A | |
| Forward Current | 60A | |
| Max Reverse Leakage Current | 600μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Temperature - Junction | -65°C~150°C | |
| Max Surge Current | 350A | |
| Forward Voltage | 640mV | |
| Max Reverse Voltage (DC) | 60V | |
| Average Rectified Current | 30A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 600μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 60V | |
| JEDEC-95 Code | TO-247AD | |
| Peak Non-Repetitive Surge Current | 350A | |
| Diode Configuration | 1 Pair Common Cathode | |
| Height | 21.3mm | |
| Length | 16.4mm | |
| Width | 5.16mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
M6060P-E3/45 Features
• Power pack
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High forward surge capability
• High frequency operation
• Solder dip 275 °C max.10 s, per JESD 22-B106
M6060P-E3/45 Application
-
Low voltage
-
High-frequency rectifier of switching mode power supplies
-
Freewheeling diodes
-
DC/DC converters
-
Polarity protection application

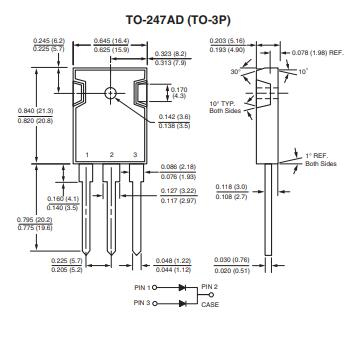

M6060P-E3/45 Dimensions
M6060P-E3/45 Manufacturer
Vishay's product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets.
Datasheet PDF
Download datasheets and manufacturer documentation for Vishay Semiconductor Diodes Division M6060P-E3/45.
M6060P-E3/45 Documents
M6060P-E3/45 Documents
Download datasheets and manufacturer documentation for M6060P-E3/45
Frequently Asked Questions
What package is M6060P-E3/45 available in?
It is available in TO-3P-3, SC-65-3 package.
What is Schottky Rectifier?
Schottky rectifiers have been used for over 25 years in the power supply industry. The primary advantages are very low forward voltage drop and switching speeds that approach zero time making them ideal for output stages of switching power supplies. This latter feature has also stimulated their additional use in very high-frequency applications including very low power involving signal and switching diode requirements of less than 100 picoseconds. These require small Schottky devices with low capacitance.
FAQ
What package is M6060P-E3/45 available in?
It is available in TO-3P-3, SC-65-3 package.
What is Schottky Rectifier?
Schottky rectifiers have been used for over 25 years in the power supply industry. The primary advantages are very low forward voltage drop and switching speeds that approach zero time making them ideal for output stages of switching power supplies. This latter feature has also stimulated their additional use in very high-frequency applications including very low power involving signal and switching diode requirements of less than 100 picoseconds. These require small Schottky devices with low capacitance.
