What Is EEPROM?
Memory M93C86 Non-Volatile 8-SOIC (0.154, 3.90mm Width) 16Kb 2K x 8 1K x 16 EEPROM -40°C~85°C TA 2.5V~5.5V SPI 5V 2MHz 1.27mm IC EEPROM 16KBIT 2MHZ 8SO
M93C86 (16 Kbit) is Electrically Erasable PROgrammable Memory (EEPROM) device accessed through the MICROWIRE™ bus protocol. The memory array can be configured either in bytes (x8b) or in words (x16b). Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M93C86-WMN6TP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.40923 | $0.41 |
| 10+ | $0.38606 | $3.86 |
| 100+ | $0.36421 | $36.42 |
| 500+ | $0.34359 | $171.8 |
| 1000+ | $0.32415 | $324.15 |
PCB Symbol
PCB Footprint

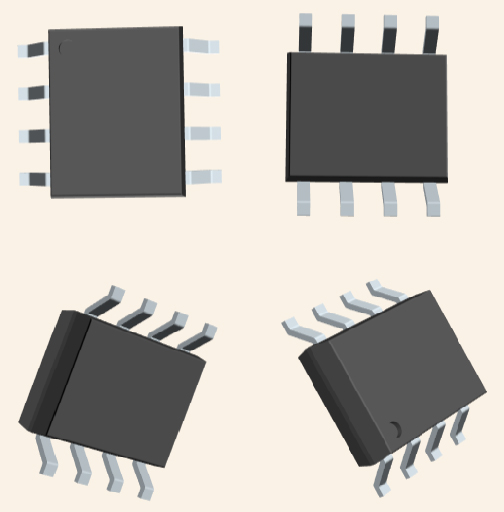

3D Model
M93C86 (16 Kbit) is Electrically Erasable PROgrammable Memory (EEPROM) device accessed through the MICROWIRE™ bus protocol. The memory array can be configured either in bytes (x8b) or in words (x16b). The M93Cx6-W devices operate within a voltage supply range from 2.5 V to 5.5 V. All these devices operate with a clock frequency of 2 MHz (or less), over an ambient temperature range of - 40 °C / + 85 °C.
This article provides you with a basic overview of the M93C86-W EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M93C86-W is.
● Industry standard MICROWIRE™ bus
● Single supply voltage: 2.5 V to 5.5 V
● Dual organization: by word (x16) or byte (x8)
● Programming instructions that work on: byte, word or entire memory
● Self-timed programming cycle with auto-erase: 5 ms
● READY signal during programming
● 2 MHz clock rate
● Sequential read operation
● Enhanced ESD/latch-up behavior
● More than 4 million write cycles
● More than 200-year data retention
● Packages: ECOPACK2®
STMicroelectronics M93C86-WMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M93C86-WMN6TP.
STMicroelectronics M93C86-WMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M93C86-WMN6TP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 13 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 2.5V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | M93C86 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 5V | |
| Interface | Serial | |
| Memory Size | 16Kb 2K x 8 1K x 16 | |
| Nominal Supply Current | 2mA | |
| Clock Frequency | 2MHz | |
| Access Time | 200 ns | |
| Memory Format | EEPROM |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Interface | SPI | |
| Organization | 1KX16 | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 16 kb | |
| Standby Current-Max | 0.00001A | |
| Serial Bus Type | MICROWIRE | |
| Endurance | 1000000 Write/Erase Cycles | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Data Retention Time-Min | 40 | |
| Write Protection | SOFTWARE | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Logic diagram
| Model number | Manufacturer | Description |
| M93C86-WMN3TP/S | STMicroelectronics | 1K X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M93C86-WMN3TP/W | STMicroelectronics | 1K X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M93C86-WMN3T | STMicroelectronics | 1KX16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 |
| M93C86-WMN7TP | STMicroelectronics | 1KX16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M93C86-WMN3 | STMicroelectronics | 1KX16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 |
| M93C86-WMN3TG/S | STMicroelectronics | 1K X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M93C86-WMN3TG/W | STMicroelectronics | 1K X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| M93C86-WMN3TP | STMicroelectronics | 1KX16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SO-8 |
| M93C86-WMN7T | STMicroelectronics | 1KX16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 |
| M93C86-WMN3G | STMicroelectronics | 1KX16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8 |

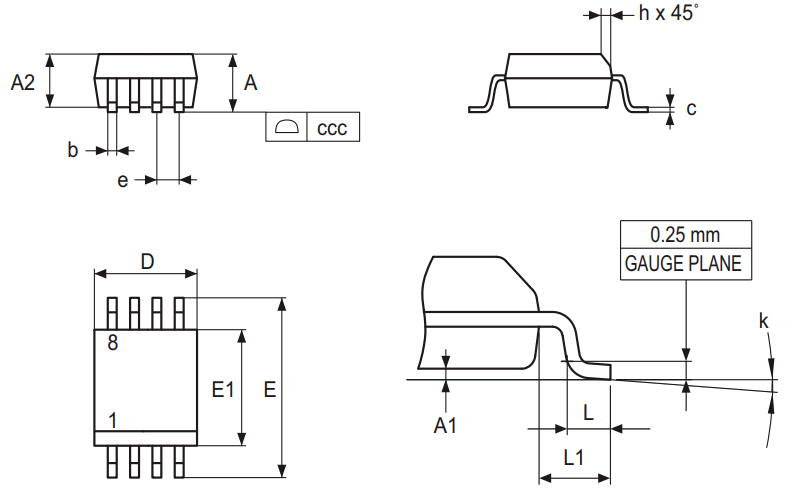

Package outline

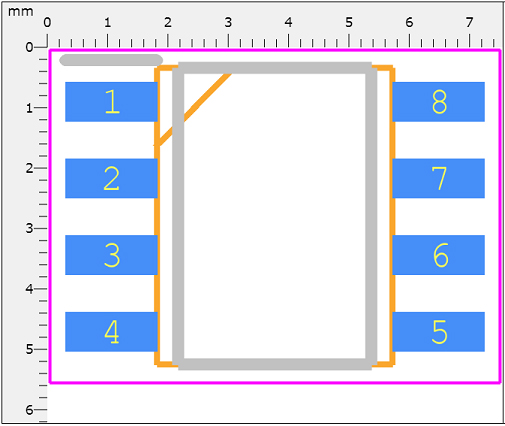

Package recommended footprint
