Arduino SPI Communication with a EEprom ST M95020
Memory M95020 Non-Volatile 8-SOIC (0.154, 3.90mm Width) 2Kb 256 x 8 EEPROM -40°C~85°C TA 2.5V~5.5V SPI 5V 20MHz 1.27mm IC EEPROM 2KBIT 10MHZ 8SO
The M95020 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 256 x 8 bits respectively, accessed through the SPI bus. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M95020-WMN6TP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.44744 | $0.45 |
| 10+ | $0.42212 | $4.22 |
| 100+ | $0.39822 | $39.82 |
| 500+ | $0.37568 | $187.84 |
| 1000+ | $0.35442 | $354.42 |

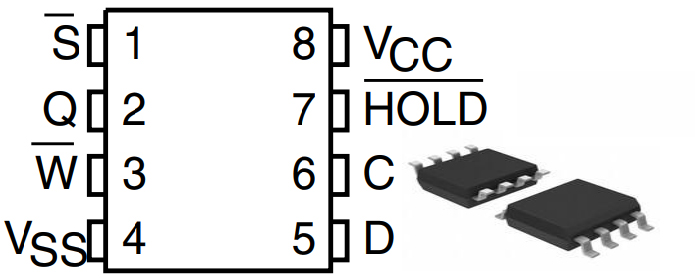

The following figure is the diagram of M95020-W pinout.
Pinout
The followings are M95020-W Footprint, and 3D Model.

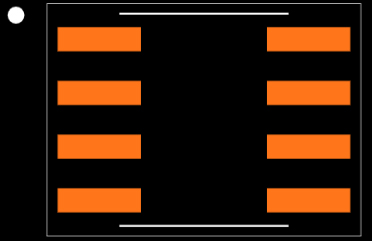

Footprint

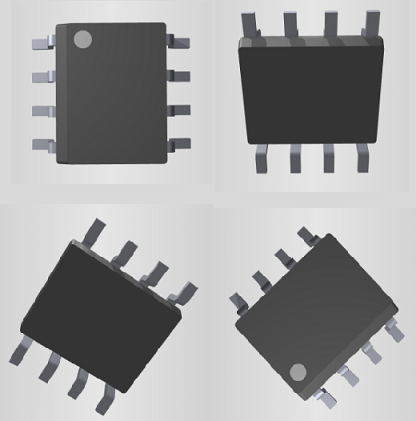

3D Model
The M95020 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 256 x 8 bits respectively, accessed through the SPI bus. The M950x0-W can operate with a supply voltage from 2.5 V to 5.5 V, over an ambient temperature range of -40 °C / +85 °C.
This article provides you with a basic overview of the M95020-W EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M95020-W is.
● Compatible with SPI bus serial interface (Positive clock SPI modes)
● Single supply voltage: 2.5 V to 5.5 V
● High-speed 20 MHz clock rate, 5 ms write time
● Memory array:
◆ 4 Kbit (512 bytes) of EEPROM
◆ Page size: 16 bytes
◆ Write protection by block: whole memory
◆ Additional Write lockable Page (Identification page)
● Enhanced ESD protection
● More than 4 million write cycles
● More than 200-year data retention
● Packages RoHS-compliant and Halogen-free (ECOPACK®)
STMicroelectronics M95020-WMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M95020-WMN6TP.
STMicroelectronics M95020-WMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M95020-WMN6TP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 13 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Supply | 2.5V~5.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | M95020 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 5V | |
| Interface | SPI, Serial | |
| Memory Size | 2Kb 256 x 8 | |
| Nominal Supply Current | 5mA | |
| Clock Frequency | 20MHz | |
| Access Time | 35 ns | |
| Memory Format | EEPROM | |
| Memory Interface | SPI |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Width | 8 | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 2 kb | |
| Standby Current-Max | 0.000001A | |
| Serial Bus Type | SPI | |
| Endurance | 1000000 Write/Erase Cycles | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Data Retention Time-Min | 40 | |
| Write Protection | HARDWARE/SOFTWARE | |
| Length | 4.9mm | |
| Height Seated (Max) | 1.75mm | |
| Width | 3.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

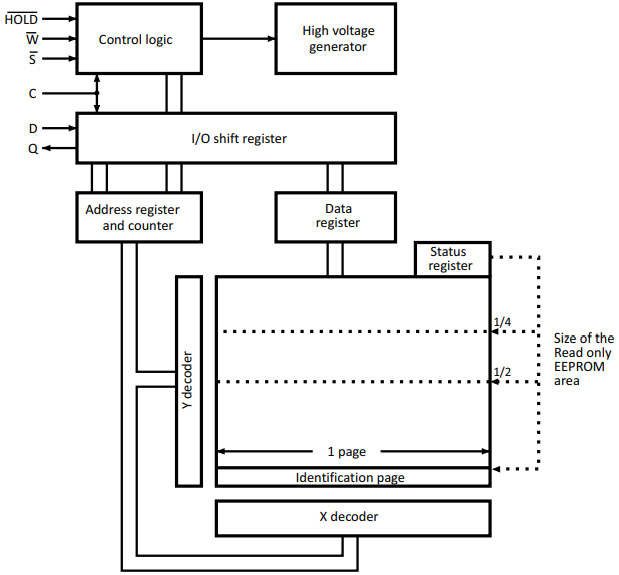

The following is the Block Diagram of M95020-W.
Block diagram

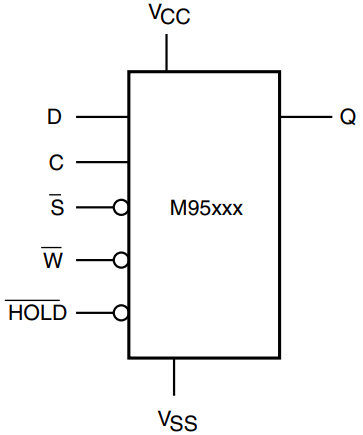

The following is the Logic Diagram of M95020-W.
Logic diagram
M95020-WMN6G, STMicroelectronics, 256X8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOP-8

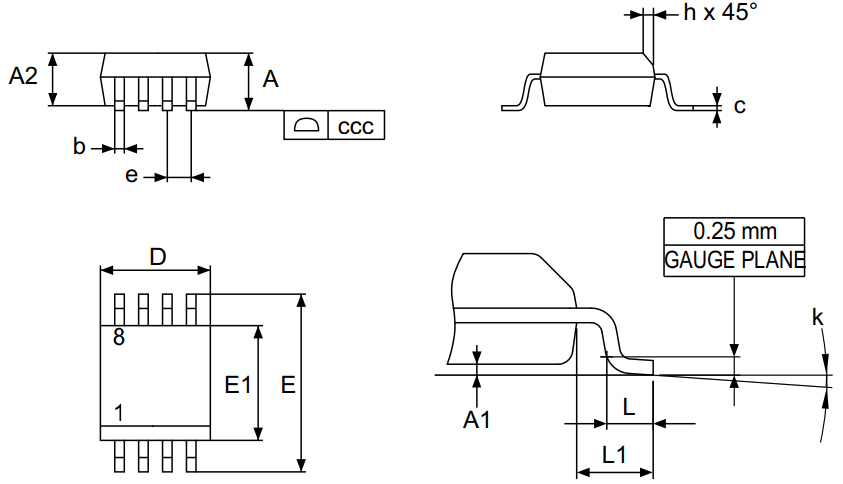

The following diagram shows the M95020-W package.
Package outline
STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
Download datasheets and manufacturer documentation for STMicroelectronics M95020-WMN6TP.
Download datasheets and manufacturer documentation for M95020-WMN6TP
