IC EEPROM 512KBIT 5MHZ 8SO The M95512 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 65536 x 8 bits, accessed through the SPI bus.
134
Apr 6, 2022
Hilda Malory
What Is EEPROM?
IC EEPROM 512KBIT 5MHZ 8SO
The M95512 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 65536 x 8 bits, accessed through the SPI bus. The M95512-R can operate with a supply voltage from 1.8 V to 5.5 V, over an ambient temperature range of -40 °C / 85 °C. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
M95512-RMN6TP
The following figure is the diagram of M95512-R Pinout.
Pinout
The followings are M95512-R Footprint and 3D Model.
Footprint
3D Model
The M95512 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 65536 x 8 bits, accessed through the SPI bus. The M95512-R can operate with a supply voltage from 1.8 V to 5.5 V, over an ambient temperature range of -40 °C / +85 °C.
This article provides you with a basic overview of the M95512-R 512-Kbit serial SPI bus EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M95512-R is.
● Compatible with the serial peripheral interface (SPI) bus
● Memory array
◆ 512 Kbit (64 Kbytes) of EEPROM
◆ Page size: 128 bytes
● Write
◆ Byte Write within 5 ms
◆ Page Write within 5 ms
● Additional write lockable page (Identification page)
● Write protect: quarter, half or whole memory array
● High-speed clock: 16 MHz
● Single supply voltage: 1.8 V to 5.5 V
● Operating temperature range: from -40 °C up to +85 °C
● Enhanced ESD protection
● More than 4 million Write cycles
● More than 200-year data retention
STMicroelectronics M95512-RMN6TP technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M95512-RMN6TP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 13 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 1.8V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | M95512 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 5V | |
| Interface | SPI, Serial | |
| Memory Size | 512Kb 64K x 8 | |
| Nominal Supply Current | 2.5mA | |
| Clock Frequency | 16MHz | |
| Access Time | 80 ns | |
| Memory Format | EEPROM |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Interface | SPI | |
| Memory Width | 8 | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 512 kb | |
| Standby Current-Max | 0.000005A | |
| Serial Bus Type | SPI | |
| Endurance | 1000000 Write/Erase Cycles | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Data Retention Time-Min | 40 | |
| Write Protection | HARDWARE/SOFTWARE | |
| Length | 4.9mm | |
| Height Seated (Max) | 1.75mm | |
| Width | 3.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Block Diagram of M95512-R.
Block diagram
The following is the Logic diagram of M95512-R.
Logic diagram
| Model number | Manufacturer | Description |
| M95512-RMN3TG/K | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SON-8 |
| M95512-WDW6TG | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |
| M95512-RDW6G | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |
| M95512-DRMN6G | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 |
| AT25F512N-10SI-2.7 | Atmel Corporation | EEPROM, 64KX8, Serial, CMOS, PDSO8, 0.150 INCH, PLASTIC, MS-012AA, SOIC-8 |
| M95512-RDW6TG | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.169 INCH, ROHS COMPLIANT, TSSOP-8 |
| IS25LD512-JNLE | Integrated Silicon Solution Inc | Flash, 64KX8, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8 |
| CAT25512XI-T2 | On Semiconductor | EEPROM Serial 512-Kb SPI, SOIC-8, 208 mils, 2000-REEL |
| M95512-RMN6TP/K | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SON-8 |
| M95512-WDW4G/K | STMicroelectronics | 64KX8 SPI BUS SERIAL EEPROM, PDSO8, 0.169 INCH, HALOGEN FREE AND ROHS COMPLIANT, TSSOP-8 |

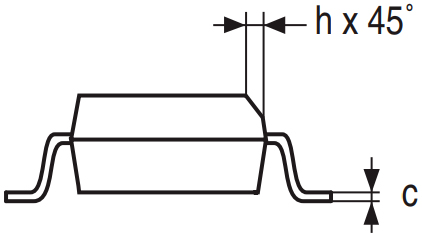

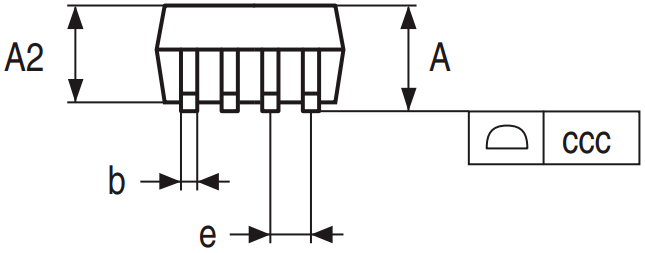

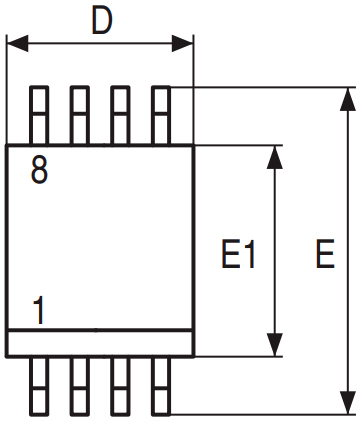

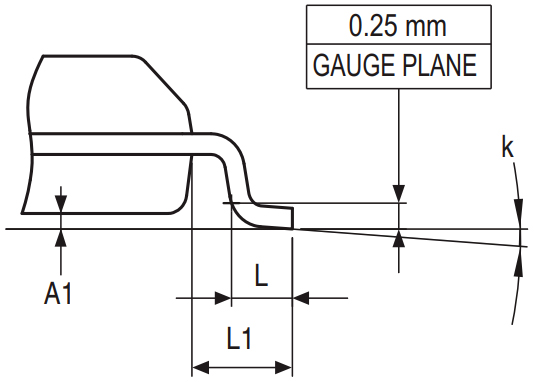

The following diagrams show the M95512-R Package.
View A
View B
View C
View D

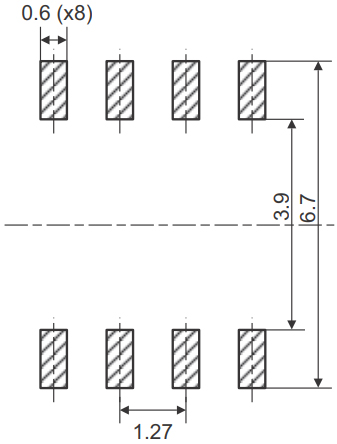

The following diagram shows the M95512-R Package Recommended Footprint.
Package Recommended Footprint
