M95M01-R EEPROM: Pinout, Equivalent and Datasheet

Memory M95M01 Non-Volatile 8-SOIC (0.154, 3.90mm Width) 1Mb 128K x 8 EEPROM -40°C~85°C TA 1.8V~5.5V SPI 2.5V 16MHz 1.27mm M95M01 Series 1 Mb (128 K x 8) 5 MHz Surface Mount Serial SPI Bus EEPROM -SOIC-8

297

Nov 12, 2021

Buck Burns

What Is EEPROM?



Memory M95M01 Non-Volatile 8-SOIC (0.154, 3.90mm Width) 1Mb 128K x 8 EEPROM -40°C~85°C TA 1.8V~5.5V SPI 2.5V 16MHz 1.27mm M95M01 Series 1 Mb (128 K x 8) 5 MHz Surface Mount Serial SPI Bus EEPROM -SOIC-8

The M95M01 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 131072 x 8 bits, accessed through the SPI bus. The M95M01-R can operate with a supply range from 1.8 V to 5.5 V. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

M95M01-RMN6P

20In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $2.01649$2.02
10+ $1.90235$19.02
100+ $1.79467$179.47
500+ $1.69308$846.54
1000+ $1.59725$1597.25
Unit Price:$2.01649
Subtotal: $2.02
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

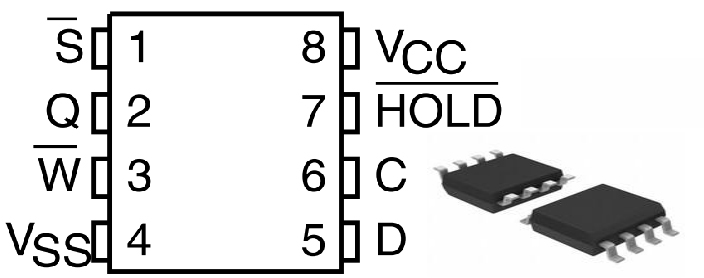

M95M01-R Pinout

M95M01-R CAD Model

PCB Symbol

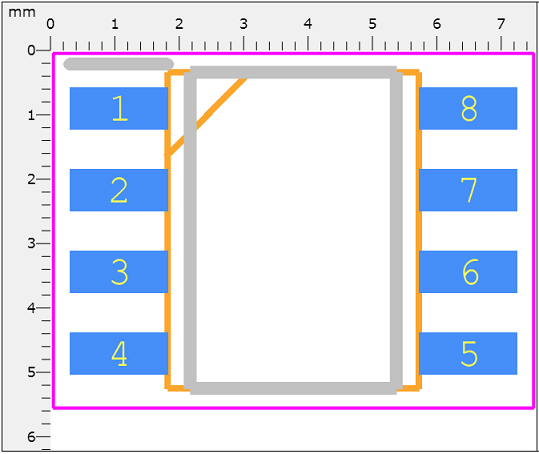

PCB Footprint

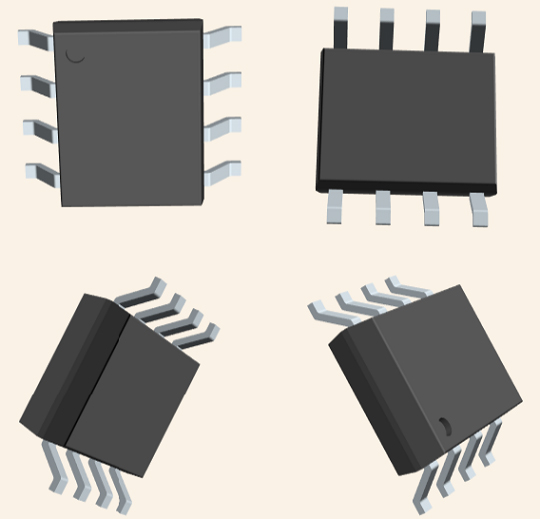

3D Model

M95M01-R Overview

The M95M01 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 131072 x 8 bits, accessed through the SPI bus. The M95M01-R can operate with a supply range from 1.8 V to 5.5 V. The device is guaranteed over the -40 °C/+85 °C temperature range.

This article provides you with a basic overview of the M95M01-R EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what M95M01-R is.

M95M01-R Features

● Compatible with the Serial Peripheral Interface (SPI) bus

● Memory array

   ◆ 1 Mbit (128 Kbytes) of EEPROM

   ◆ Page size: 256 bytes

● Write

   ◆ Byte Write within 5 ms

   ◆ Page Write within 5 ms

● Additional Write lockable page (Identification Page)

● Write Protect: quarter, half or whole memory array

● High-speed clock: 16 MHz

● Single supply voltage: 1.8 V to 5.5 V

● Operating temperature range: from -40 °C up to +85 °C

● Enhanced ESD protection

● More than 4 million Write cycles

● More than 200-year data retention

Specifications

STMicroelectronics M95M01-RMN6P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M95M01-RMN6P.

M95M01-RMN6P Tech Specifications

STMicroelectronics M95M01-RMN6P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M95M01-RMN6P.

Product Attribute Attribute Value
Factory Lead Time13 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Number of Pins8Pins
Memory TypesNon-Volatile
Usage LevelIndustrial grade
Operating Temperature-40°C~85°C TA
PackagingTube
JESD-609 Codee4
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Voltage - Supply1.8V~5.5V
Product Attribute Attribute Value
Terminal PositionDUAL
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage2.5V
Terminal Pitch1.27mm
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberM95M01
Pin Count8
Operating Supply Voltage5V
InterfaceSPI, Serial
Memory Size1Mb 128K x 8
Nominal Supply Current5mA
Clock Frequency16MHz
Access Time25 ns
Memory FormatEEPROM
Memory InterfaceSPI
Product Attribute Attribute Value
Write Cycle Time - Word, Page5ms
Density1 Mb
Standby Current-Max0.000003A
Serial Bus TypeSPI
Endurance1000000 Write/Erase Cycles
Write Cycle Time-Max (tWC)5ms
Data Retention Time-Min40
Write ProtectionHARDWARE/SOFTWARE
Height1.25mm
Length5mm
Width4mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

M95M01-R Functional Block Diagram

Block diagram

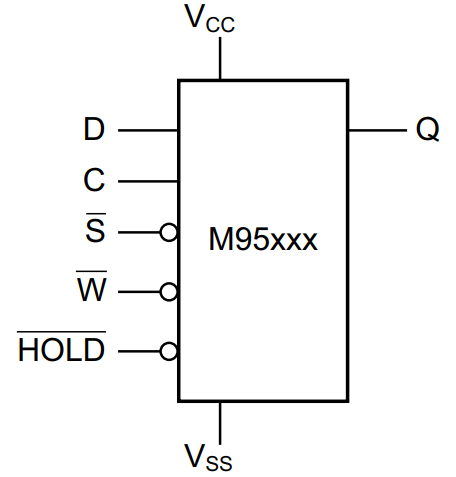

Logic diagram

M95M01-R Equivalent

              Model number                     Manufacturer                                          Description
M24M01-WMN3G/A STMicroelectronics 256KX8 I2C/2-WIRE SERIAL EEPROM, 900ns, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8
24LC1025-E/P Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
24LC1025T-E/SN16KVAO Microchip Technology Inc EEPROM, 128KX8, Serial, CMOS, PDSO8
24LC1025T-E/SM Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8
AT24C1024B-TH25-B Atmel Corporation EEPROM, 128KX8, Serial, CMOS, PDSO8, 4.40 MM, HALOGEN AND LEAD FREE, PLASTIC, TSSOP-8
24LC1025-I/SN Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
24AA1026-I/SM Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 5.28 MM, ROHS COMPLIANT, PLASTIC, SOIJ-8
24LC1025T-E/SN Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
24FC1025T-E/P Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8
24FC1025T-E/SM Microchip Technology Inc 128K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.208 INCH, PLASTIC, SOIC-8

M95M01-R Connecting to the SPI bus

Bus master and memory devices on the SPI bus

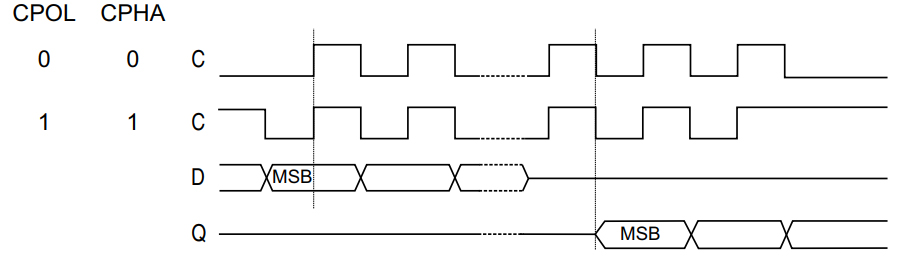

SPI modes supported

M95M01-R Package

Package outline

M95M01-R Package Recommended Footprint

Package Recommended Footprint

M95M01-R Manufacturer

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.

Datasheet PDF

M95M01-RMN6P Documents

Download datasheets and manufacturer documentation for M95M01-RMN6P

Frequently Asked Questions

What is the essential property of the M95M01?
The M95M01 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 131072 x 8 bits, accessed through the SPI bus.
What is the power supply range and temperature range of the M95M01-R?
The M95M01-R can operate with a supply range from 1.8 V to 5.5 V. The device is guaranteed over the -40 °C/+85 °C temperature range.
FAQ
What is the essential property of the M95M01?
The M95M01 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 131072 x 8 bits, accessed through the SPI bus.
What is the power supply range and temperature range of the M95M01-R?
The M95M01-R can operate with a supply range from 1.8 V to 5.5 V. The device is guaranteed over the -40 °C/+85 °C temperature range.
