Display Modules - LED Character and Numeric Displays Module 1DIGIT 8LED Red CA 10-Pin DIP
MAN6760 is from the MAN6700 Series is a family of large digits.| Furthermore, there is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
MAN6760
The single-digit MAN6760 is part of the MAN6700 Series, which comprises both double and single digits. The sculptured font is used throughout the series to reduce "gappiness" at segment intersections. Two-digit, one-and-a-half digits with polarity sign and single-digit types are also available. All types have right-hand decimal points and can be ordered with either a common anode or a common cathode. The units have a black face and a red segment colour.

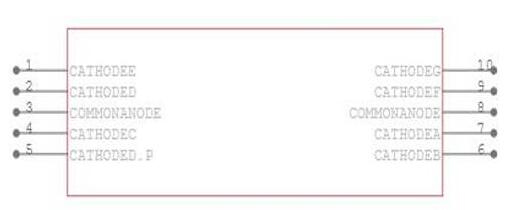

MAN6760 Symbol

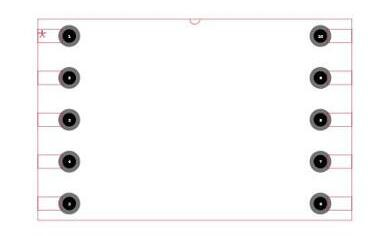

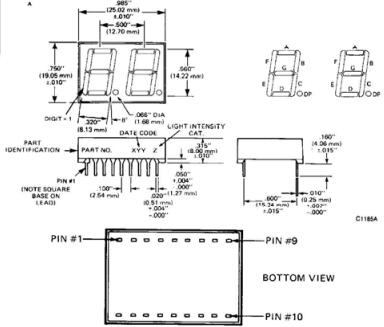

MAN6760 Footprint
Everlight Electronics Co Ltd MAN6760 technical specifications, attributes, parameters and parts with similar specifications to Everlight Electronics Co Ltd MAN6760.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Through Hole | |
| Package / Case | 10-DIP (0.600, 15.24mm) | |
| Number of Pins | 10Pins | |
| Number of Elements | 8 Elements | |
| Packaging | Bulk | |
| Published | 2006 | |
| Size / Dimension | 0.750 Hx0.480W x 0.315 D 19.05mmx12.20mmx8.00mm | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Color | Red | |
| Additional Feature | IC COMPATIBLE, HIGH RELIABILITY | |
| Number of Functions | 1Function | |
| Depth | 19.05mm | |
| Operating Supply Voltage | 2V | |
| Element Configuration | Common Anode | |
| Power Dissipation | 480mW | |
| Voltage - Forward (Vf) (Typ) | 2V Max | |
| Forward Current | 240mA | |
| Current - Test | 20mA | |
| Luminous Intensity | 420 μcd |
| Product Attribute | Attribute Value | |
|---|---|---|
| Millicandela Rating | 0.42mcd | |
| Wavelength - Peak | 650nm | |
| Display Type | 7-Segment | |
| Reverse Voltage | 6V | |
| Number of Characters | 1Character | |
| Digit/Alpha Size | 0.56 14.22mm | |
| Common Pin | Common Anode | |
| Height | 19.05mm | |
| Viewing Area (height) | 14.22mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
■High-performance GaAsP
■Large, easy to read, digits
■The common anode or common cathode models
■Also available in Orange (MAN6600 Series)
■Fast switching一excellent for multiplexing
■Low power consumption
■Bold solid segments that are highly legible
■Solid-state relibilit一long operation life
■Rugged plastic construction
■Directly compatible with integrated circuits
■High brightness with high contrast
■Categorized for Luminous Intensity (See Note 7)
■Wide viewing angle... 150°
■Standard double-dip lead configuration
■Low forward voltage
■Two-digit package simplifies alignment and assembly
■Digital readout displays
■Instrument panels
■Point of sale equipment
■Digital clocks
■TV and radios
The equivalent for MAN6760:
LAP-601VB
LDS-A515RE
CMN6760
FND50
GL9P056
HDSP-5301
HDSP-H011
LN516RA
LSD5120-XX
LSD5121-XX
In 1983, Everlight Electronics Co., Ltd. was established. Everlight is a company specializing in the LED industry in Taipei, Taiwan. Everlight has now grown into a global company with more than 6,400 employees in China, Hong Kong, Japan, South Korea, Singapore, Malaysia, Germany, Sweden, the United States and Canada. Everlight plays a very important role in the formation of the global LED industry. We are committed to providing certification, R&D, production, quality, marketing and global customer service.
Download datasheets and manufacturer documentation for MAN6760
