MAX16054 Series 5.5 V Surface Mount Pushbutton On/Off Controller - TSOT-23-6
The MAX16054AZT T is a single switch debouncer and built-in latch pushbutton on/off controller. This article mainly introduces Circuits, Pinout, Datasheet and other detailed information about Maxim Integrated MAX16054AZT T.
MAX16054AZT T
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.72521 | $3.73 |
| 10+ | $3.51435 | $35.14 |
| 100+ | $3.31543 | $331.54 |
| 500+ | $3.12776 | $1563.88 |
| 1000+ | $2.95072 | $2950.72 |
The MAX16054AZT+T is a single switch debouncer and built-in latch pushbutton on/off controller. After a factory-set qualifying delay, it accepts a loud input from a mechanical switch and delivers a clean latched digital output.
During switch opening and closing, the MAX16054AZT+T minimizes contact bounce. The state of the output changes only when the debounced switch input is activated by the falling edge; the output remains unchanged when the input is triggered by the rising edge. For usage in tough industrial situations, robust switch inputs withstand 25V levels and are 15kV ESD shielded. A complementary output, OUT, is the inverted state of OUT on the MAX16054AZT+T, An external signal can drive the output flip-flop low using an asynchronous CLEAR input. When the power is turned on, the undervoltage-lockout circuitry guarantees that OUT is turned off. The MAX16054AZT+T requires no external components and is suited for use in portable equipment due to its low supply current.
The MAX16054AZT+T is powered by a single +2.7V to +5.5V supply. The MAX16054AZT+T is available in a 6-pin thin SOT23 packaging and operates in the automotive temperature range of -40°C to +125°C.
The following figure is MAX16054AZT+T Pinout.
Pinout
| Pin Number | Pin Name | Description |
| 1 | IN | Switch Toggle Input. IN features a -25V to +25V maximum input range and includes an internal 63kΩ pullup resistor to VCC. Connect a pushbutton from IN to GND |
| 2 | GND | Ground |
| 3 | CLEAR | Clear Input. Pull CLEAR high to force OUT low. Connect CLEAR to GND if unused |
| 4 | OUT | Active-Low CMOS Output |
| 5 | OUT | Active-High CMOS Output |
| 6 | VCC | +2.7V to +5.5V Supply Input. In noisy environments, bypass VCC to GND with a 0.1µF or greater ceramic capacitor |
The following figures are MAX16054AZT+T Symbol, Footprint and 3D Model.
Symbol

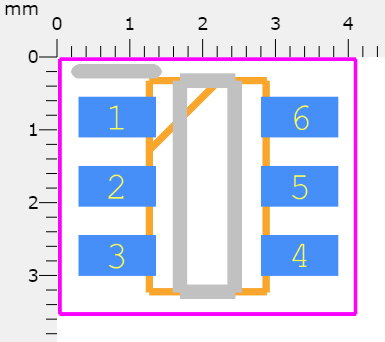

Footprint

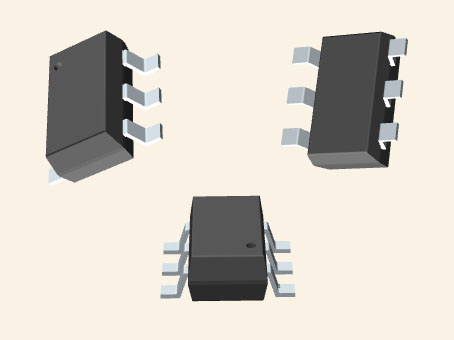

3D Model
♦ Robust Inputs Can Handle Power Supplies Up to ±25V
♦ ±15kV ESD Protection
♦ Latched Output
♦ Low 7µA Supply Current
♦ Operates from 2.7V to 5.5V
♦ -40°C to +125°C Temperature Range
♦ Thin SOT23 Package
Maxim Integrated MAX16054AZT+T technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX16054AZT+T.
Maxim Integrated MAX16054AZT T technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX16054AZT T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | |
| Number of Pins | 6Pins | |
| Watchdog Timers | No | |
| Published | 2008 | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -40°C | |
| Applications | PDA's, Portable Audio/Video, Smartphones | |
| Max Power Dissipation | 727W | |
| Voltage - Supply | 2.7V~5.5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 0.95mm | |
| Base Part Number | MAX16054 | |
| Pin Count | 6 | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Power Supplies | 3/5V | |
| Temperature Grade | AUTOMOTIVE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Min (Vsup) | 2.7V | |
| Number of Channels | 1Channel | |
| Analog IC - Other Type | POWER SUPPLY MANAGEMENT CIRCUIT | |
| Operating Supply Current | 7μA | |
| Adjustable Threshold | NO | |
| Number of Voltages Monitored | 1 | |
| Supply Current-Max (Isup) | 0.02mA | |
| Undervoltage Threshold | 1.8V | |
| Height | 730μm | |
| Length | 4mm | |
| Width | 4mm | |
| RoHS Status | ROHS3 Compliant | |
| REACH SVHC | Unknown |
The MAX16054AZT+T Functional Block Diagram is shown as follows.
Functional Block Diagram

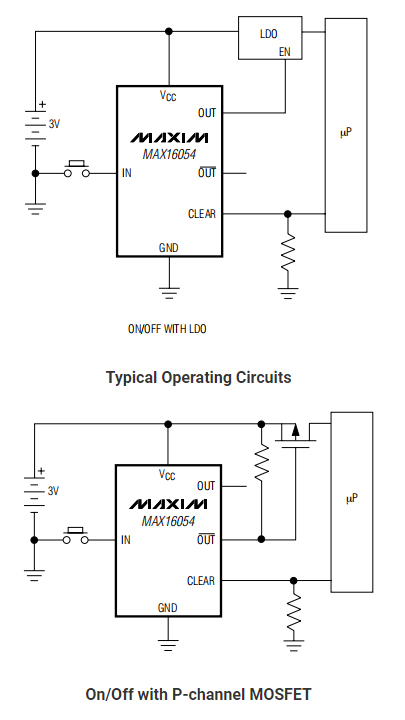

The followings are MAX16054AZT+T Typical Operating Circuits.
| Part Number | Description | Manufacturer |
| SP6342EK1-L-V-H-BPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Sipex Corporation |
| SP6342EK1-L-V-B-C/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Sipex Corporation |
| SP6342EK1-L-V-F-B/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Exar Corporation |
| SP6342EK1-L-V-A-C/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Exar Corporation |
| SP6342EK1-L-U-G-D/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Sipex Corporation |
| SP6342EK1-L-U-J-D/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Sipex Corporation |
| SP6342EK1-L-V-A-B/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Exar Corporation |
| SP6342EK1-L-V-B-APOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Exar Corporation |
| SP6342EK1-L-V-H-CPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Sipex Corporation |
| SP6342EK1-L-U-G-A/TRPOWER CIRCUITS | Power Supply Management Circuit, Fixed, 1 Channel, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | Exar Corporation |
• PDAs
• MP3/Video Players
• Portable Electronics
• Set-Top Boxes
• Portable Instrumentation
• White Goods
• Portable Devices
• Consumer Electronics
Analog Devices' Maxim Integrated designs, manufactures and sells analog and mixed-signal integrated circuits for automotive, industrial, communications, consumer, and computing applications. Power and battery management ICs, sensors, analog ICs, interface ICs, communications solutions, digital ICs, embedded security, and microcontrollers are all part of Maxim's product line. The company includes design centers, manufacturing facilities, and sales offices all around the world, with its headquarters in San Jose, California.
