MAX3082ESA Transceiver: Circuit, Pinout, and Datasheet

One driver and one receiver are included in the MAX3082ESA high-speed transceiver for  RS-485 / RS-422  communication. When the receiver inputs are open or shorted, the device's fail-safe circuitry ensures a logic-high receiver output. If all transmitters on a terminated bus are deactivated, the receiver output will be a logic high (high impedance).

Reduced slew-rate drivers in the MAX3082ESA  reduce EMI and reflections produced by incorrectly terminated cables, allowing error-free data transmission up to 115kbps.

Higher driver output slew-rate limitations are available on the MAX3082ESA.  allowing transmission speeds of up to 500kbps. The MAX3082ESA  's driver slew rates are unrestricted, allowing for transmitting speeds of up to 10Mbps. When empty, or when fully loaded with the drivers disabled, these transceivers typically draw 375A of supply current.

All devices have a receiver input impedance of 1/8 unit load, allowing for up to 256 transceivers on the bus. The MAX3082ESA  is a half-duplex communication device.

he following figure is MAX3082ESA Pinout.

The followings are MAX3082ESA Symbol, Footprint and 3D Model.

Symbol

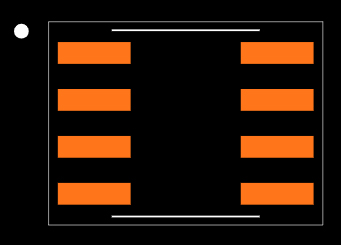

Footprint

3D Model

♦ For Fault-Tolerant Applications:

MAX3430: ±80V Fault-Protected,  Fail-Safe , 1/4-Unit Load, +3.3V  RS-485  Transceiver

♦ For Low-Voltage Applications:

MAX3362: +3.3V, High-Speed, RS-485/ RS-422 Transceiver  in a SOT23 Package

♦ For Multiple Transceiver Applications:

MAX3030E–MAX3033E: ±15kV ESD-Protected, +3.3V, Quad, RS-422 Transmitters

MAX3040–MAX3045: ±10kV ESD-Protected, Quad, +5V, RS-485/RS-422 Transmitters

Maxim Integrated MAX3082ESA technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3082ESA.

The following figure is MAX3082ESA Typical Half-Duplex Operating Circuit.

Typical Half-Duplex Operating Circuit

Pin labels Y and Z on timing, test, and waveform diagrams refer to pins A and B when DE is high.

• RS-422/RS-485 Communications

• Level Translators

• Transceivers for EMI-Sensitive Applications

• Industrial-Control Local Area Networks

Analog Devices' Maxim Integrated  designs, manufactures and sells analog and mixed-signal integrated circuits for automotive, industrial, communications, consumer, and computing applications. Power and battery management ICs, sensors, analog ICs, interface ICs, communications solutions, digital ICs, embedded security, and microcontrollers are all part of Maxim's product line. The company includes design centers, manufacturing facilities, and sales offices all around the world, with its headquarters in San Jose, California.
