IC TRANSCEIVER FULL 2/2 16SOIC
The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (seria port connection terminals, including GND).
MAX3232 Line Receiver: Features, Speicifications and Applications
IC TRANSCEIVER FULL 2/2 16SOIC The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (seria port connection terminals, including GND).
130
Mar 10, 2021
Polly
MAX3232CD
10In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.30759 | $3.31 |
| 10+ | $3.12037 | $31.2 |
| 100+ | $2.94374 | $294.37 |
| 500+ | $2.77712 | $1388.56 |
| 1000+ | $2.61992 | $2619.92 |
Unit Price:$3.30759
Subtotal: $3.31
Quick Links
MAX3232 Description

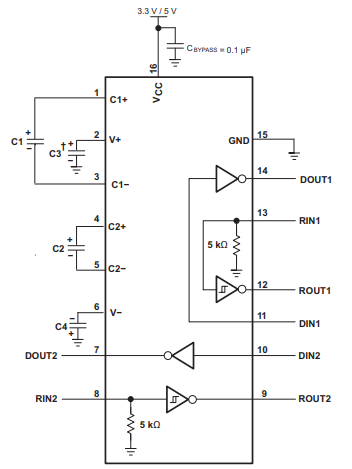

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
MAX3232 Features
• RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
• Meets or Exceeds the Requirements of TIA/EIA232-F and ITU V.28 Standards
• Operates With 3-V to 5.5-V VCC Supply
• Operates up to 250 kbit/s • Two Drivers and Two Receivers
• Low Supply Current: 300 μA Typical • External Capacitors: 4 × 0.1 μF
• Accepts 5-V Logic Input With 3.3-V Supply
• Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s) – SN65C3232 (–40°C to 85°C) – SN75C3232 (0°C to 70°C)

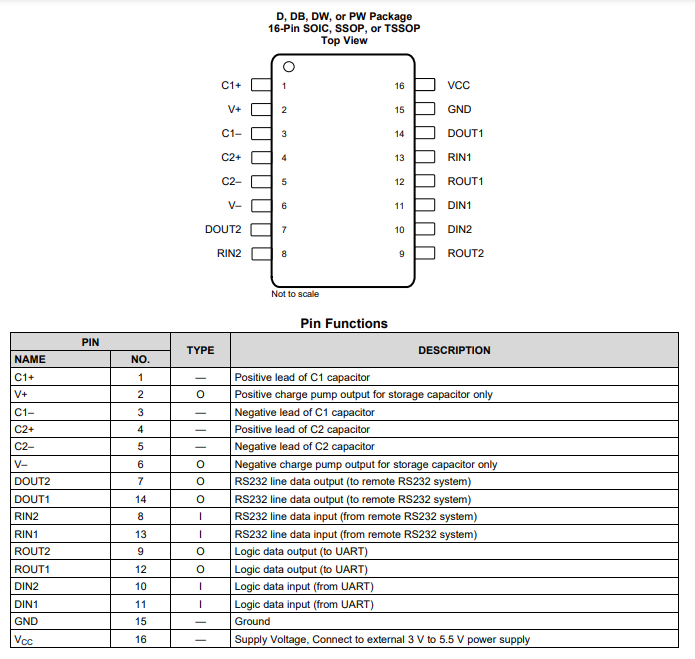

MAX3232 Pins
Specifications
Texas Instruments MAX3232CD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments MAX3232CD.
MAX3232CD Tech Specifications
MAX3232CD Tech Specifications
Texas Instruments MAX3232CD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments MAX3232CD.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 16Pins | |
| Weight | 141.690917mg | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Type | Transceiver | |
| Additional Feature | CAN ALSO OPERATE WITH 5V SUPPLY | |
| Voltage - Supply | 3V~5.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions | |
| Supply Voltage | 3.3V | |
| Base Part Number | MAX3232 | |
| Pin Count | 16 | |
| Output Voltage | 5.4V | |
| Operating Supply Voltage | 5V | |
| Operating Supply Current | 1mA | |
| Nominal Supply Current | 1mA | |
| Output Current | 60mA | |
| Max Supply Current | 1mA | |
| Logic Function | Receiver, Transceiver | |
| Data Rate | 250kbps | |
| Differential Output | NO | |
| Output Polarity | INVERTED | |
| Protocol | RS232 | |
| Input Characteristics | SCHMITT TRIGGER |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Drivers/Receivers | 2/2Drivers/Receiver | |
| Receiver Number of Bits | 2Bits | |
| Duplex | Full | |
| Receiver Hysteresis | 300mV | |
| Number of Drivers | 2Drivers | |
| Number of Transceivers | 1Transceiver | |
| ESD Protection | Yes | |
| Receive Delay-Max | 300 ns | |
| Simplex/Duplex | Full Duplex | |
| Transmit Delay-Max | 300 ns | |
| Supply Voltage1-Nom | 3.3V | |
| Height | 1.75mm | |
| Length | 9.9mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
MAX3232 Applications
MAX3232 Applications
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments MAX3232CD.
MAX3232CD Documents
MAX3232CD Documents
Download datasheets and manufacturer documentation for MAX3232CD
