IC TRANSCEIVER FULL 2/2 16SO
The MAX3232ESE transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump.
MAX3232ESE+ transceiver：Pinout, Specification, Datasheet
IC TRANSCEIVER FULL 2/2 16SO The MAX3232ESE+ transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump.
243
Mar 21, 2021
Nancy
MAX3232ESE
4500In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.14861 | $2.15 |
| 10+ | $2.02699 | $20.27 |
| 100+ | $1.91225 | $191.23 |
| 500+ | $1.80401 | $902.01 |
| 1000+ | $1.7019 | $1701.9 |
Unit Price:$2.14861
Subtotal: $2.15
Quick Links
MAX3232ESE+ Description
The devices require only four small 0.1µF external charge-pump capacitors. The MAX3232 is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels.
The MAX3232 has 2 receivers and 2 drivers. The MAX3232 is pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively.
These extra outputs are always active, allowing external devices to be monitored without forward biasing the protection diodes in circuitry that may have VCC completely removed.
The MAX3232 is available in space-saving TSSOP and SSOP packages with operating temperatures of either -40°C to +85°C or 0°C to 70°C.

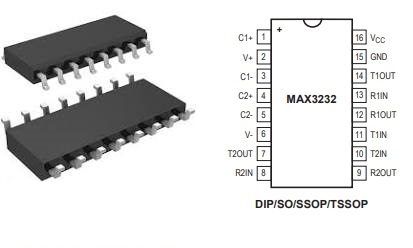

MAX3232ESE+ Pinout
MAX3232ESE+ CAD Model

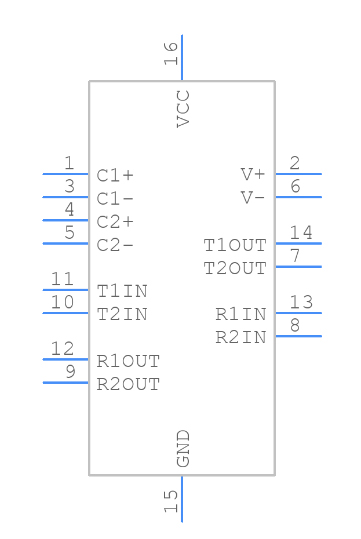

Symbol

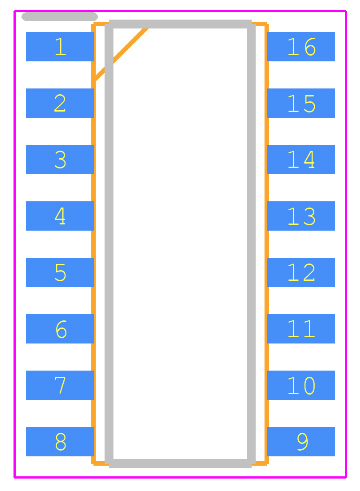

Footprint
3D Model
MAX3232ESE+ Features
• Charge pump circuitry eliminates the need for a bipolar ±12V supply
• Wide single-supply operation from +3V to +5.5V supply
• Always-on extra outputs enable monitoring of external devices power saving extends battery life
• 1µA supply current in shutdown mode while the receiver is active
MAX3232ESE+ Applications
Battery-powered equipment
Hand-held equipment
Peripherals
Datacom equipment
Specifications
Maxim Integrated MAX3232ESE+ technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3232ESE+.
MAX3232ESE Tech Specifications
MAX3232ESE Tech Specifications
Maxim Integrated MAX3232ESE technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3232ESE .
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 16Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Published | 2006 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Type | Transceiver | |
| Terminal Finish | Matte Tin (Sn) | |
| Additional Feature | EXTERNAL CHARGE PUMP |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 3V~5.5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 255 | |
| Number of Functions | 2Functions | |
| Supply Voltage | 3.3V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | MAX3232 | |
| Pin Count | 16 | |
| Qualification Status | Not Qualified | |
| Power Supplies | 3.3/5V | |
| Interface | RS-232 | |
| Nominal Supply Current | 300μA | |
| Data Rate | 120Kbps | |
| Output Characteristics | TOTEM-POLE | |
| Differential Output | NO | |
| Output Polarity | INVERTED |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protocol | RS232 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Number of Drivers/Receivers | 2/2Drivers/Receiver | |
| Driver Number of Bits | 2Bits | |
| Duplex | Full | |
| Receiver Hysteresis | 300mV | |
| Simplex/Duplex | Duplex | |
| Number of Receivers | 2Receivers | |
| Out Swing-Min | 10 V | |
| High Level Input Current-Max | 0.000001A | |
| Height | 1.75mm | |
| Length | 9.9mm | |
| Width | 3.9mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
MAX3232ESE+ Typical Operating Circuit
Datasheet PDF
Download datasheets and manufacturer documentation for Maxim Integrated MAX3232ESE+.
MAX3232ESE Documents
MAX3232ESE Documents
Download datasheets and manufacturer documentation for MAX3232ESE
Frequently Asked Questions
What is max3222e and MAX3232E?
The MAX3222E and MAX3232E are pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively. The MAX3241E/MAX3246E are complete serial ports (three drivers/five receivers) designed for notebook and subnotebook computers.
What is the ESD protection for MAX3232 3-V to 5.5-V?
MAX3232 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With ±15-kV ESD Protection datasheet (Rev. N) For additional terms or required resources, click any title below to view the detail page where available.
How to connect a MAX3232 to an M - Duino PLC family?
On this post it is showed how to connect a Max3232 to an M-Duino PLC family. Max3232 has a two lines of RS-232 communication and their respective two channels of TTL and also power supply pins (3-5,5V-GND).
What is MAX3232 device?
3 Description The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial- port connection terminals, including GND).
What is SOIC package MAX3232?
This is the RS232 converter IC that is capable of running at 3V and communicating with 5V logic. The SOIC package MAX3232 has been broken out all the pins you need to set up your RS232 to TTL connection. Also included the necessary 0.1µF charge pump capacitors.
FAQ
What is max3222e and MAX3232E?
The MAX3222E and MAX3232E are pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively. The MAX3241E/MAX3246E are complete serial ports (three drivers/five receivers) designed for notebook and subnotebook computers.
What is the ESD protection for MAX3232 3-V to 5.5-V?
MAX3232 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With ±15-kV ESD Protection datasheet (Rev. N) For additional terms or required resources, click any title below to view the detail page where available.
How to connect a MAX3232 to an M - Duino PLC family?
On this post it is showed how to connect a Max3232 to an M-Duino PLC family. Max3232 has a two lines of RS-232 communication and their respective two channels of TTL and also power supply pins (3-5,5V-GND).
What is MAX3232 device?
3 Description The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial- port connection terminals, including GND).
What is SOIC package MAX3232?
This is the RS232 converter IC that is capable of running at 3V and communicating with 5V logic. The SOIC package MAX3232 has been broken out all the pins you need to set up your RS232 to TTL connection. Also included the necessary 0.1µF charge pump capacitors.
