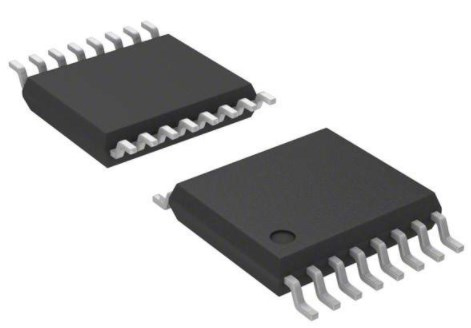

MAX3232IPWR Description
The MAX3232IPWR is a single-driver, single-receiver RS-232 interface device. The Human Body Model is used to safeguard all RS-232 inputs and outputs to 15 kV. For operation from a 3.3-V supply, the charge pump requires only four small 0.1-F capacitors. The MAX3221 can operate at data speeds of up to 250 kbps while preserving RS-232 output levels. When FORC is used, automatic power-down can be disabled.

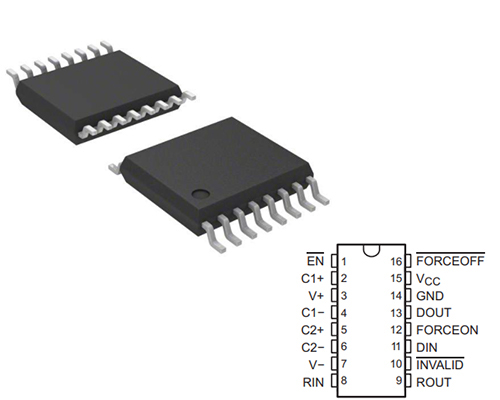

MAX3232IPWR Pinout
MAX3232IPWR CAD Model

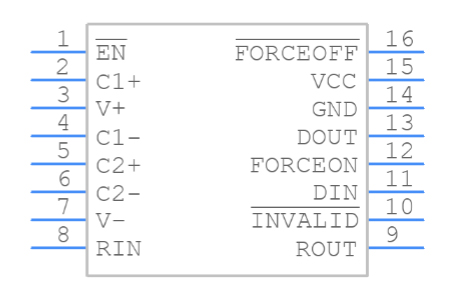

Symbol

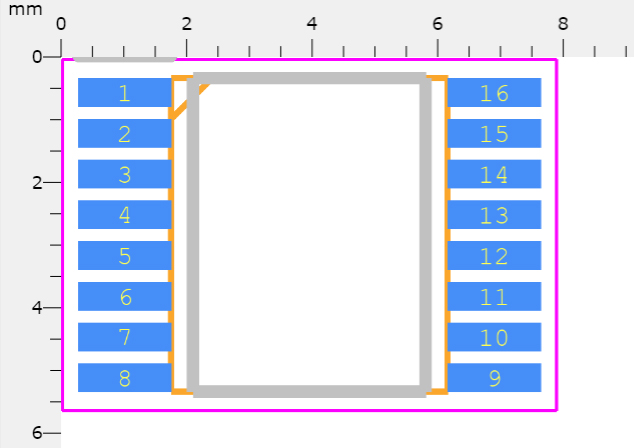

Footprint

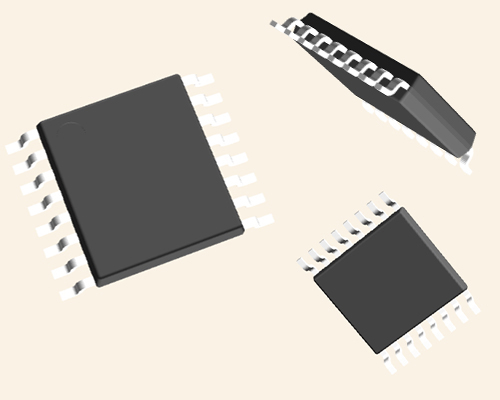

3D Model
MAX3232IPWR Features
• RS-232 Bus-pin ESD protection exceeds ±15 kV using human body model (HBM)
• Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
• Operates with 3-V to 5.5-V VCC supply
• Operates up to 250 kbps
• One driver and one receiver
• Low standby current: 1 μA typical
• External capacitors: 4 × 0.1 μF
• Accepts 5-V logic input with 3.3-V supply
• Alternative high-speed pin-compatible device (1 Mbps)
– SNx5C3221
• Automatic power-down feature automatically disables drivers for power savings

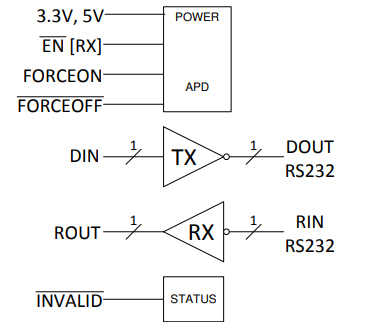

MAX3232IPWR Functional Block Diagram
MAX3232IPWR Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | ||||
| Supply voltage | Vcc = 3.3 V | 3 | 3.3 | 3.6 | V | ||
| Vcc = 5 V | 4.5 | 5 | 5.5 | ||||
| Vcc = 3.3 V | 2 | ||||||
| V|H | Driver high-level input voltage | DIN, FORCEOFF, | V | ||||
| FORCEON, EN | Vcc = 5 V | 2.4 | |||||
| V|L | Driver low-level input voltage | DIN, FORCEOFF, FORCEON, EN | 0.8 | V | |||
| V| | Driver input voltage | DIN, FORCEOFF, FORCEON, EN | 0 | 5.5 | V | ||
| Receiver input voltage | -25 | 25 | |||||
| Ta | Operating free-air temperature | MAX3221C | 0 | 70 | °C | ||
| MAX3221I | -40 | 85 | |||||
MAX3232IPWR Equivalents
| Part Number | Description | Manufacturer |
| TRS3221ECPWG4DRIVERS AND INTERFACES | LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, TSSOP-16 | Texas Instruments |
| TRS3221EIPWDRIVERS AND INTERFACES | 3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-TSSOP -40 to 85 | Texas Instruments |
| MAX3221ECPWRDRIVERS AND INTERFACES | 3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-TSSOP 0 to 70 | Texas Instruments |
| SN75C3221DBRG4DRIVERS AND INTERFACES | 3-V To 5.5-V Multichannel RS-232 Line Driver/Receiver 16-SSOP 0 to 70 | Texas Instruments |
| SN65C3221DBRG4DRIVERS AND INTERFACES | LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, SSOP-16 | Texas Instruments |
| TRS3221EIPWG4DRIVERS AND INTERFACES | LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, TSSOP-16 | Texas Instruments |
| SP3220BCADRIVERS AND INTERFACES | Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO16, PLASTIC, SSOP-16 | Exar Corporation |
| SN75C3221DBE4DRIVERS AND INTERFACES | IC LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, SSOP-16, Line Driver or Receiver | Texas Instruments |
| SN65C3221EDBRG4DRIVERS AND INTERFACES | 3-V To 5.5-V Single Channel RS-232 1 Mbit/s Line Driver/Receiver 16-SSOP -40 to 85 | Texas Instruments |
| SP3220BCYDRIVERS AND INTERFACES | Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO16, PLASTIC, TSSOP-16 | Exar Corporation |
Specifications
MAX3232IPWR Tech Specifications
MAX3232IPWR Tech Specifications
Texas Instruments MAX3232IPWR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments MAX3232IPWR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-TSSOP (0.173, 4.40mm Width) | |
| Number of Pins | 16Pins | |
| Weight | 61.887009mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Cut Tape (CT) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Type | Transceiver | |
| Terminal Finish | Matte Tin (Sn) | |
| Additional Feature | CAN ALSO OPERATE WITH 5V SUPPLY |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 3V~5.5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions | |
| Supply Voltage | 3.3V | |
| Base Part Number | MAX3232 | |
| Pin Count | 16 | |
| Operating Supply Voltage | 5V | |
| Operating Supply Current | 1mA | |
| Nominal Supply Current | 1mA | |
| Logic Function | Receiver, Transceiver | |
| Data Rate | 250kbps | |
| Differential Output | NO | |
| Output Polarity | INVERTED | |
| Protocol | RS232 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Number of Drivers/Receivers | 2/2Drivers/Receiver |
| Product Attribute | Attribute Value | |
|---|---|---|
| Receiver Number of Bits | 2Bits | |
| Duplex | Full | |
| Receiver Hysteresis | 300mV | |
| Number of Drivers | 2Drivers | |
| Number of Transceivers | 1Transceiver | |
| Receive Delay-Max | 300 ns | |
| Simplex/Duplex | Full Duplex | |
| Transmit Delay-Max | 300 ns | |
| Supply Voltage1-Nom | 3.3V | |
| Height | 1.2mm | |
| Length | 5mm | |
| Width | 4.4mm | |
| Thickness | 1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
MAX3232IPWR Applications
• Industrial PCs
• Wired networking
• Data center and enterprise computing
• Battery-powered systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-held equipment

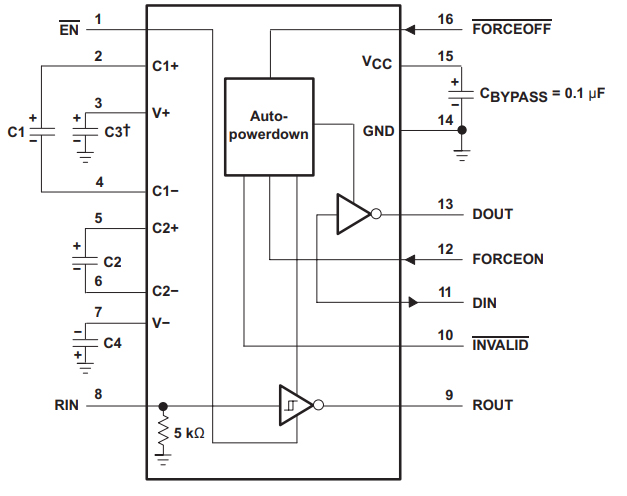

MAX3232IPWR Typical Application Circuit
MAX3232IPWR Typical Application Circuit

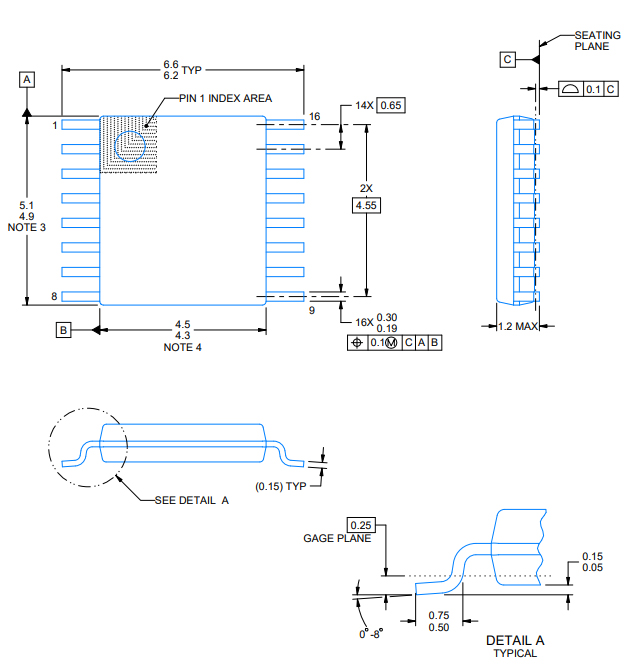

MAX3232IPWR Package
MAX3232IPWR Manufacturer
