IC TRANSCEIVER FULL 5/3 28SSOP The MAX3237EAI transceiver offers a patented low-dropout transmitter output stage that enables genuine RS-232 performance from a 3.0V to 5.5V supply. This article mainly introduces Circuits, Pinout, Datasheet and other detailed information about Maxim Integrated MAX3237EAI.
96
Feb 11, 2022
Hermosa Gill
What is TRANSCEIVER? What does TRANSCEIVER mean? TRANSCEIVER meaning, definition & explanation
IC TRANSCEIVER FULL 5/3 28SSOP
The MAX3237EAI transceiver offers a patented low-dropout transmitter output stage that enables genuine RS-232 performance from a 3.0V to 5.5V supply. This article mainly introduces Circuits, Pinout, Datasheet and other detailed information about Maxim Integrated MAX3237EAI.
With a twin charge pump, the MAX3237EAI transceiver offers a patented low-dropout transmitter output stage that enables genuine RS-232 performance from a 3.0V to 5.5V supply. Only four modest 0.1F external charge-pump capacitors are required for the devices. The MAX3237EAI ensures that data speeds of 120kbps are maintained while preserving RS-232 output levels. In normal working mode, the MAX3237EAI is guaranteed to run at 250kbps, and in MegaBaudTM mode, it is guaranteed to run at 1Mbps.
Three receivers and five drivers are included in the MAX3237EAI. In addition to the usual outputs, receiver R1 (MAX3237EAI) features additional outputs. These additional outputs are constantly active, allowing external devices to be monitored without forward biasing protection diodes in circuits with no VCC.

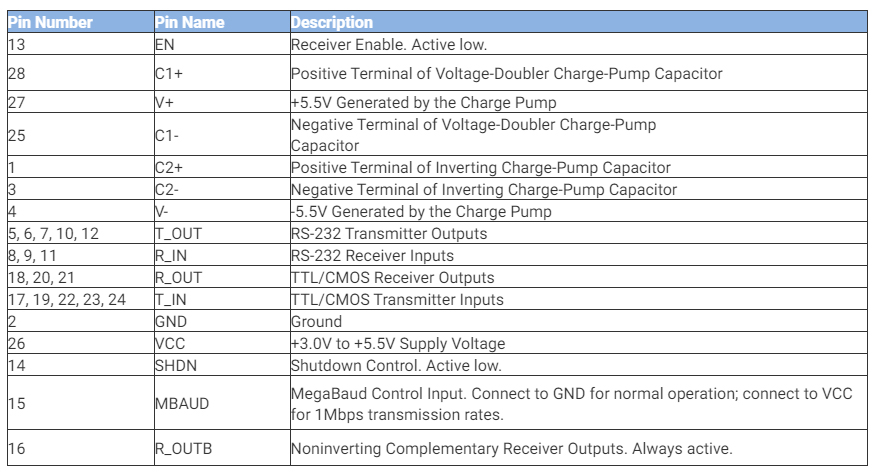

The following figure is MAX3237EAI Pinout.
Pinout
The followings are MAX3237EAI Symbol, Footprint and 3D Model.
Symbol

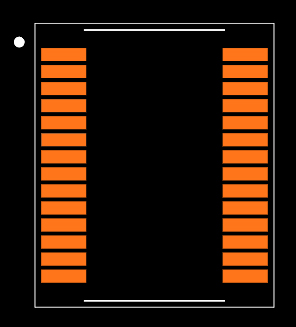

Footprint

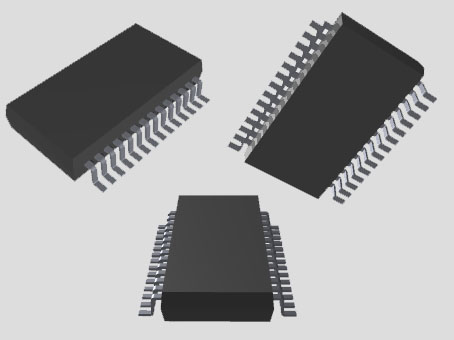

3D Model
• Integrated Features Saves Board Space and Simplifies Design
-Charge Pump Circuitry Eliminates the Need for a Bipolar ±12V Supply
-Wide Single-Supply Operation From +3V to +5.5V Supply
-Always-On Extra Outputs Enable Monitoring of External Devices
• Power Saving Extends Battery Life
-1µA Supply Current in Shutdown Mode While Receiver is Active
Maxim Integrated MAX3237EAI technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3237EAI.
undefined undefined technical specifications, attributes, parameters and parts with similar specifications to undefined undefined.
| Product Attribute | Attribute Value |
|---|
| Product Attribute | Attribute Value |
|---|
| Product Attribute | Attribute Value |
|---|
The MAX3237EAI Test Circuits are shown as follows.

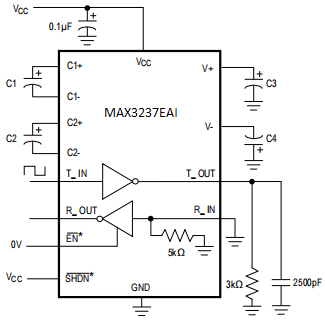

Minimum Slew-rate Test Circuit
Maximum Slew-rate Test Circuit
Loopback Test Circuit

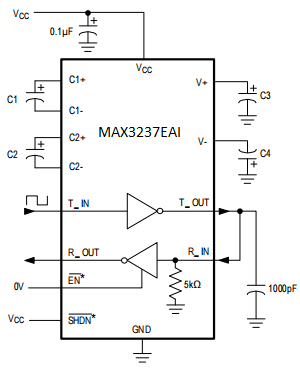

The following figure is MAX3237EAI Typical Operating Circuit.
Typical Operating Circuit
| Part Number | Description | Manufacturer |
| TRSF3238CDWG4DRIVERS AND INTERFACES | 5 LINE TRANSCEIVER, PDSO28, GREEN, PLASTIC, SOIC-28 | Texas Instruments |
| ICL3217CADRIVERS AND INTERFACES | TRIPLE LINE TRANSCEIVER, PDSO24, PLASTIC, MO-150AG, SSOP-24 | Intersil Corporation |
| TRS3238ECDBRG4DRIVERS AND INTERFACES | 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With +/-15-kV ESD (HBM) Protection 28-SSOP 0 to 70 | Texas Instruments |
| SP3238EA-L/TRDRIVERS AND INTERFACES | Line Transceiver, 3 Func, 5 Driver, 3 Rcvr, PDSO28, LEAD FREE, PLASTIC, SSOP-28 | Sipex Corporation |
| ISL83239EIVDRIVERS AND INTERFACES | Line Transceiver | Renesas Electronics Corporation |
| MAX3218EWPDRIVERS AND INTERFACES | LINE TRANSCEIVER, PDSO20, 0.300 INCH, SO-20 | Rochester Electronics LLC |
| SP3239EEA/TRDRIVERS AND INTERFACES | Line Transceiver, 3 Func, 5 Driver, 3 Rcvr, CMOS, PDSO28, MO-150AH, SSOP-28 | Sipex Corporation |
| MAX3238EIDWRG4DRIVERS AND INTERFACES | TRIPLE LINE TRANSCEIVER, PDSO28, GREEN, PLASTIC, SOIC-28 | Texas Instruments |
| SP3249ECY-L/TRDRIVERS AND INTERFACES | Line Transceiver, 3 Func, 5 Driver, 3 Rcvr, CMOS, PDSO24, LEAD FREE, MO-153AD, TSSOP-24 | Sipex Corporation |
| MAX3218CWP+DRIVERS AND INTERFACES | Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, 0.300 INCH, SO-20 | Maxim Integrated Products |
● Battery-Powered Equipment
● Hand-Held Equipment
● Peripherals
● Datacom Equipment

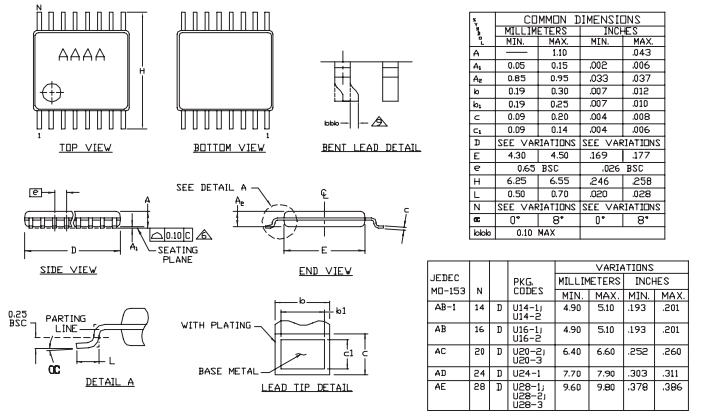

The following figure shows MAX3237EAI Package.
Package
Analog Devices' Maxim Integrated designs, manufactures and sells analog and mixed-signal integrated circuits for automotive, industrial, communications, consumer, and computing applications. Power and battery management ICs, sensors, analog ICs, interface ICs, communications solutions, digital ICs, embedded security, and microcontrollers are all part of Maxim's product line. The company includes design centers, manufacturing facilities, and sales offices all around the world, with its headquarters in San Jose, California.
