MAX3311 Transceiver: Pinout, Equivalent and Datasheet

Interface - Drivers, Receivers, Transceivers 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) 4.5V~5.5V 0°C~70°C MAX3311 10 0.5mm 5V IC TRANSCEIVER FULL 1/1 10UMAX

83

Dec 4, 2021

Page Petty

What is Transceiver receiver and transmitter? basic receiver blocks. Pat1 #9

Interface - Drivers, Receivers, Transceivers 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) 4.5V~5.5V 0°C~70°C MAX3311 10 0.5mm 5V IC TRANSCEIVER FULL 1/1 10UMAX

The MAX3311 is low-power, 5V EIA/TIA-232-compatible transceiver. The device has one transmitter and one receiver. The transceiver has a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a 5V supply with a single inverting charge pump. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.



MAX3311CUB

28In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $4.3179$4.32
10+ $4.07349$40.73
100+ $3.84292$384.29
500+ $3.62539$1812.7
1000+ $3.42018$3420.18
Unit Price:$4.3179
Subtotal: $4.32
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

MAX3311 Pinout

The following figure is the diagram of MAX3311 pinout.

Pinout

MAX3311 CAD Model

The followings are MAX3311 Symbol, Footprint, and 3D Model.

PCB Symbol

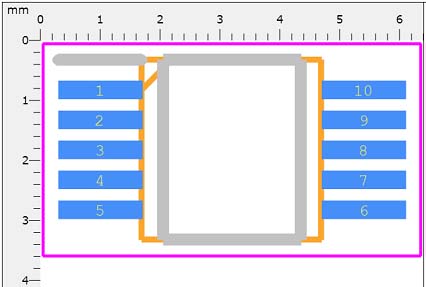

PCB Footprint



3D Model

MAX3311 Overview

The MAX3311 is low-power, +5V EIA/TIA-232-compatible transceiver. The device has one transmitter and one receiver. The transceiver has a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump. The device requires only three 0.1µF capacitors and will run at data rates up to 460kbps while maintaining RS-232-compatible output levels. The MAX3311 features a 1µA shutdown mode. In shutdown the device turns off the charge pump, pulls V- to ground, and the transmitter output is disabled. The MAX3311 internal power supply has a single inverting charge pump that provides a negative voltage from a single +5V supply. The transmitter is an inverting level translator that converts CMOS-logic levels to EIA/TIA-232-compatible levels. It guarantees data rates up to 460kbps with worst-case loads of 3kΩ in parallel with 1000pF. The MAX3311 receiver converts RS-232 signals to CMOS-logic output levels. The MAX3311 receiver will remain active during shutdown mode.

This article provides you with a basic overview of the MAX3311 Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what MAX3311 is.

MAX3311 Features

● 1µA Low-Power Shutdown

● Receiver Active in Shutdown

● Single Transceiver (1Tx/1Rx) in 10-Pin µMAX

● RS-232-Compatible Operation

Specifications

Maxim Integrated MAX3311CUB+ technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3311CUB+.

MAX3311CUB Tech Specifications

Maxim Integrated MAX3311CUB technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3311CUB .

Product Attribute Attribute Value
Factory Lead Time6 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Number of Pins10Pins
Number of I/Os4I/Os
Operating Temperature0°C~70°C
PackagingTube
Published2001
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations10Terminations
ECCN CodeEAR99
TypeTransceiver
Terminal FinishMatte Tin (Sn)
Product Attribute Attribute Value
Voltage - Supply4.5V~5.5V
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage5V
Terminal Pitch0.5mm
Time@Peak Reflow Temperature-Max (s)30
Base Part NumberMAX3311
Pin Count10
Operating Supply Voltage5V
Power Supplies5V
InterfaceRS-232
Nominal Supply Current250μA
Propagation Delay150 ns
Logic FunctionReceiver, Transceiver
Data Rate460Kbps
Product Attribute Attribute Value
Differential OutputNO
ProtocolRS232
Input CharacteristicsSCHMITT TRIGGER
Number of Drivers/Receivers1/1Drivers/Receiver
Driver Number of Bits1Bit
Receiver Number of Bits1Bit
DuplexFull
Receiver Hysteresis500mV
Number of Transceivers1Transceiver
Height950μm
Length3.05mm
Width3.05mm
REACH SVHCUnknown
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

MAX3311 Typical Operating Circuit

The following is the Typical Operating Circuit of MAX3311.

Typical Operating Circuit

MAX3311 Equivalent

         Model number                   Manufacturer                                            Description
MAX3311CUB-T Maxim Integrated Products Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO10, UMAX-10
MAX3311EUB Maxim Integrated Products Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO10, UMAX-10
MAX3311EUB+ Maxim Integrated Products Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, PDSO10, UMAX-10

MAX3311 Applications

● Digital Cameras

● PDAs

● GPS

● POS

● Telecommunications

● Handy Terminals

● Set-Top Boxes

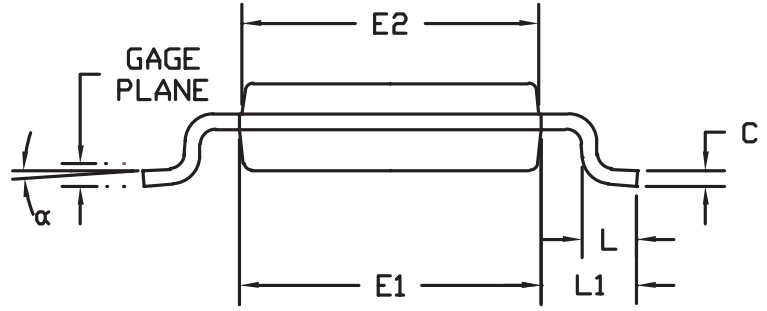

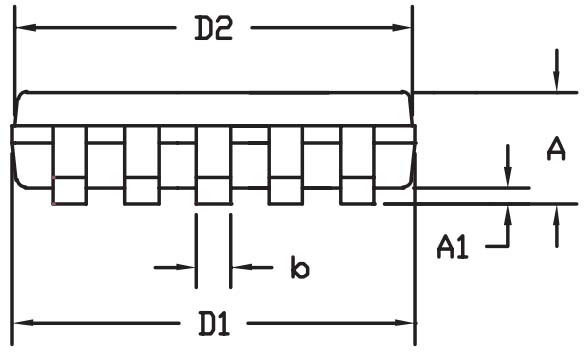

MAX3311 Package

The following diagram shows the MAX3311 package.

Top View



Bottom View



Front View



Side View

MAX3311 Manufacturer

The market is evolving. The rules are changing. To keep your time to market short, you need integration at every level—from silicon to the supply chain. Count on Maxim Integrated to help you overcome design and architectural challenges, with integrated solutions for the industrial, medical, consumer, automotive, energy, computing, and communications realms. Maxim Integrated is also your source for power, interface, and even digital products that work in the analog world. And they're glad to support you with reference designs, tools, technical documents, packaging, and more. We invite you to explore their latest analog integration offerings.

Datasheet PDF

MAX3311CUB Documents

Download datasheets and manufacturer documentation for MAX3311CUB

Frequently Asked Questions

What is the essential property of the MAX3311?
The MAX3311 is low-power, +5V EIA/TIA-232-compatible transceiver. The device has one transmitter and one receiver. The transceiver has a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump.
Does the MAX3311 maintain rS-232-compatible transmitter output voltage at high data rates?
The MAX3311 maintains RS-232-compatible transmitter output voltage (±3.7V minimum) even at high data rates.
Can the MAX3311 receiver remain active in shutdown mode?
The MAX3311 receiver converts RS-232 signals to CMOS-logic output levels. The MAX3311 receiver will remain active during shutdown mode.
FAQ
What is the essential property of the MAX3311?
The MAX3311 is low-power, +5V EIA/TIA-232-compatible transceiver. The device has one transmitter and one receiver. The transceiver has a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump.
Does the MAX3311 maintain rS-232-compatible transmitter output voltage at high data rates?
The MAX3311 maintains RS-232-compatible transmitter output voltage (±3.7V minimum) even at high data rates.
Can the MAX3311 receiver remain active in shutdown mode?
The MAX3311 receiver converts RS-232 signals to CMOS-logic output levels. The MAX3311 receiver will remain active during shutdown mode.
