MAX3600A Laser Driver: Datasheet, Pinout, Circuit

Laser Drivers Laser Driver For Projectors This article will unlock more details about the MAX3600A, a laser driver for projects.

107

Aug 27, 2021

Harold Betsy

Laser Drivers Laser Driver For Projectors

This article will unlock more details about the MAX3600A, a laser driver for projects.

MAX3600ACTL T

Inquiry
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

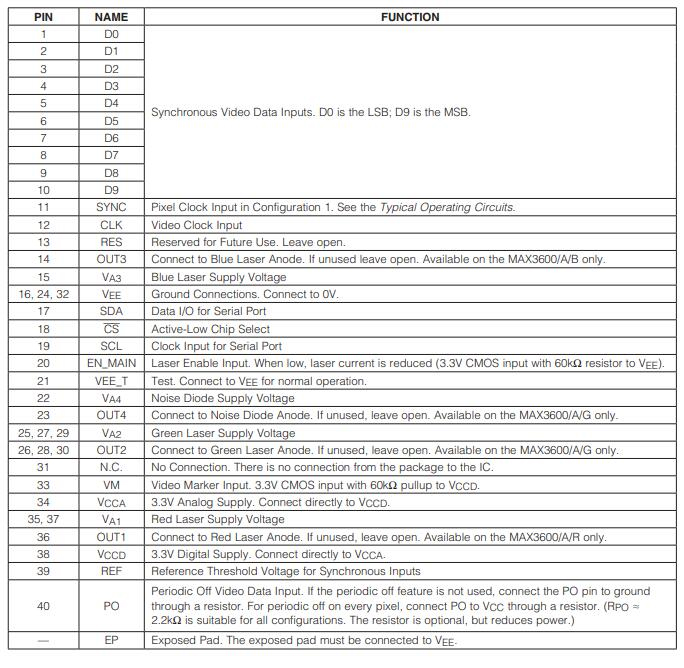

MAX3600A Pinout

MAX3600A CAD Model

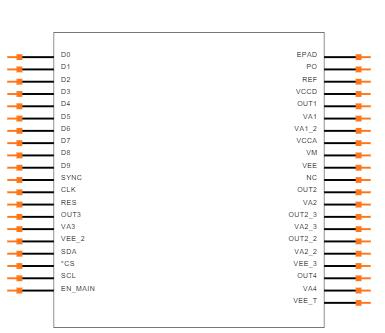

Symbol

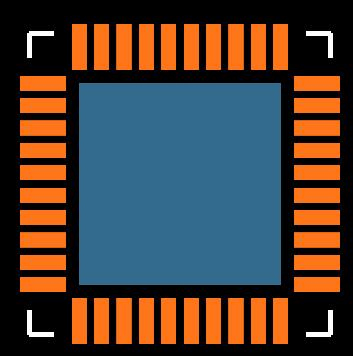

Footprint

MAX3600A Description

The MAX3600A laser driver for projectors supports video imaging with red, blue, and green lasers. Each output includes a 10-bit video digital-to-analogue converter (DAC) with programmable gain and offset. The MAX3600A guarantees higher full-scale output currents than the MAX3600 and is recommended for new designs.



Specifications

Maxim Integrated MAX3600ACTL+T technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3600ACTL+T.

MAX3600ACTL T Tech Specifications

Maxim Integrated MAX3600ACTL T technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated MAX3600ACTL T.

Product Attribute Attribute Value
MountSurface Mount
Mounting TypeSurface Mount
Package / Case40-WFQFN Exposed Pad
Number of Pins40Pins
Operating Temperature0°C~70°C
PackagingTape & Reel (TR)
Product Attribute Attribute Value
Published2012
JESD-609 Codee3
Pbfree Codeyes
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
TypeLaser Diode Driver
Product Attribute Attribute Value
Terminal FinishMatte Tin (Sn)
Voltage - Supply3.3V
Base Part NumberMAX3600
Number of Channels4Channels
Radiation HardeningNo
RoHS StatusROHS3 Compliant
0 Products View Similar

MAX3600A Features

  • Integrates Four Current-Output Laser Drivers

  • Compatible with Red, Blue, and Green Lasers

  • 10-Bit Video DACs, fCLK = 1MHz to 160MHz

  • 8-Bit Gain and Offset DACs

  • 2ns Output Switching Time

  • Serial Port Control

  • Laser Enable

  • Random-Noise Generator and Periodic Off

  • 5mm x 5mm, 40-Pin TQFN Package (0.4mm Pitch)



MAX3600A Functional Block Diagram

The laser driver for projectors supports video imaging with red, blue, and green lasers. Each output includes a 10-bit video DAC with programmable gain and offset. OUTPUT1, OUTPUT2, and OUTPUT3 support operation with red, green, and blue lasers. OUTPUT4 and the PRBS generator provide noise as required for certain synthetic green lasers.

The functional Block Diagram is shown below.

MAX3600A Application

  • RGB Pico Laser Projector

  • Up to WXGA and 1080p Resolution Projectors

  • Monochrome Blue, Green, or Red Pico Laser Projector

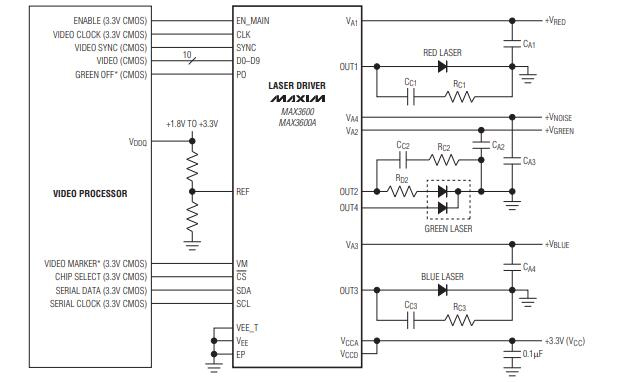

MAX3600A Typical Operating Circuit

MAX3600A Test Circuit

MAX3600A Manufacturer

At Maxim Integrated, we’re solving engineering problems and empowering design innovation, enabling our customers to create products that shape our world. Our innovative and high-performance analog and mixed-signal products and technologies make systems smaller and smarter, with enhanced security and increased energy efficiency.

Datasheet PDF

Download datasheets and manufacturer documentation for Maxim Integrated MAX3600ACTL+T.

MAX3600ACTL T Documents

Download datasheets and manufacturer documentation for MAX3600ACTL T

Frequently Asked Questions

What is the MAX3600A?
The MAX3600A laser driver for projectors supports video imaging with red, blue, and green lasers. Each output includes a 10-bit video digital-to-analogue converter (DAC) with programmable gain and offset. The MAX3600A guarantees higher full-scale output currents than the MAX3600 and is recommended for new designs.
How many pins does the MAX3600A have?
It has 40 pins.
What package is the MAX3600A available in?
The MAX3600A is available in a 5mm x 5mm, 40-Pin TQFN Package (0.4mm Pitch).
FAQ
What is the MAX3600A?
The MAX3600A laser driver for projectors supports video imaging with red, blue, and green lasers. Each output includes a 10-bit video digital-to-analogue converter (DAC) with programmable gain and offset. The MAX3600A guarantees higher full-scale output currents than the MAX3600 and is recommended for new designs.
How many pins does the MAX3600A have?
It has 40 pins.
What package is the MAX3600A available in?
The MAX3600A is available in a 5mm x 5mm, 40-Pin TQFN Package (0.4mm Pitch).
