Breadboard Power Supply Module 3.3V 5V MB102
BRIDGE RECT 1PHASE 200V 10A BR-6
The 3.3V/5V output MB102 Breadboard power supply module is easy to use, most useful breadboard component that can be added with any breadboard related projects where 5V, 3.3V or both power requirements are required. This article mainly introduces pinout, features, datasheet and other detailed information about Micro Commercial Components MB102.
MB102-BP
The 3.3V/5V output MB102 Breadboard power supply module is easy to use, most useful breadboard component that can be added with any breadboard related projects where 5V, 3.3V or both power requirements are required.
Its ease of use allows users to connect any DC power supply unit that has 6.5-12 VDC power output from a barrel jack. The board has two independent channels of power output for breadboards. These power channels can be independently configured for 3.3V, 0V, and 5V operations.
Symbol
Footprint
3D Model
• Mounting Hole For #6 Screw
• Any Mounting Position
• Surge Rating Of 150 Amps
• Epoxy meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
• Lead Free Finish/RoHS Compliant (NOTE 1)("P" Suffix Designates RoHS Compliant. See Ordering Information)
Micro Commercial Co MB102-BP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co MB102-BP.
Micro Commercial Co MB102-BP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co MB102-BP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |

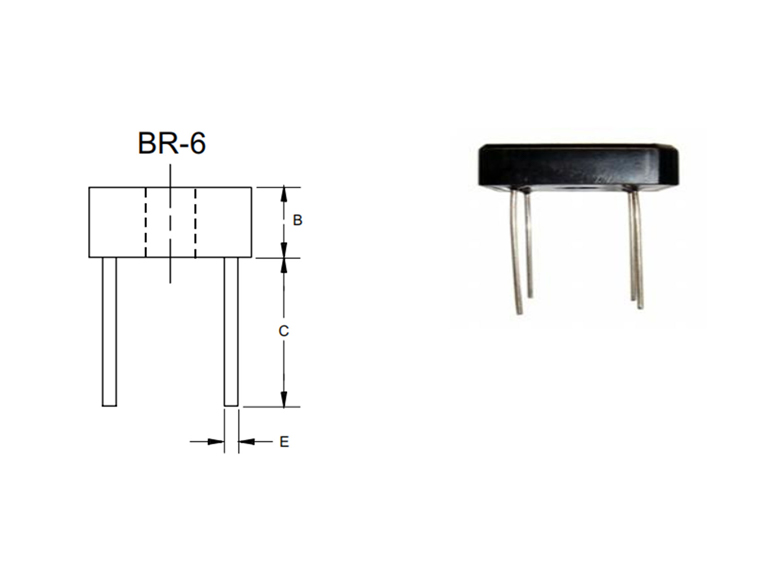

| Package / Case | 4-Square, BR-6 | |
| Surface Mount | NO | |
| Diode Element Material | SILICON | |
| Number of Elements | 4 Elements | |
| Operating Temperature | -55°C~125°C TJ | |
| Packaging | Bulk | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 4Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Additional Feature | UL RECOGNIZED | |
| HTS Code | 8541.10.00.80 | |
| Terminal Position | UPPER | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | MB102 | |
| Pin Count | 4 | |
| JESD-30 Code | S-XUFM-W4 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Qualification Status | Not Qualified | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Type | Single Phase | |
| Current - Reverse Leakage @ Vr | 10μA @ 200V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 5A | |
| Output Current-Max | 10A | |
| Current - Average Rectified (Io) | 10A | |
| Number of Phases | 1Phase | |
| Non-rep Pk Forward Current-Max | 150A | |
| Voltage - Peak Reverse (Max) | 200V | |
| RoHS Status | RoHS Compliant |
• Maximum Mounting Torque: 4.5 In-lbs.
• UL Recognized File # E165989
• Operating Temperature: -55°C to +125°C
• Storage Temperature: -55°C to +150°C
• Maximum Thermal Resistance: 5oC/W Junction To Case
| Part Number | Description | Manufacturer |
| MP1002DIODES | Bridge Rectifier Diode, 10A, 200V V(RRM), | Galaxy Microelectronics |
| MP1002(W)DIODES | Bridge Rectifier Diode, 10A, 200V V(RRM), | Galaxy Semi-Conductor Co Ltd |
| KBPC1002(W)DIODES | Bridge Rectifier Diode, 10A, 200V V(RRM), | Galaxy Microelectronics |
| KBPC1002DIODES | Rectifier Diode | Cheng-Yi Electronic Co Ltd |
• Connect the input power supply either regulated or unregulated to the DC input jack.
• Turn on the switch to check the LED.
• If the module is energized, the LED lights up.
• Adjust the jumper to the desired output voltage.
Founded in 1991, Micro Commercial Components Corp. (MCC) is a manufacturer of high-quality discrete semiconductors for the consumer market. MCC's products include components, economizers, granularities, MOSFETs, voltage regulators and protective equipment.
Download datasheets and manufacturer documentation for Micro Commercial Co MB102-BP.
Download datasheets and manufacturer documentation for MB102-BP
