Transistors - Bipolar (BJT) - Arrays ON SEMICONDUCTOR MC1413BPG DARLINGTON TRANSISTOR ARRAY, NPN, 7, 50V, DIP

91

Nov 15, 2021

Lou Middleton

Transistors - Bipolar (BJT) - Arrays ON SEMICONDUCTOR MC1413BPG DARLINGTON TRANSISTOR ARRAY, NPN, 7, 50V, DIP

The MC1413, B with a 2.7 k series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic. This article will unlock more details about MC1413. There is a huge of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!

MC1413BPG

87800In Stock
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

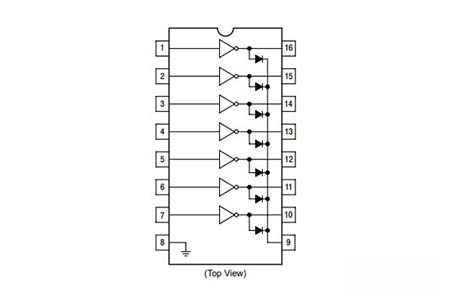

MC1413 Pinout

MC1413 Pinout



Pin No

Pin Name

Description

1

IN 1

Input Pin 1

2

IN 2

Input Pin 2

3

IN 3

Input Pin 3

4

IN 4

Input Pin 4

5

IN 5

Input Pin 5

6

IN 6

Input Pin 6

7

IN 7

Input Pin 7

8

GND

Ground Pin

9

COMMON

Common Pin

10

OUT 7

Output Pin 7

11

OUT 6

Output Pin 6

12

OUT 5

Output Pin 5

13

OUT 4

Output Pin 4

14

OUT 3

Output Pin 3

15

OUT 2

Output Pin 2

16

OUT 1

Output Pin 1

MC1413 CAD Model

MC1413 Symbol



MC1413 Footprint



MC1413 3D Model

MC1413 Description

In a number of industrial and consumer applications, the MC1413 Darlington linked transistors in these arrays are well suited for operating lighting, relays, or printing hammers. Their high breakdown voltage and internal suppression diodes ensure that they are free of inductive load concerns. They can drive incandescent bulbs with peak inrush currents of 500 mA.

The MC1413, B with a 2.7 k series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.

MC1413 Feature

  • High breakdown voltage

  • TTL or  CMOS Logic  is 5.0 V

  • Peak inrush currents up to 500 mA

  • NCV Prefix for Automotive and Requiring Site and Control Changes

  • Pb−Free Packages are Available



MC1413 Application

  • Industrial and consumer applications

  • Driving lamps

  • Relays

  • Printer hammers

MC1413 Schematic

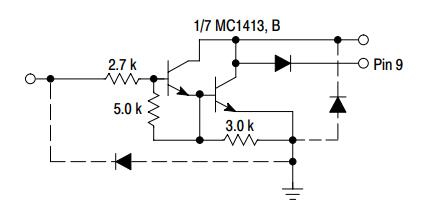

MC1413  Representative Schematic Diagram

Specifications

ON Semiconductor MC1413BPG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC1413BPG.

MC1413BPG Tech Specifications

ON Semiconductor MC1413BPG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC1413BPG.

Product Attribute Attribute Value
Lifecycle StatusLAST SHIPMENTS (Last Updated: 2 days ago)
Factory Lead Time2 Weeks
Contact PlatingTin
MountThrough Hole
Mounting TypeThrough Hole
Package / Case16-DIP (0.300, 7.62mm)
Number of Pins16Pins
Weight1.627801g
Transistor Element MaterialSILICON
Collector-Emitter Breakdown Voltage50V
Collector-Emitter Saturation Voltage1.6V
Number of Elements7 Elements
hFEMin1000
Operating Temperature150°C TJ
PackagingTube
Published2006
Product Attribute Attribute Value
JESD-609 Codee3
Pbfree Codeyes
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations16Terminations
ECCN CodeEAR99
Additional FeatureLOGIC LEVEL COMPATIBLE
Terminal PositionDUAL
Peak Reflow Temperature (Cel)260
Current Rating500mA
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberMC1413B
Pin Count16
Output Voltage50V
PolarityNPN
ConfigurationCOMPLEX
Product Attribute Attribute Value
Output Current500mA
Transistor ApplicationSWITCHING
Halogen FreeHalogen Free
Transistor Type7 NPN Darlington
Collector Emitter Voltage (VCEO)50V
Max Collector Current500mA
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 350mA 2V
Vce Saturation (Max) @ Ib, Ic1.6V @ 500μA, 350mA
Height3.43mm
Length19.55mm
Width6.85mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusRoHS Compliant
Lead FreeLead Free
0 Products View Similar

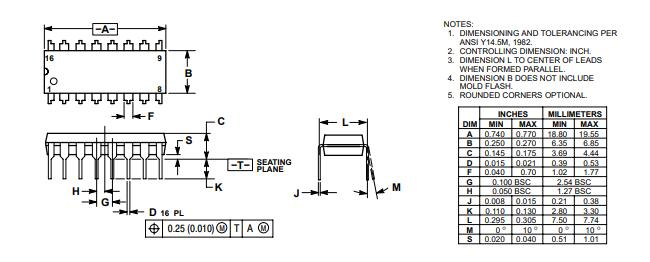

MC1413 Package
