The MC1455 monolithic timing circuit is a highly stable controller capable of producing accurate time delays or oscillation. This article will unlock more details about MC1455. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
MC1455P1G

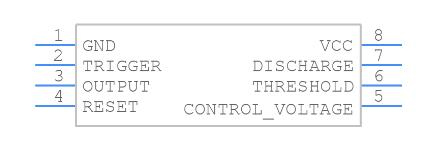

MC1455 Pinout
MC1455 Symbol
MC1455 Footprint
MC1455 3D Model
The MC1455 monolithic timing circuit is a highly stable controller capable of producing accurate time delays or oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode, time is precisely controlled by one external resistor and capacitor. For astable operation as an oscillator, the free−running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200 mA or drive TTL circuits.
• Direct Replacement for NE555 Timers
• Timing from Microseconds through Hours
• Operates in Both Astable and Monostable Modes
• Adjustable Duty Cycle
• High Current Output Can Source or Sink 200 mA
• Output Can Drive TTL
• Temperature Stability of 0.005% per °C
• Normally ON or Normally OFF Output
• Pb−Free Packages are Available
Precision Timing
Pulse generation
Sequential timing
Time delay generation
Pulse width modulation
Pulse position modulation
Missing Pulse Detector
MC1455 Schematic

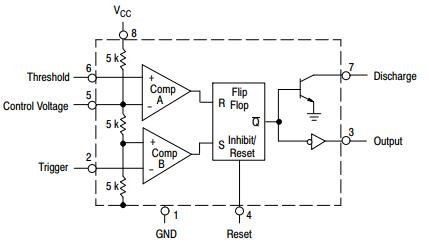

MC1455 Block Diagram
ON Semiconductor MC1455P1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC1455P1G.
ON Semiconductor MC1455P1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC1455P1G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | OBSOLETE (Last Updated: 2 days ago) | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| Published | 2006 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Type | 555 Type, Timer/Oscillator (Single) | |
| Terminal Finish | Tin (Sn) | |
| Max Power Dissipation | 625mW | |
| Voltage - Supply | 4.5V~16V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 2.54mm | |
| Current Rating | 10A | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | MC1455 | |
| Pin Count | 8 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Min (Vsup) | 4.5V | |
| Operating Supply Current | 10mA | |
| Power Dissipation | 625mW | |
| Number of Timers/Counters | 1Timers/Counter | |
| High Level Output Current | -200mA | |
| Low Level Output Current | 200mA | |
| Height | 3.429mm | |
| Length | 10.16mm | |
| Width | 6.604mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
MC1455 Package
