The MC1458N is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications.
MC1458N Operational Amplifier: Pinout, Specification, and Datasheet
IC OPAMP GP 2 CIRCUIT 8DIP The MC1458N is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications.
357
Jun 21, 2021
Adam
MC1458N
78900In Stock
Min.: 1 Mult.: 1
Quick Links
MC1458N Description
The MC1458N is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifiers, and general feedback applications.
MC1458N Features
• Low power consumption
• Large input voltage range
• No latch-up
• High gain
• Short-circuit protection
• No frequency compensation required
MC1458N Applications
• Summing amplifier
• Voltage follower
• Integrator
• Active filtering
• Function generator
MC1458N Pinout
MC1458N CAD Model
Symbol

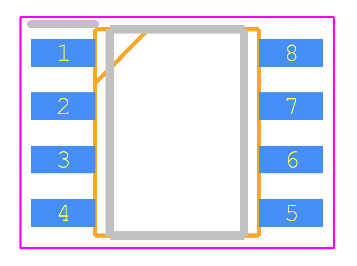

Footprint
3D Model
Specifications
STMicroelectronics MC1458N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics MC1458N.
MC1458N Tech Specifications
MC1458N Tech Specifications
STMicroelectronics MC1458N technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics MC1458N.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 4.535924g | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Base Part Number | MC1458 | |
| Pin Count | 8 | |
| Operating Supply Voltage | 15V | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 2.3mA | |
| Nominal Supply Current | 3.4mA | |
| Power Dissipation | 500mW | |
| Output Current | 25mA | |
| Slew Rate | 0.8V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 30nA | |
| Voltage - Supply, Single/Dual (±) | 5V~30V ±2.5V~15V | |
| Output Current per Channel | 20mA | |
| Input Offset Voltage (Vos) | 5mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Bandwidth | 1MHz | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 1000 kHz | |
| Voltage Gain | 106.02dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 1mV | |
| Bias Current-Max (IIB) @25C | 0.1μA | |
| Height | 3.32mm | |
| Length | 10.92mm | |
| Width | 6.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
MC1458N Schematic Diagram
MC1458N Package
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics MC1458N.
MC1458N Documents
MC1458N Documents
Download datasheets and manufacturer documentation for MC1458N
