Interface - Drivers, Receivers, Transceivers 14-DIP (0.300, 7.62mm) ±15V 0°C~75°C MC1488 14 IC DRIVER QUAD 14DIP
The MC1488 is a monolithic quad line driver designed to interface data terminal equipment with data communications equipment in conformance with the specifications of EIA Standard No. EIA−232D. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MC1488PG

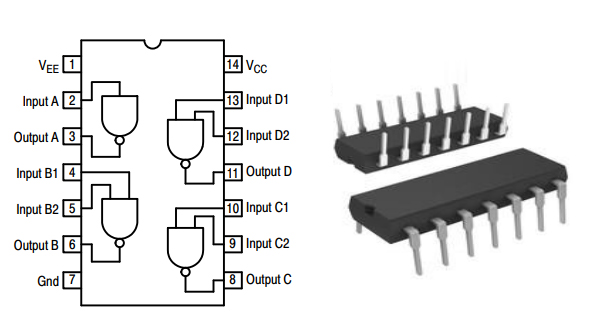

symbol
footprint

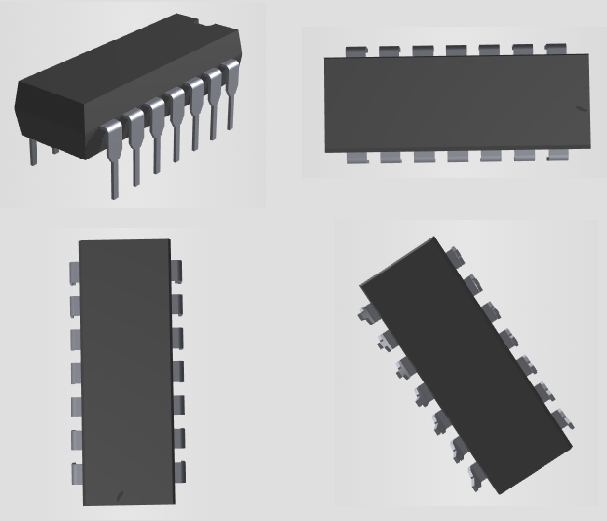

3D Model
The MC1488 is a monolithic quad line driver designed to interface data terminal equipment with data communications equipment in conformance with the specifications of EIA Standard No. EIA−232D. The Electronic Industries Association EIA−232D specification details the requirements for the interface between data processing equipment and data communications equipment. This standard specifies not only the number and type of interface leads, but also the voltage levels to be used. The MC1488 quad driver provides a complete interface system between DTL or TTL logic levels and the EIA−232D defined levels. The EIA−232D requirements as applied to drivers are discussed herein.
The EIA−232D specification further requires that during transitions, the driver output slew rate must not exceed 30 V per microsecond. The inherent slew rate of the MC1488 is much too fast for this requirement. The current limited output of the device can be used to control this slew rate by connecting a capacitor to each driver output. And the MC1488 is an extremely versatile line driver with a myriad of possible applications.
This article provides you with a basic overview of the MC1488, including its pin descriptions, features and specifications, etc., to help you quickly understand what MC1488 is.
• Current Limited Output: ±10 mA typical
• Power−Off Source Impedance: 300 Ω minimum
• Simple Slew Rate Control with External Capacitor
• Flexible Operating Supply Range
• Compatible with All ON Semiconductor DTL and TTL Logic Families
• Pb−Free Packages are Available
ON Semiconductor MC1488PG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC1488PG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 week ago) | |
| Package / Case | 14-DIP (0.300, 7.62mm) | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Number of Pins | 14Pins | |
| Published | 2009 | |
| Packaging | Tube | |
| Operating Temperature | 0°C~75°C | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 | |
| Type | Driver | |
| Terminal Finish | Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | ±15V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 4Functions | |
| Supply Voltage | 9V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | MC1488 | |
| Pin Count | 14 | |
| Qualification Status | Not Qualified | |
| Number of Channels | 4Channels | |
| Interface | RS-232 | |
| Nominal Supply Current | 34mA | |
| Output Current | 10mA | |
| Propagation Delay | 350 ns | |
| Max Output Voltage | 10.5V | |
| Differential Output | NO |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protocol | RS232 | |
| Input Characteristics | GATED | |
| Max Dual Supply Voltage | 9.09V | |
| Number of Drivers/Receivers | 4/0Drivers/Receiver | |
| Min Dual Supply Voltage | 8.91V | |
| Dual Supply Voltage | 9V | |
| Number of Drivers | 1Driver | |
| Negative Supply Voltage-Nom | -9V | |
| Width | 6.6mm | |
| Length | 19.56mm | |
| Height | 3.68mm | |
| RoHS Status | RoHS Compliant | |
| REACH SVHC | No SVHC | |
| Lead Free | Lead Free |
| Model number | Manufacturer | Description |
| SN75188D-00 | Texas Instruments | LINE DRIVER, PDSO14 |
| DS1488N | Rochester Electronics LLC | Line Driver, 4 Func, 4 Driver, BIPolar, PDIP14, PLASTIC, DIP-14 |
| MC1488DR2 | Freescale Semiconductor | IC,LINE DRIVER,4 DRIVER,BIPOLAR,SOP,14PIN,PLASTIC |
| MAX1488ECSD | Maxim Integrated Products | Line Driver, 4 Func, 1 Driver, CMOS, PDSO14, 0.150 INCH, MS-012B, SOIC-14 |
| SN75188N | Texas Instruments | Quadruple Line Driver 14-PDIP 0 to 70 |
| MC14C88BP | Motorola Semiconductor Products | Line Driver, 1 Func, 4 Driver, BIMOS, PDIP14, PLASTIC, DIP-14 |
| DS1488J | Texas Instruments | QUAD LINE DRIVER, CDIP14, CERAMIC, DIP-14 |
| SG1488J | Linfinity Microelectronics | Line Driver/Receiver, 4 Driver, BIPolar, CDIP14, |
| 9616DM | AMD | Line Driver, 3 Func, 1 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 |
| DS14C88J | National Semiconductor Corporation | IC QUAD LINE DRIVER, CDIP14, DIP-14, Line Driver or Receiver |
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for MC1488PG
