ON SEMICONDUCTOR MC33164D-5G IC, MCU RESET MONITOR, 33164, SOIC8
The MC33164 series are undervoltage sensing circuits specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is required. These devices offer the designer an economical solution for low voltage detection with a single external resistor. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MC33164D-5G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.66385 | $0.66 |
| 10+ | $0.62628 | $6.26 |
| 100+ | $0.59083 | $59.08 |
| 500+ | $0.55738 | $278.69 |
| 1000+ | $0.52583 | $525.83 |

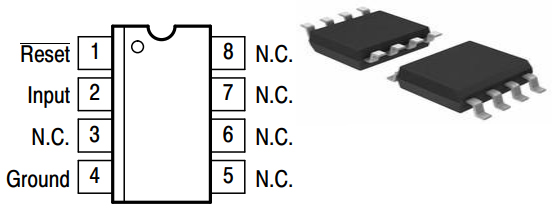

The following figure is the diagram of MC33164 Pinout.
Pinout
The followings are MC33164 Symbol, Footprint, and 3D Model.
PCB Symbol

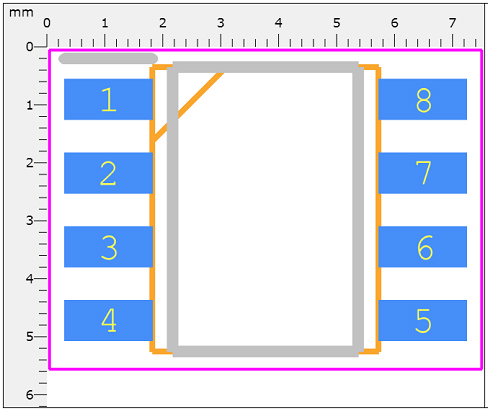

PCB Footprint
3D Model
The MC33164 series are undervoltage sensing circuits specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is required. These devices offer the designer an economical solution for low voltage detection with a single external resistor. The MC33164 series features a bandgap reference, a comparator with precise thresholds and built−in hysteresis to prevent erratic reset operation, an open collector reset output capable of sinking in excess of 6.0 mA, and guaranteed operation down to 1.0 V input with extremely low standby current. The MC devices are packaged in 3−pin TO−92 (TO−226AA), micro size TSOP−5, 8−pin SOIC−8 and Micro8™ surface mount packages.
This article provides you with a basic overview of the MC33164 Micropower Undervoltage Sensing Circuit, including its pin descriptions, features and specifications, etc., to help you quickly understand what MC33164 is.
● Temperature Compensated Reference
● Precise Comparator Thresholds Guaranteed Over Temperature
● Comparator Hysteresis Prevents Erratic Reset
● Reset Output Capable of Sinking in Excess of 6.0 mA
● Internal Clamp Diode for Discharging Delay Capacitor
● Guaranteed Reset Operation With 1.0 V Input
● Extremely Low Standby Current: As Low as 9.0 μA
● Economical TO−92 (TO−226AA), TSOP−5, SOIC−8 and Micro8 Surface Mount Packages
● NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
● These Devices are Pb−Free and are RoHS Compliant
ON Semiconductor MC33164D-5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC33164D-5G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 4 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tube | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | Simple Reset/Power-On Reset | |
| Terminal Finish | Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Power Dissipation | 700mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.4V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | MC33164 | |
| Output | Open Drain or Open Collector | |
| Pin Count | 8 | |
| Output Voltage | 4.45V | |
| Power Supplies | 5V | |
| Number of Channels | 1Channel | |
| Max Supply Voltage | 10V | |
| Min Supply Voltage | 1V | |
| Operating Supply Current | 32μA | |
| Power Dissipation | 700mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Adjustable Threshold | NO | |
| Reset | Active Low | |
| Number of Voltages Monitored | 1 | |
| Halogen Free | Halogen Free | |
| Supply Current-Max (Isup) | 0.05mA | |
| Min Reset Threshold Voltage | 4.15V | |
| Max Reset Threshold Voltage | 4.45V | |
| Threshold Voltage | +4.33V | |
| Undervoltage Threshold | 4.33V | |
| Overvoltage Threshold | 4.45V | |
| Height | 1.5mm | |
| Length | 5mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Block Diagram of MC33164.
Representative Block Diagram
| Model number | Manufacturer | Description |
| MC33164D-5 | Motorola Mobility LLC | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, PLASTIC, SOIC-8 |
| MC33164D-5R2 | Motorola Semiconductor Products | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, PLASTIC, SOIC-8 |
Applications include direct monitoring of the 3.0 V or 5.0 V MPU/logic power supply used in appliance, automotive, consumer, and industrial equipment.
The following diagram shows the MC33164 Package Soldering Footprint.
Soldering Footprint

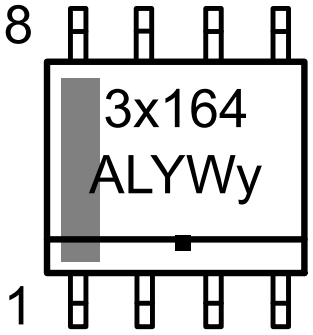

The following is the Marking Diagram of MC33164.
Marking Diagram
